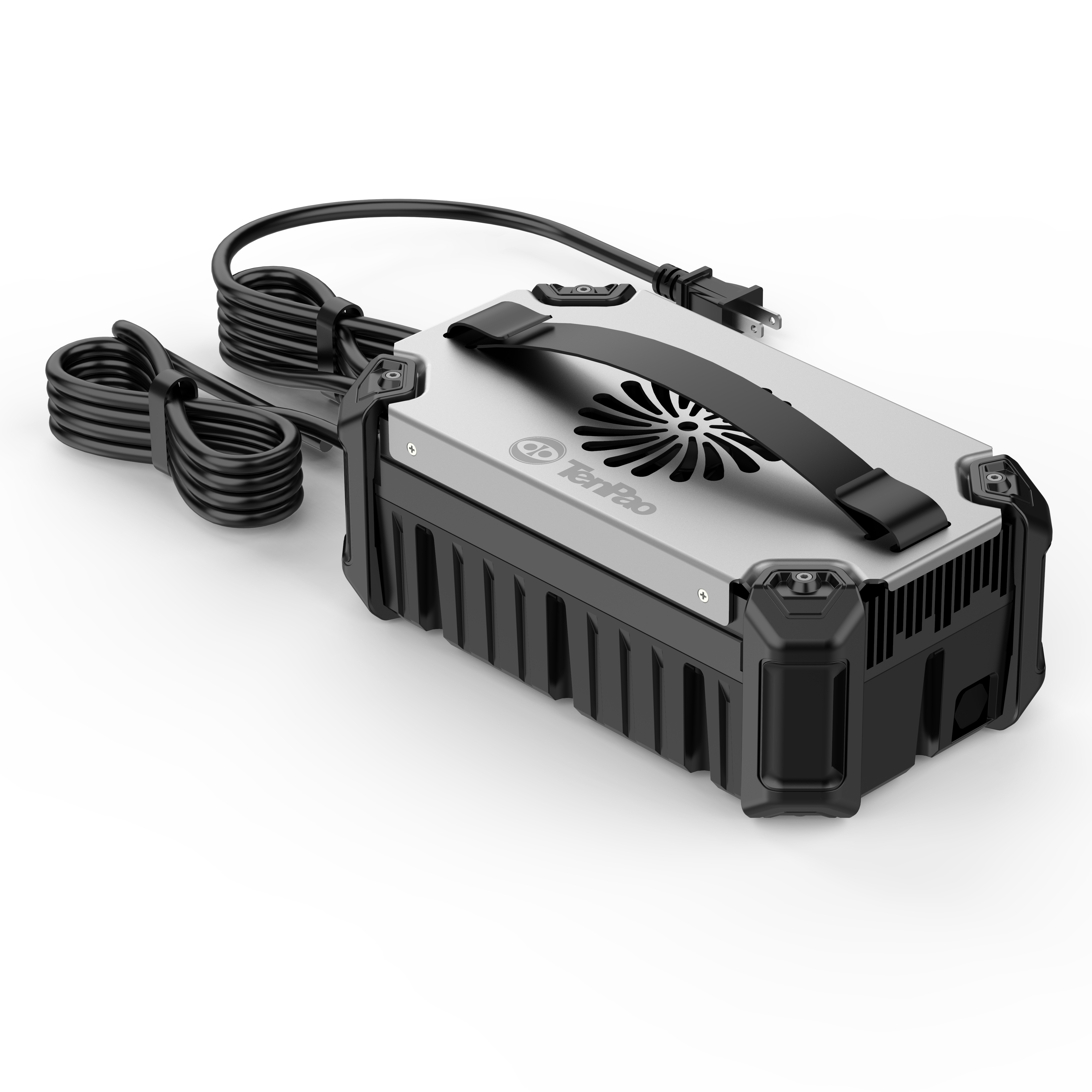

1800W Smart Battery Charger

Ten Pao Int'l Ltd

Enquire

Compare & Bulk Enquire

Brand:

tenpao

Model No.:

1800W Smart Battery Charger

Description

Contact Supplier

Product introduction：

High protection series smart charger adopts the design concept of automobile products, the professional waterproof design does not need to fill glue to reach IP65 protection grade, built-in DSP soft switch and digital communication technology, can quickly respond to control instructions, excellent performance in battery adaptability, can better match the battery charging curve, and achieve a safe and reliable effect.

Main feature：

Intelligent and efficient/Good heat dissipation/Small volume/Easy to carry/Wide range voltage/Flexible upgrade/Digital communication/IP65 Protection

	1800W		unit
AC Input
Input voltage range	90-264		Vac
AC current harmonics THD	<5		%
Power factor	>99
Efficiency	>94		%
Max input current	16		Aac
DC output	Type 1	Type 2
Output rated voltage	60 (optional)	90 (optional)	Vdc
Output voltage range	20-60	30-88	Vdc
Charging current accuracy	≤1	≤1	%
Ripple	≤1200	≤1200	mVp-p
Max charging current	30	20	A
Communication method	CAN/customer protocol，J1772protocol
Dimension	L256W145H96		mm
