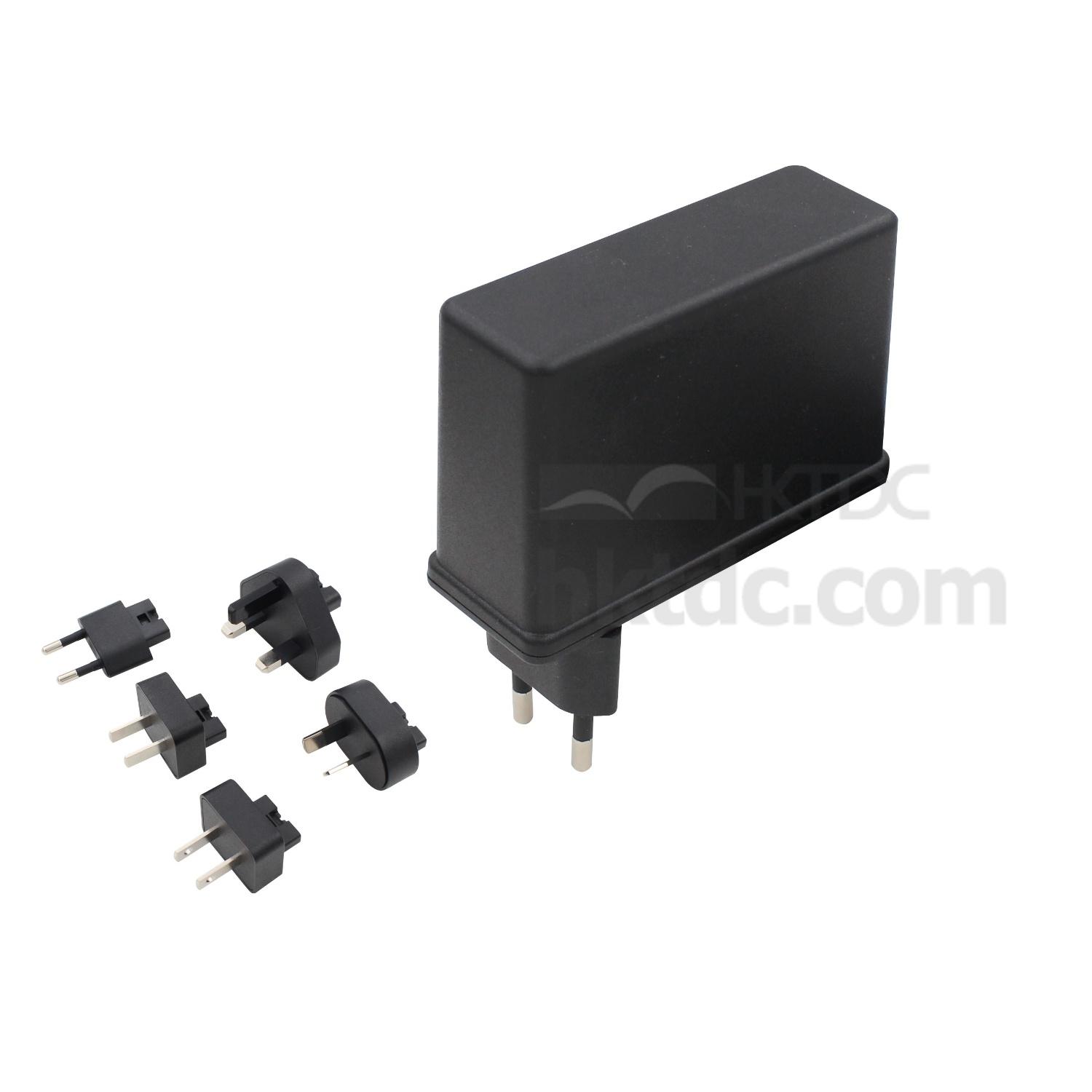

18W IP22 Medical Power Adapter
Model No.:
UES18LCP4-SPA
Brand:
FUHUA
Colour:
Black, White
Size:
90.5(L) x 33.5(W) x 58.5(H) mm
Port:
FOB Hong Kong
Minimum Order Quantity:
1,000 piece(s)
Package:
Yes
Customised:
Yes
Output Voltage:
5.0-24.0
Input Voltage:
90 - 264VAC
Output Frequency:
47-63Hz
Output Power:
18W
Output Current:
0.01-3.0A
Output Type:
Single
Place of Origin:
Mainland China
重量:
160g
Description
Contact Supplier
Description
Product feature
- Wide range of AC input voltage: 90 - 264V AC
- Protections against: short circuit/over current/over voltage
- IP22 Meet IEC/EN60601-1-11
- Meet standard 2MOPP of medical devices
- Meet requirement of Energy Star Level VI CoC-V5 Tier2
- Meet 4KV surge immunity IEC/EN61000-4-5
- With interchangeable AC plugs, worldwide application
- Input voltage: 90-264V AC
- Input current : 500mA
- Output voltage range: ±5%
- Standby power: 0.075W
- Average efficiency: CoC-V5 Tier2.
- Reliability: at 25°C ambient temperature, maximum load work 100,000 hours MTBF (according to MIL - HDBK - 217 standard)
- Machinery specification: 90.5 x 33.5 x58.5mm
- Operating temperature: 0 - 45°C
- Storage temperature: -20 - 60°C
- Humidity enrichment conditions, humidity: 10-90%
- Medical: CB/IEC60601/IEC60601-1-11, UL/ES60601, TUV/EN60601/EN60601-1-11
- ITE: CB/IEC62368, UL/UL62368, AS/NZS62368, TUV/EN62368
- Applications: medical devices, ITE devices
