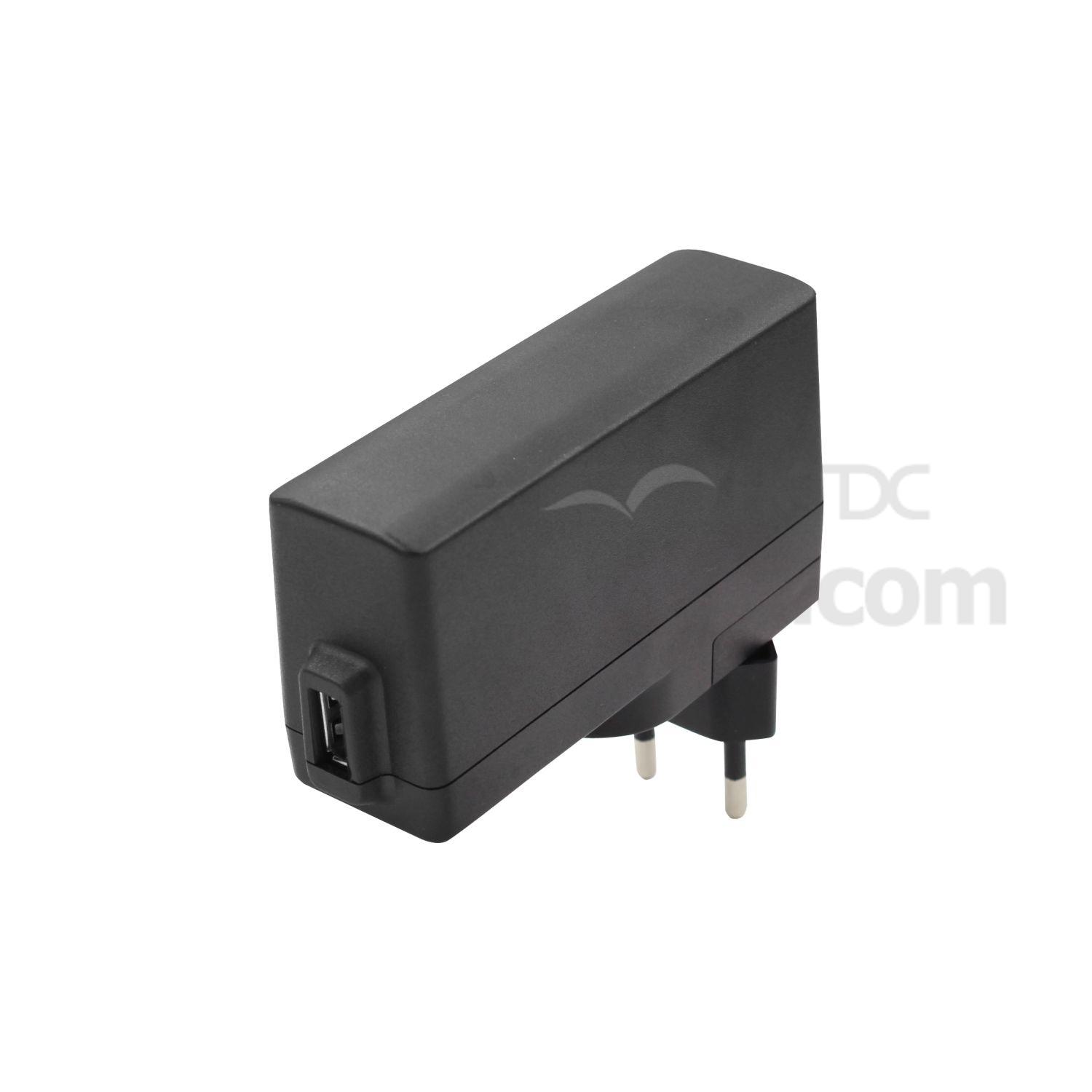

18W USB Medical Power Adapter
Model No.:
UES18LCPU-SPA
Brand:
FUHUA
Colour:
Black, White
Size:
101.5(L) x 30(W) x 57(H)mm
Port:
FOB Hong Kong
Minimum Order Quantity:
1,000 piece(s)
Package:
Yes
Customised:
Yes
Output Voltage:
5.0
Input Voltage:
90 - 264VAC
Output Frequency:
47-63Hz
Output Power:
18W
Output Current:
3.0A
Output Type:
Single
Place of Origin:
Mainland China
Description
Contact Supplier
Description
Product Features
Technical Data
Environmental Requirements
Safety Approvals
Mechanical Details
Applications:
- Medical & ITE safety approvals
- 2MOPP input to output isolation
- Suitable for medical equipment up to class BF(∧)
- Low Leakage current≤100μA
- DOE efficiency level VI
- CoC V5 Tier 2(2016)
- Standby power ≤0.075W
- 5V outputs, up to 15W
- Interchangeable AC plugs
- Protections against: short circuit/over current/ over voltage
Technical Data
- Input Voltage:90~264VAC
- Input Current:0.5A
- Standby Power: 0.075W
- Output voltage range:±5%
Environmental Requirements
- Operating Temperature: 0~45℃
- Storage Temperature:- 20~60℃
- Operating Humidity:10~90%
- Storage Humidity: 5~90%
- Operating Altitude: Up to 5,000 M operating altitude
Safety Approvals
- Medical: CB/IEC60601, UL/ES60601, TUV/EN60601
- ITE: CB/IEC60950,IEC62368, UL/UL62368, TUV/EN62368, CCC-GB4943
Mechanical Details
- 101.5(L) x 30(W) x 57(H)mm
Applications:
- Medical Device and ITE Equipment
