19mm LED Push Button Switch | Parts, Components & Electrical Supplies

Yueqing Aibeiken Electric Co., Ltd.

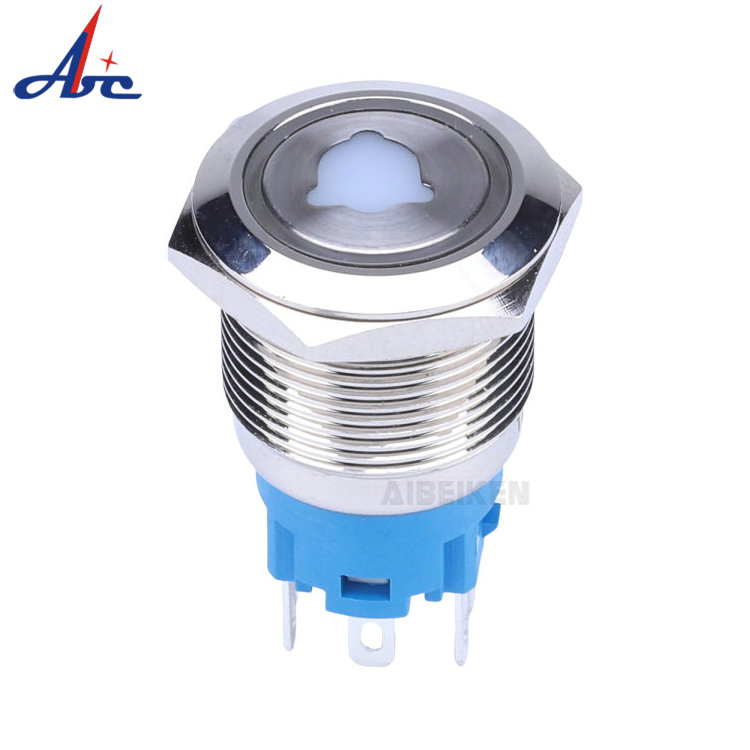

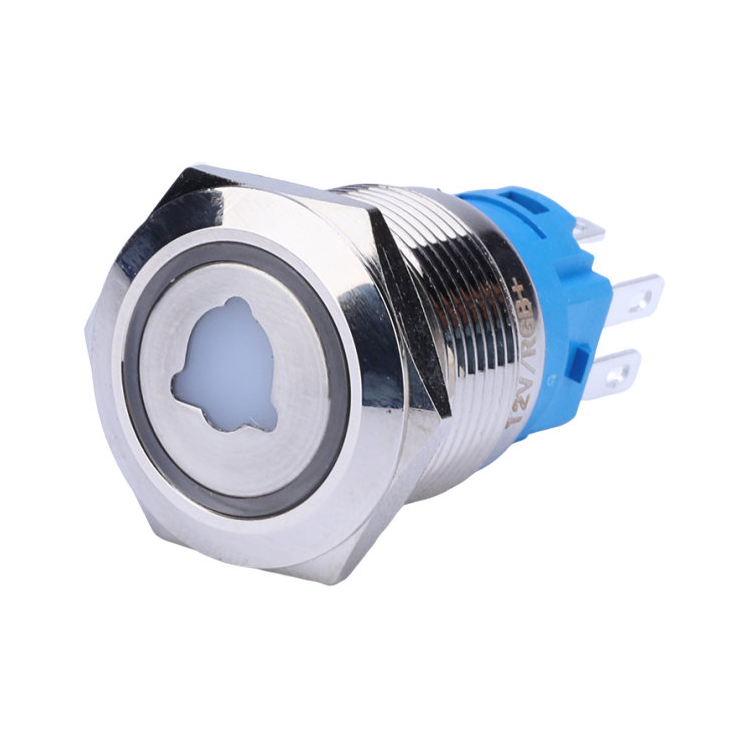

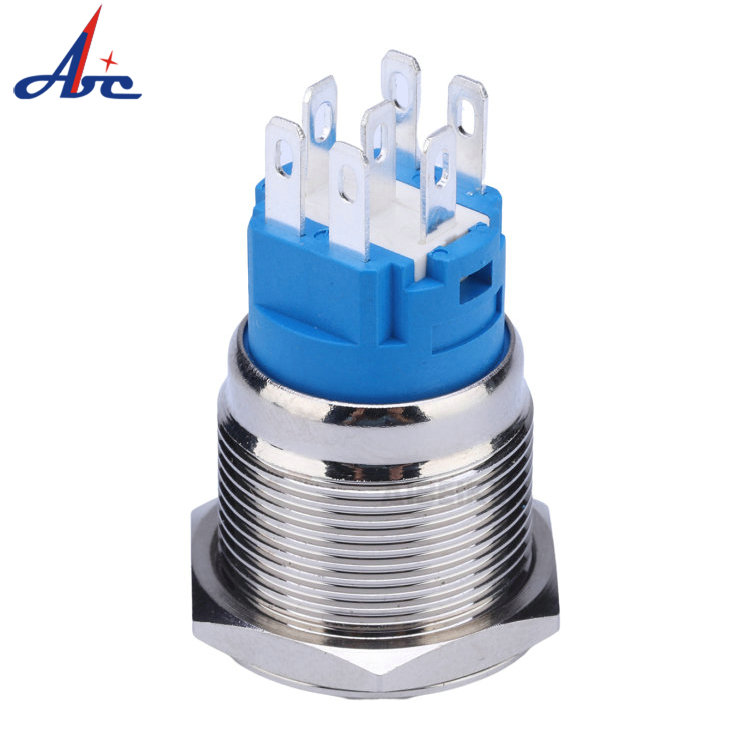

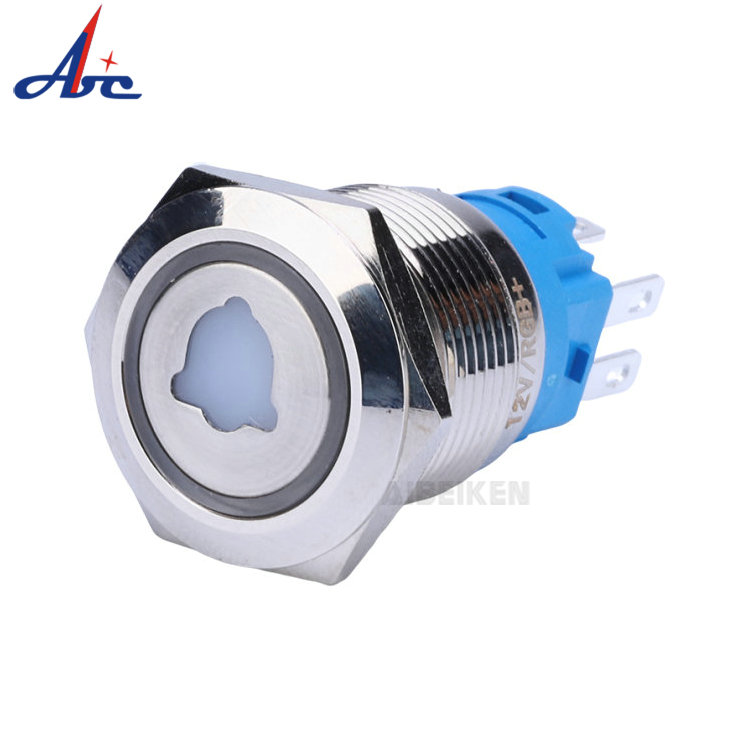

19mm LED Push Button Switch

Production Lead Time:

7 day(s)

Model No.:

IB19E-P11-ERGB

Brand:

ABILKEEN

Colour:

Red, Yellow, Blue, White, Green, Black

Size:

19mm mounting hole size

Max. Voltage:

250VAC

Operating Temperature:

-20-+55

Max. Current:

3A/5A

Mechanical Life:

500,000 cycles

Protection Level:

IP65 / IP67

Description

Contact Supplier

Operating Temperature:-20-+55
Protection Level: IP65 / IP67
Max. Voltage: 250VAC
Max. Current:3A/5A
Mechanical Life:500,000 cycles
switch: Push & Hold,ON; Release,OFF
The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it
Great for electromagnetic starter, relay, Horn Button Switch, PC Power Switch or any circuit controls
With a wire connector (not included), you don't need to solder the terminals, made installing the switch pain free
IP67, IK08 protection can be used in wet or dusty environment
Tri-color led
Common Positive or Common Negative
