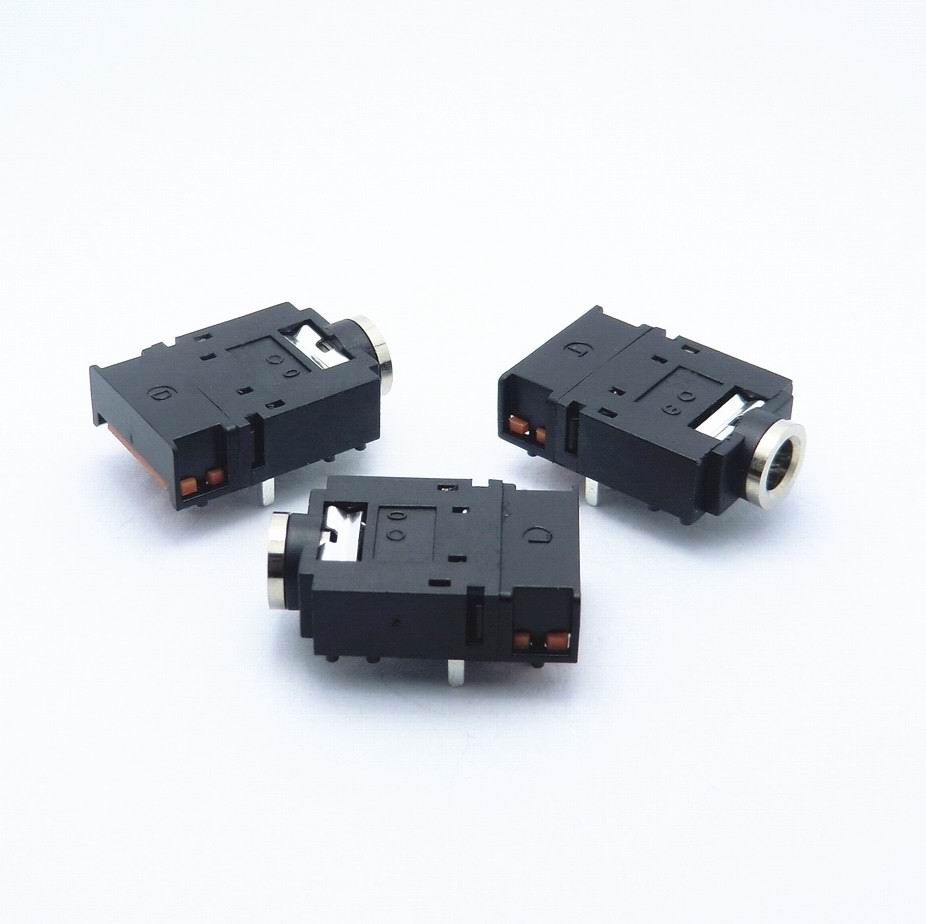

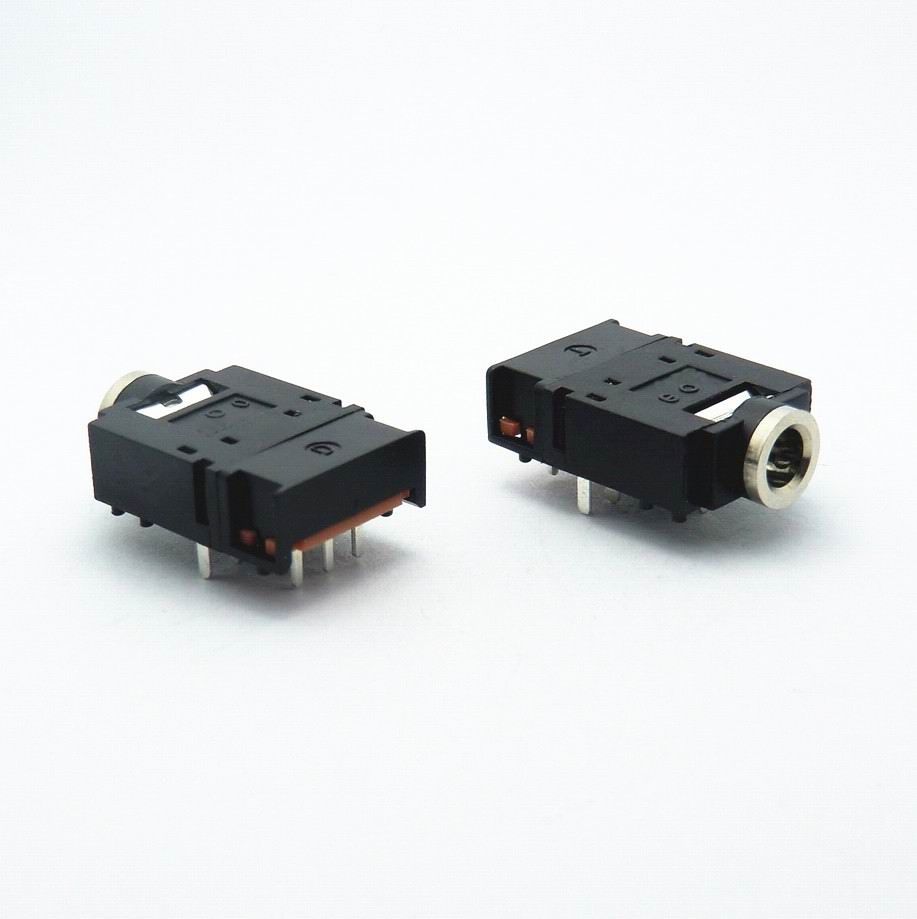

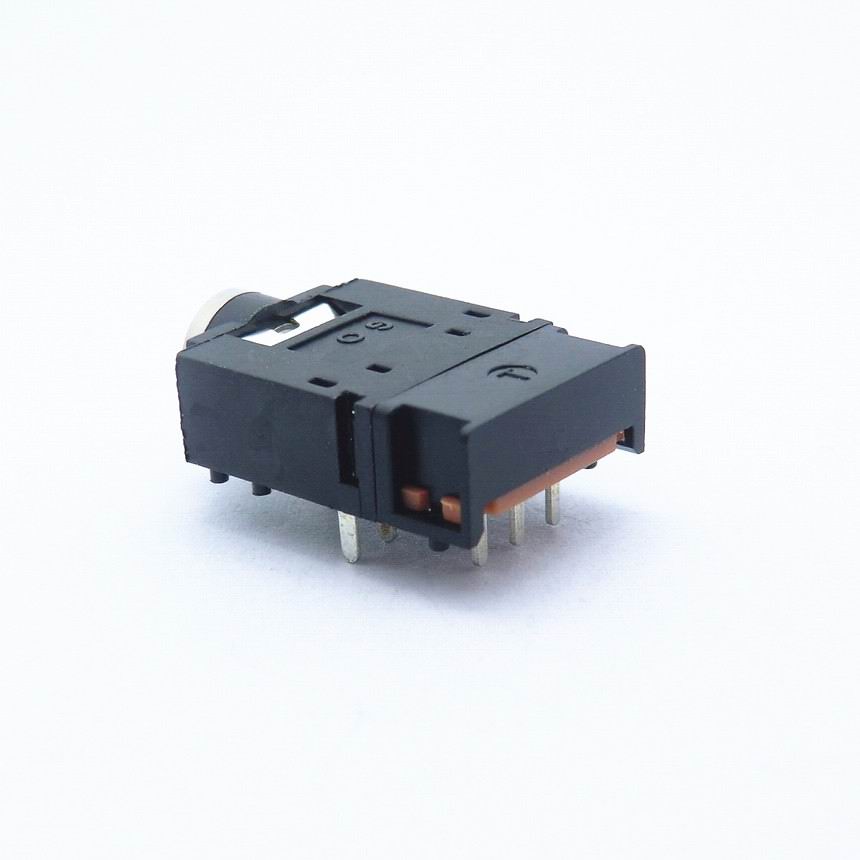

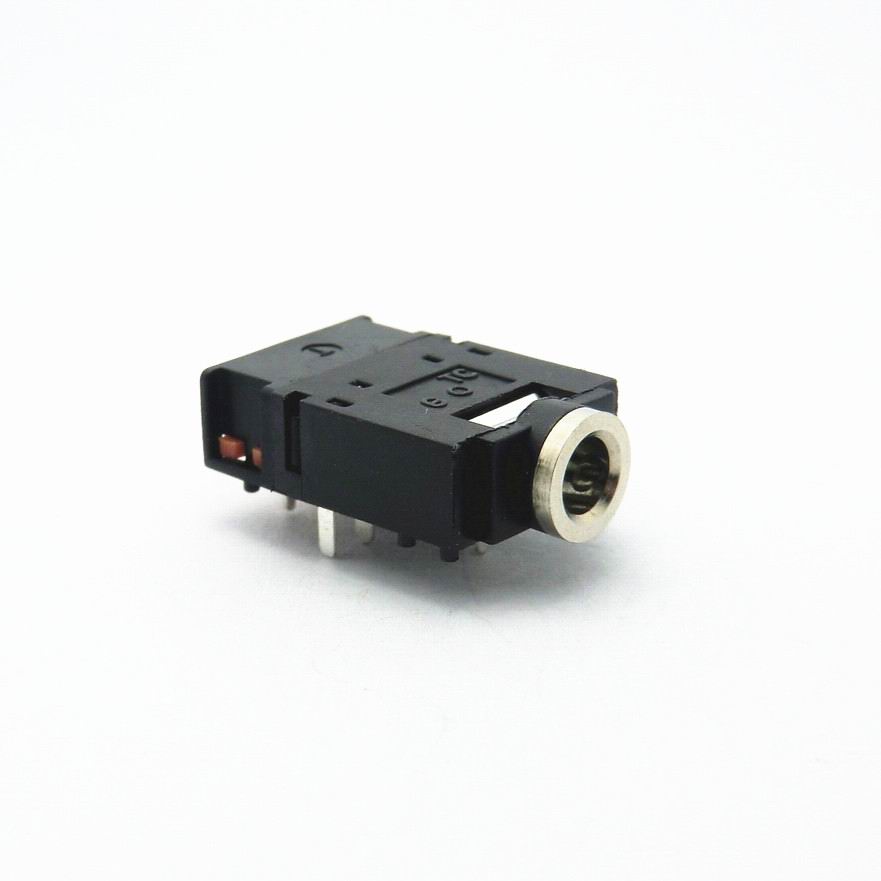

1P2T PHONE JACK

US $0.05 - US $0.06

Production Lead Time:

15 day(s)

Shipping Method:

EXW

Brand:

Customised:

Yes

Model No.:

ST-212-SW12D01

Size:

19.1*12.0*5.0

Application:

Power tool,Communication equipment,Medical device industry,The electronic toy industry

Port:

Shenzhen or HK

Payment method:

T/T

Minimal order size:

10k Piece(s)

Description

Contact Supplier

ITEM	PERFORMANCE
Title	PHONE JACK
Model	ST-212-SW12D01
Rating	0.3A 30V DC
Function	1P2T
Timing	Non-shorting / Shorting
ContactResistance(mohms)	100mΩ max
Insulation Resistanc(Mohms)	100mΩ min at 500V DC
Dielectric Strength(V)	AC 500V for 1 min
LifeTest	5000 Cycles
