• Model: ASL160D40H4LED50G
• Angle: 50°
• Material: PMMA Lens + PC Cover
• Transmittance: >90%
• LED Applications: 3030''5630''5050

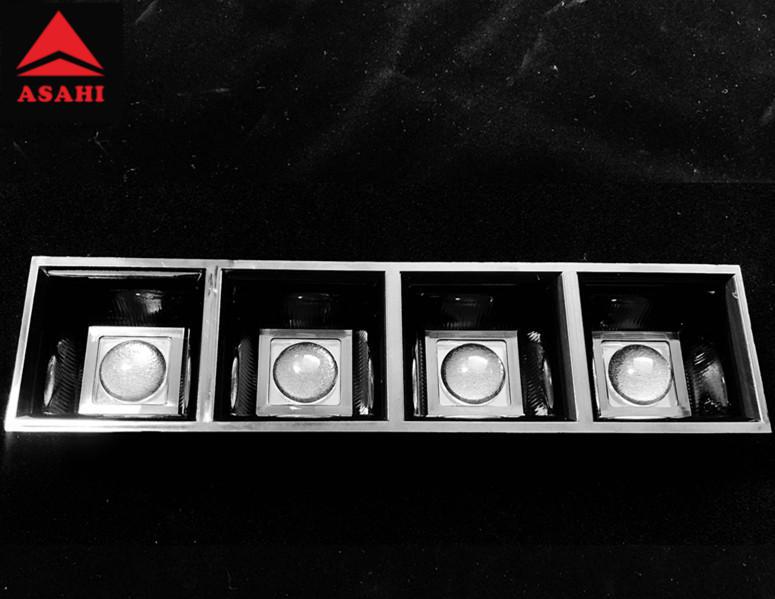

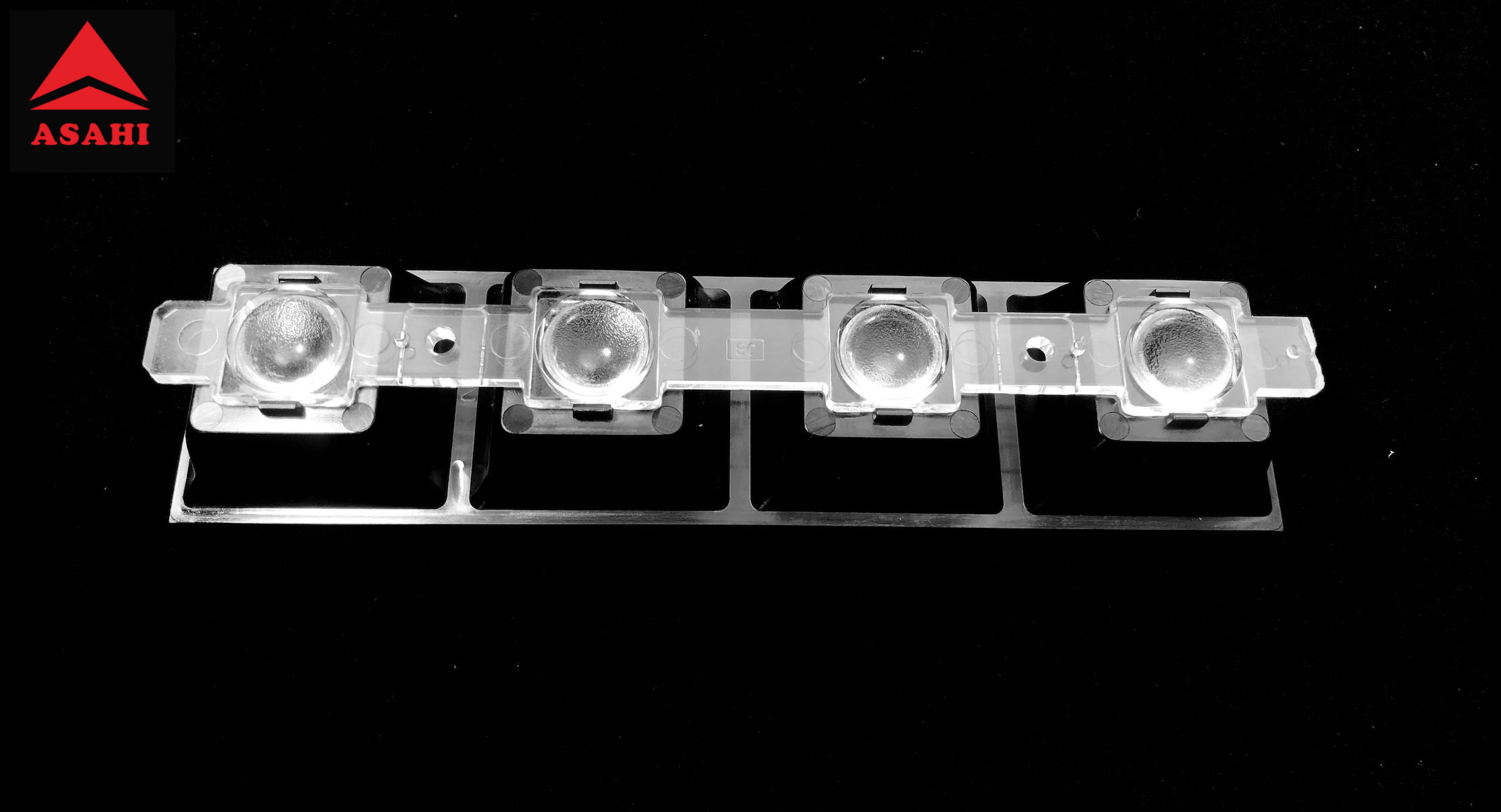

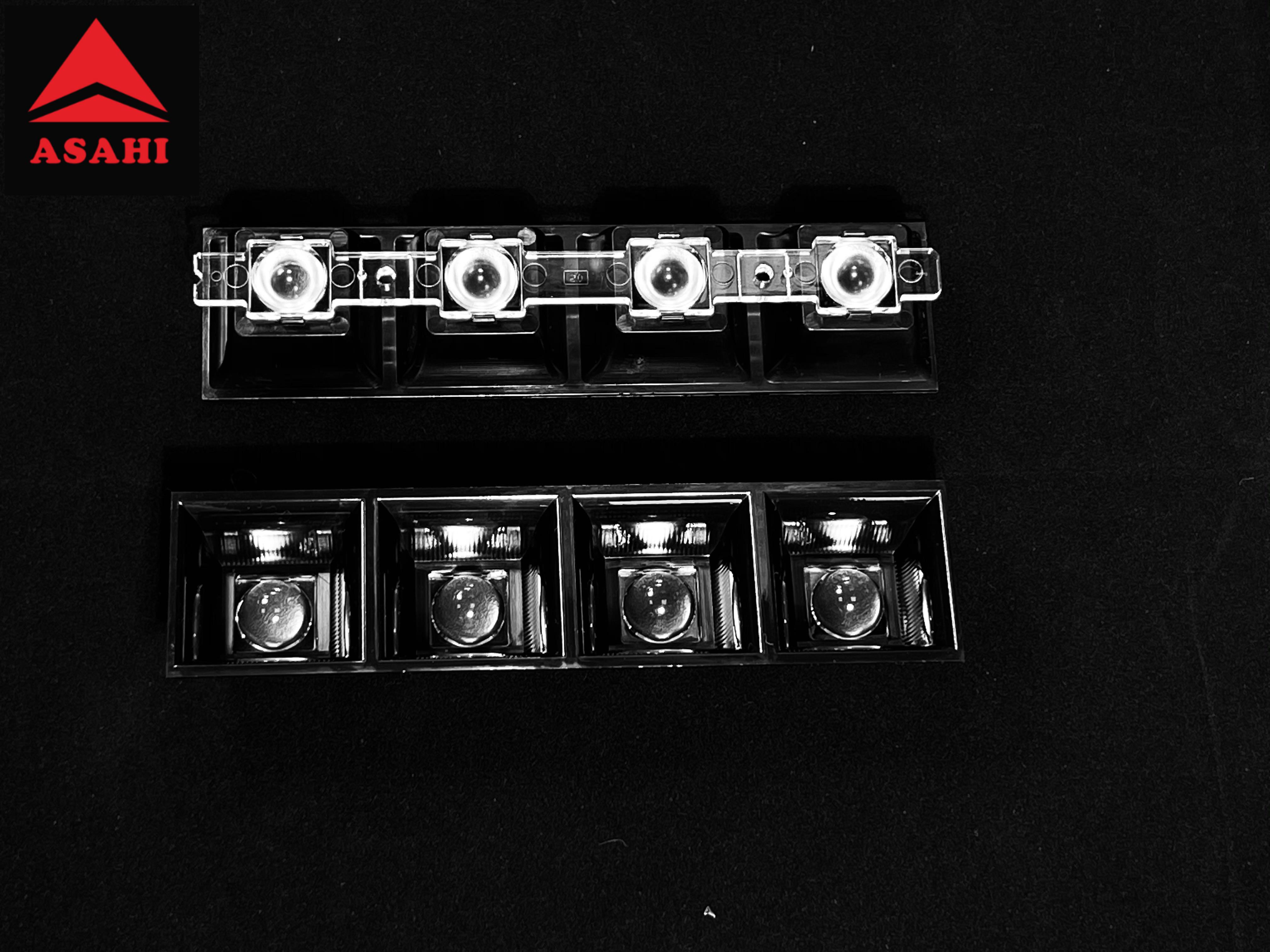

• The 1X4 linear lens array is designed with the optical grill for better UGR and anti-glare control.
• For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
• The optical design is also compatible with different LED sizes from 2835, 3030 LEDs up to 5630, 5050 LEDs.
• The 1x4 linear lens can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
• The 1X4 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.
• For more details, please check our website.

Our Services

• Innovative in LED Optical Engineering and Manufacturing Services
• Quick response (Quick-turn of new development)
• Strong R&D Team (Excellent engineering team with 10 years of experience), committed to bringing our customers the best LED optical designs.
• Production (Advanced equipment, Tooling dimensional accuracy is within 0.01mm, Optical finishing accuracy is within 0.001mm, Tolling lifetime can reach 500,000 shots.)
• Marketing (Wide range of products)
• One-stop service for private mold optics design, and mass production.
• Services (Thorough and satisfactory before & after-sales service)
