2.1 inch 480*480 Round Screen Amorphous Silicon Color TFT Panel LCD Module
US $1.47 - US $3.00
Production Lead Time:
25-45 day(s)
Shipping Method:
Support Express · Sea freight · Land freight · Air freight
Model No.:
MTZ021GFF01ASV02AV1
Brand:
Microtech-lcd
Customised:
Yes
Size:
2.1inch
Description
Contact Supplier
Description

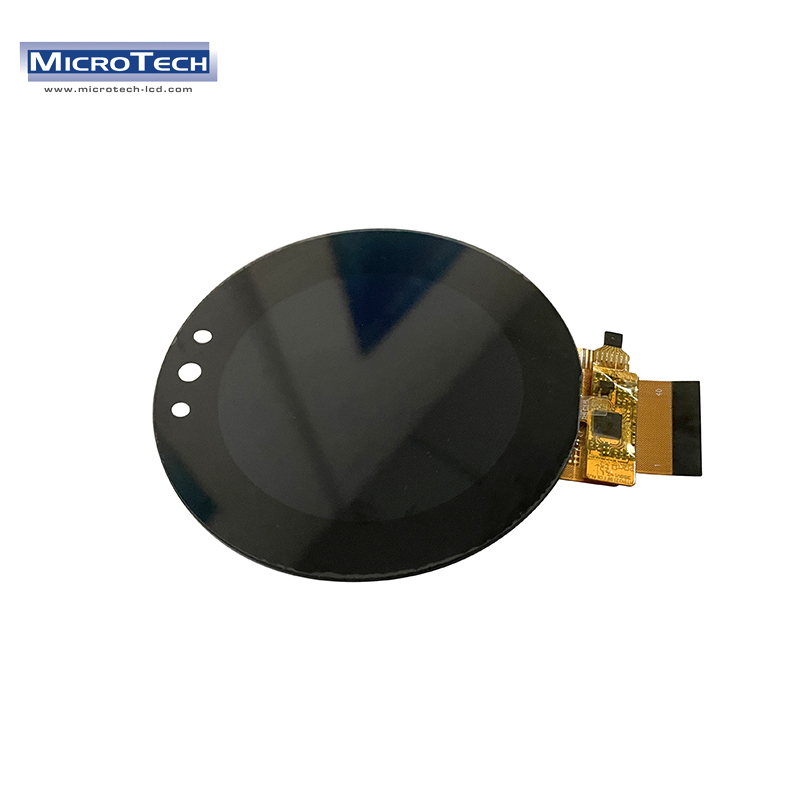

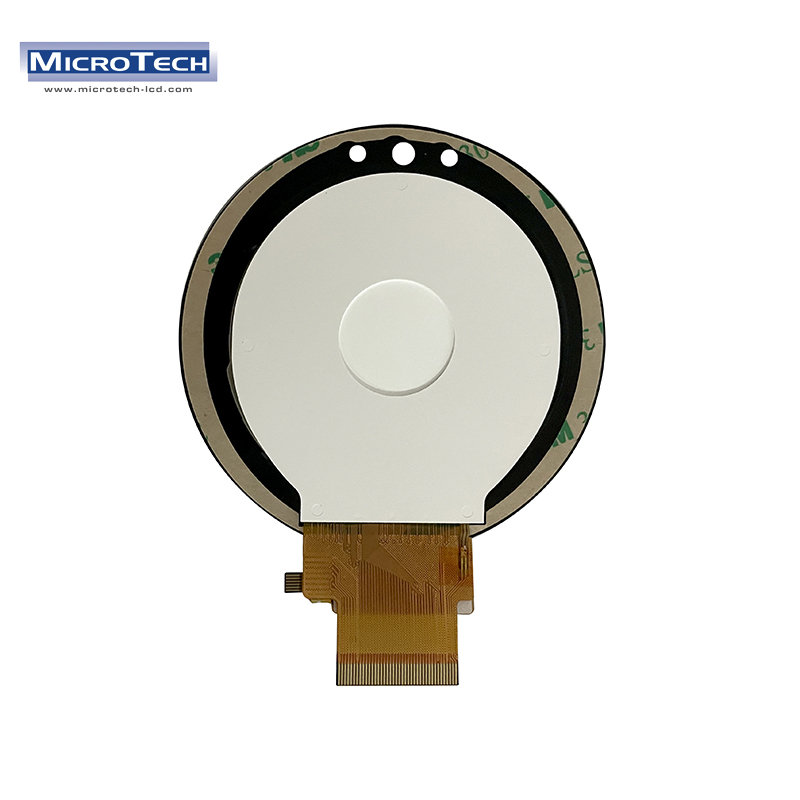

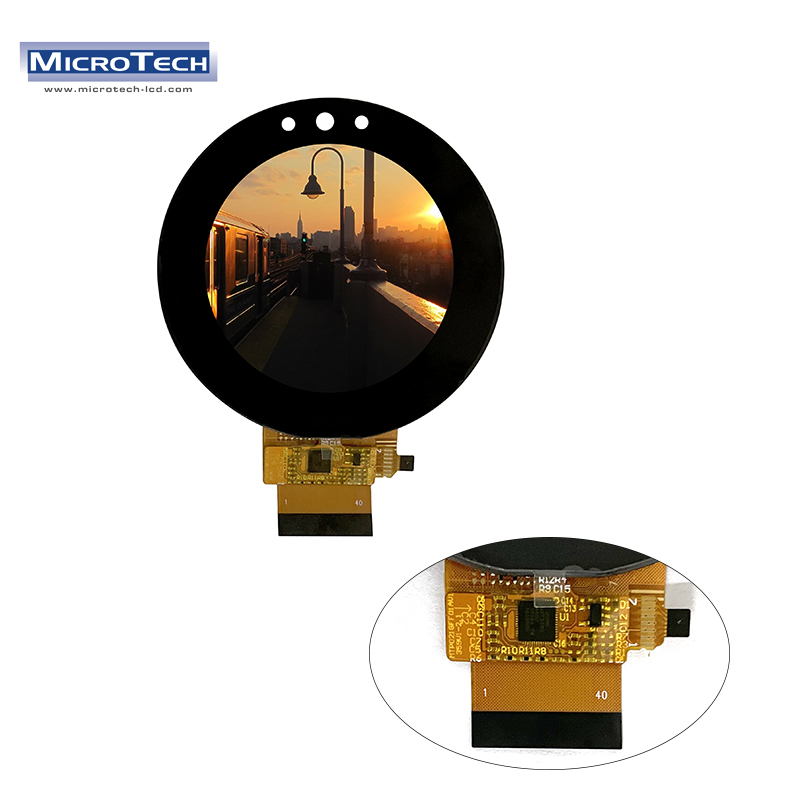

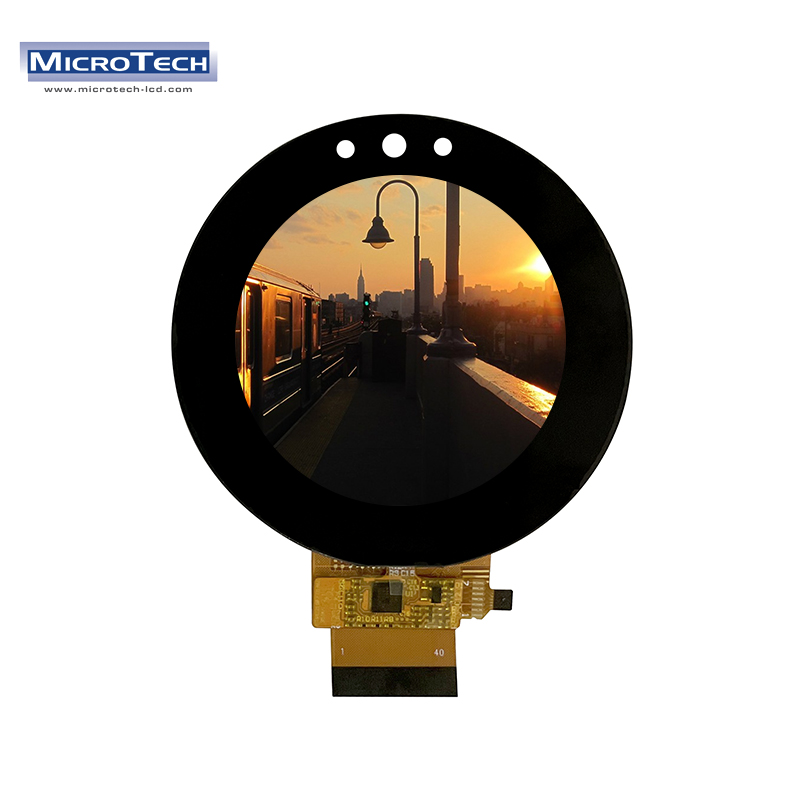

2.1 inch 480*480 round screen Amorphous silicon color TFT panel LCD Module
PARAMETER
VALUE
UNIT
75.0±0.1
74.49±0.1
5.19±0.15
74.49±0.1
5.19±0.15
mm
mm
mm
mm
mm
Screen size (diagonal)
2.1
inch
53.28
53.28
53.28
mm
mm
mm
Display resolution
480 x 3 x 480 VGA
pixels
0.111
0.111
324
0.111
324
mm
mm
PPI
mm
PPI
Pixel configuration
RGB vertical stripe
Display colors
16.7M
colors
Display mode
Normally Black
LCD Driver IC
ST7701S
CTP Driver IC
ATMXT308U
LCD Interface
RGB18-bit+SPI
CTP Interface
IIC
Driver RAM size
NO RAM
Light Source
LED Backlight
CTP Surface hardness
6H
Supply voltaqe module
2.8
V
Power consumption module (nominal value without backlight)
T.B.D.
W
Advised viewing direction
ALL
Maximum contrast ratio (peak viewing angle)
1000:1
LCD Typical luminance
320
Cd/m2
Backlight lifetime (Continuous operation at 25C; Iled = +15mArms)
Min. 10000.
hours
Operating temperature range
-20 to +70
℃
Storage temperature
-30 to +80
℃
LCD Response speed (typical)
30
ms
Module mass (without external flexible foil cable)
tbd.
g
