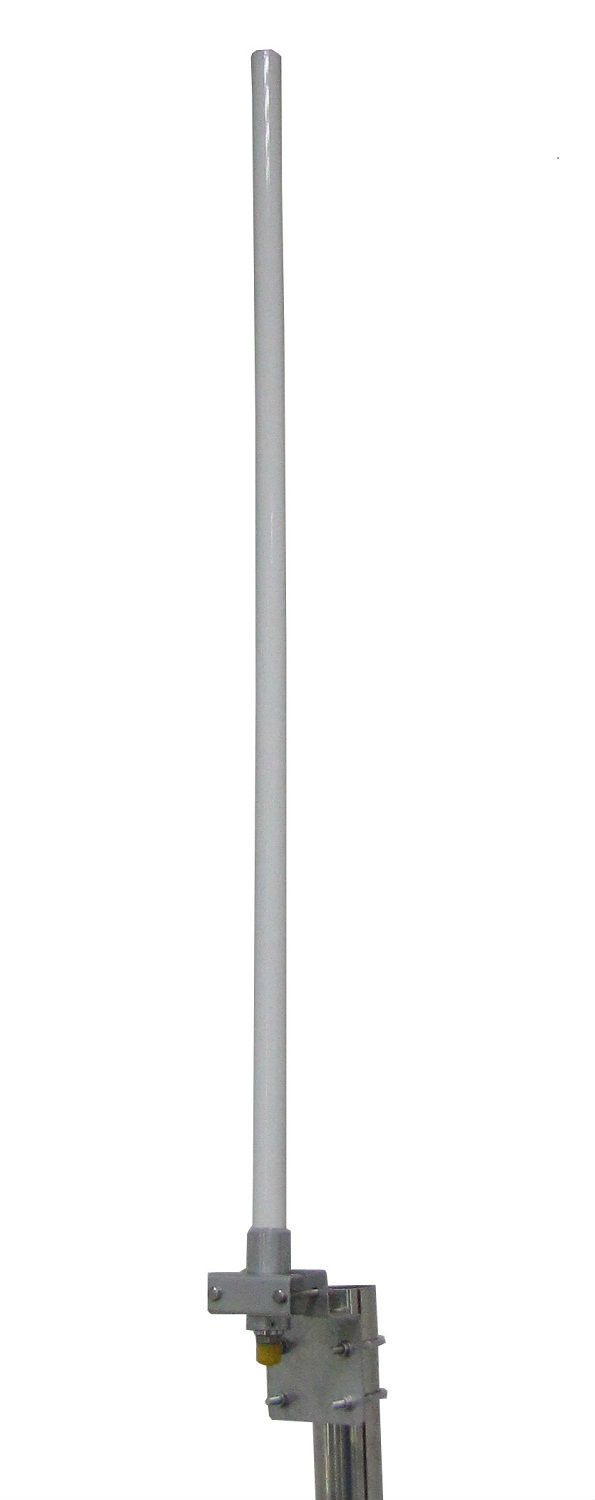

2.4G 5.8G Omni Antenna
Production Lead Time:
7 day(s)
Model No.:
SHD-O-245810-G
Brand:
SHD/OEM
Size:
Φ20×1040mm
Port:
Guangzhou, Shenzhen
Type of Payment:
100% before shipment by TT
Minimum Order Quantity:
100
Customised:
Yes
Description
Contact Supplier

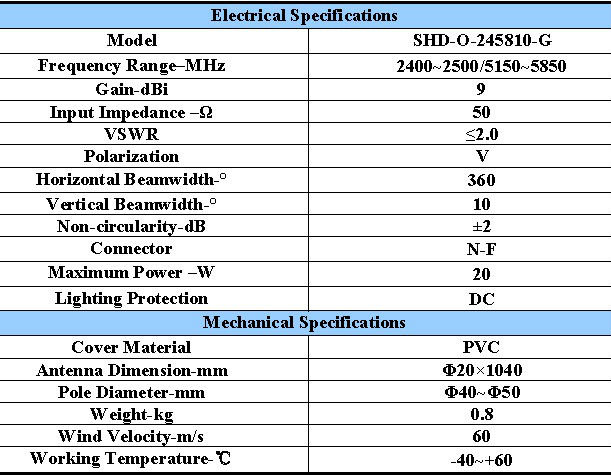

Description
- Frequency Range–MHz : 2400~2500/5150~5850
- Gain-dBi: 9
- Input Impedance –Ω: 50
- VSWR: ≤2.0
- Polarization：V

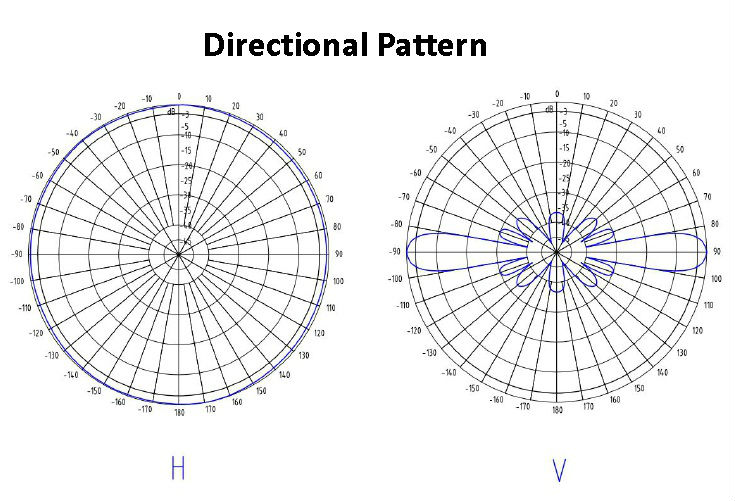

- Horizontal Beamwidth-°：360
- Vertical Beamwidth-°：10
- Non-circularity-dB：±2
- Connector：N-F
- Maximum Power –W：20
- Lighting Protection：DC
- Cover Material：PVC
- Antenna Dimension-mm：Φ20×1040

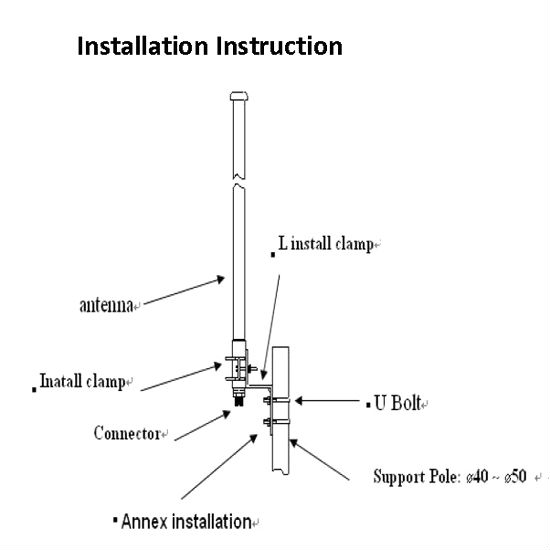

- Pole Diameter-mm：Φ40~Φ50
- Weight-kg：0.8
- Wind Velocity-m/s：60
- Working Temperature-℃：-40~+60
