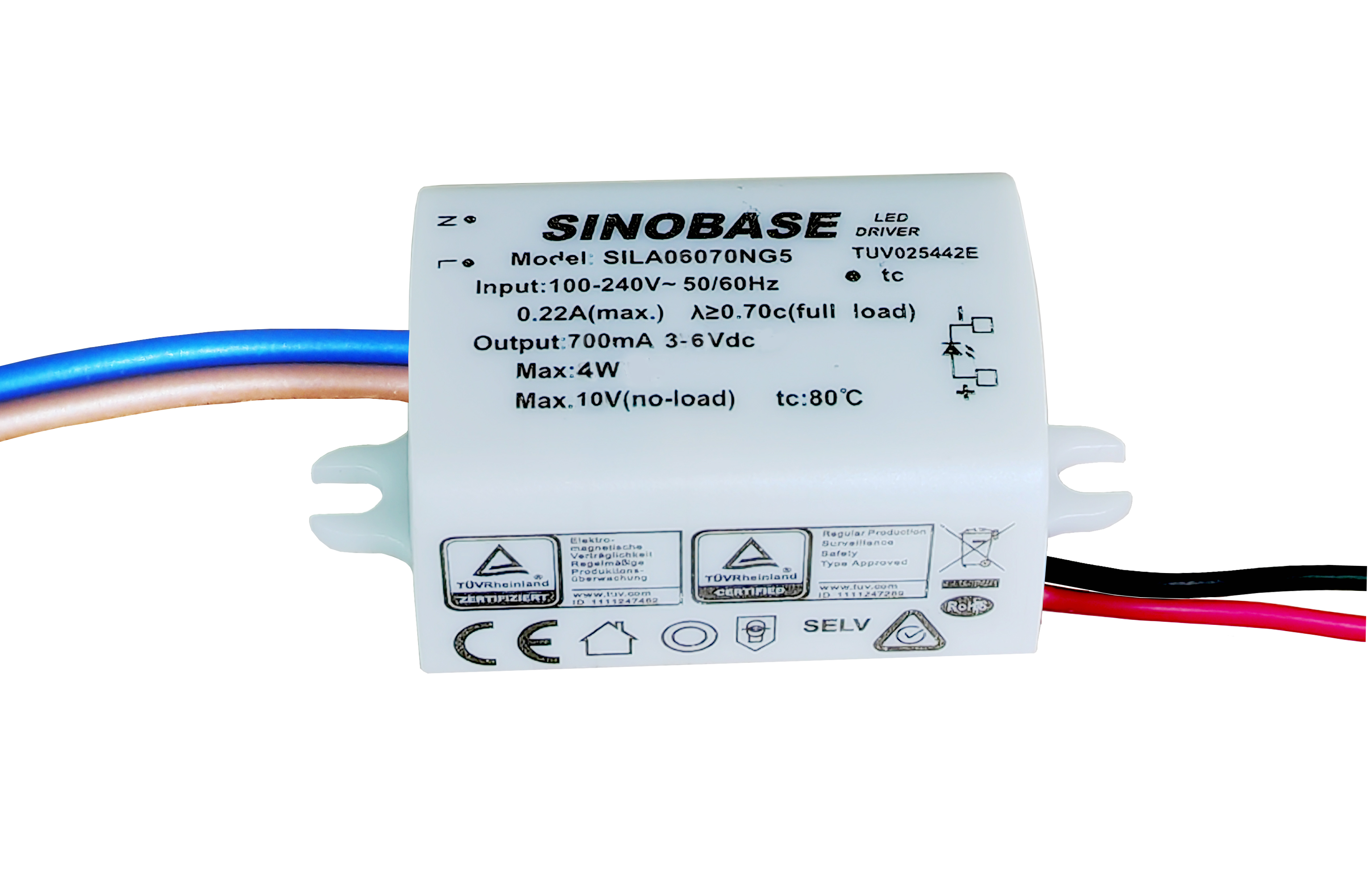

2-4W, 100-240Vac, Constant current LED Driver in small case
US $1.17 - US $1.62
US $1.30 - US $1.80
Production Lead Time:
7-35 day(s)
Shipping Method:
By sea, by air, by train, by courier
Application:
LED Luminaires
Brand:
SINOBASE
Feature:
Wide range of voltage input 100-240Vac
Material:
Plastic case
Light Source:
LED
Power Source:
AC Power
Description
Certification & Document
Contact Supplier
Description
Features:
· Design in small size to compact your lamp；
· Easy for installation with cables at both ends；
· Constant current mode；
· Output SELV protection, short circiut, over current and over voltage protection；
· Extremely high precision output current；
· A wide range of input voltage 100-240Vac;
Specification：
Power | Model | U_in(Vac) | U_out (Vdc) | I_out (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
2-4W | SILA27015NG5 | 100-240V～50/60Hz | 13-27 | 0.15 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA20020NG5 | 100-240V～50/60Hz | 10-20 | 0.2 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA16025NG5 | 100-240V～50/60Hz | 8-16 | 0.25 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA14030NG5 | 100-240V～50/60Hz | 7-14 | 0.3 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA12035NG5 | 100-240V～50/60Hz | 6-12 | 0.35 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA10040NG5 | 100-240V～50/60Hz | 5-10 | 0.4 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA09045NG5 | 100-240V～50/60Hz | 4-9 | 0.45 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA08050NG5 | 100-240V～50/60Hz | 4-8 | 0.5 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA07055NG5 | 100-240V～50/60Hz | 4-7 | 0.55 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA07060NG5 | 100-240V～50/60Hz | 3-7 | 0.6 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA06065NG5 | 100-240V～50/60Hz | 3-6 | 0.65 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
2-4W | SILA06070NG5 | 100-240V～50/60Hz | 3-6 | 0.22 | -20-50 | 80 | Max.4 | 42.5*28.5*21 |
P.S.:
* The current step is 50mA, contact us for the specs outside of above tables.
* Option for potting or not as per you need.
Certification：TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：
Design for all applicable LED luminaries, such as wall lamp, garden lamp, recessed light, bollards and other available LED luminaries, etc...
