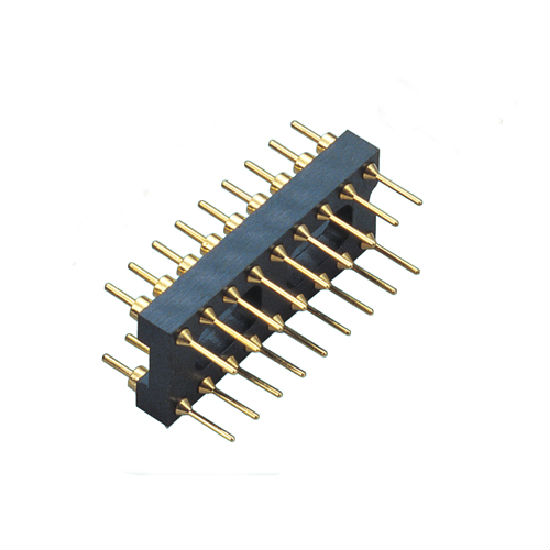

2.54mm IC Socket Series
Production Lead Time:
7 - 28 day(s)
Model No.:
3560
Brand:
WCON
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
- Current Rating: 1.0AMP
- Contact Resistance: lOmΩ Max
- Dielectric Strength: Min 1000 VRMS
- Mechanical Life:Min 100 cycles
- Connecting Pin:φ0.40 to φ0.56mm
- Forces:(polished steel gauge φ0.43mm)
- Insertion:200g Max/pin,Withdrawal:60g Min/pin
- Operation Temperature:-40℃ to +105℃
- Sleeve: Brass CuZn36Pb3(C36000), Sn over Ni
- Contact Clip(4 finger):BeCu(C17200)，Au Sn over Ni
- Insulator Material: PPS+30%G.F(UL94V-0)
- 06P~18P Insulators without center bar
- 20P~28P Insulators with center one bar
