2.95 inch 3 inch IPS LCD Touch Screen 360*640 350 Brightness LCD TFT LCD Module With CTP

US $10.00 - US $16.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTF0295VV01A-V1

Customised:

Yes

Size:

2.95inch

Description

Contact Supplier

Feature		Spec
Display Spec.	Size	2.95 inch
	Resolution	360(RGB) x 640
	Technology Type	a-Si
	Pixel Configuration	R.G.B. Vertical Stripe
	Pixel pitch(mm)	0.102 (H)*0.102(V)
	Display Mode	Normally Black
	Surface Treatment	HC
	Viewing Direction	FREE

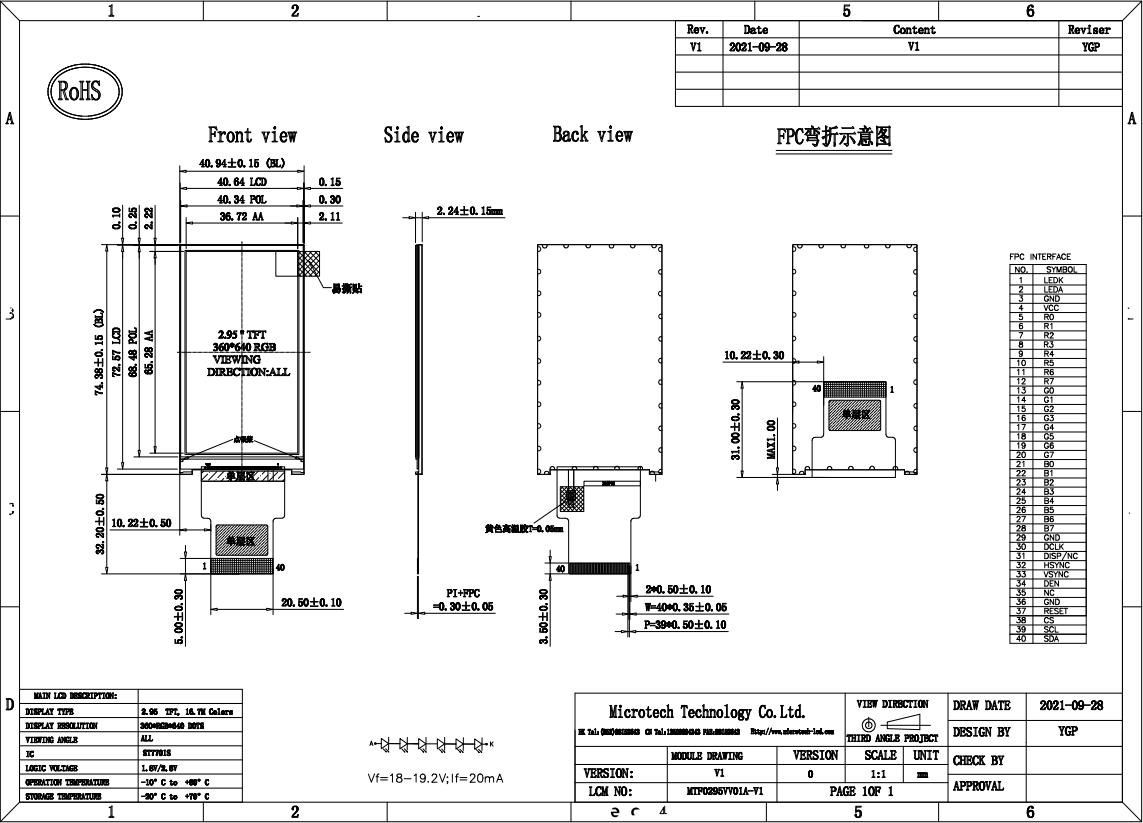

Mechanical Characteristics	Module (W x H x D) (mm)	40.94 x 74.38x 2.24mm
	Active Area(mm)	36.72*65.28mm
	With /Without TSP	With CTP
	Matching Connection Type	FPC
	LED Numbers	6 LEDs
	Weight (g)	TBD
	LCM Luminance	350 Cd/m2
Electrical Characteristics	Interface	RGB 24 ibt
	Color Depth	16.7M
	LCD Driver IC	ST7701S

Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
