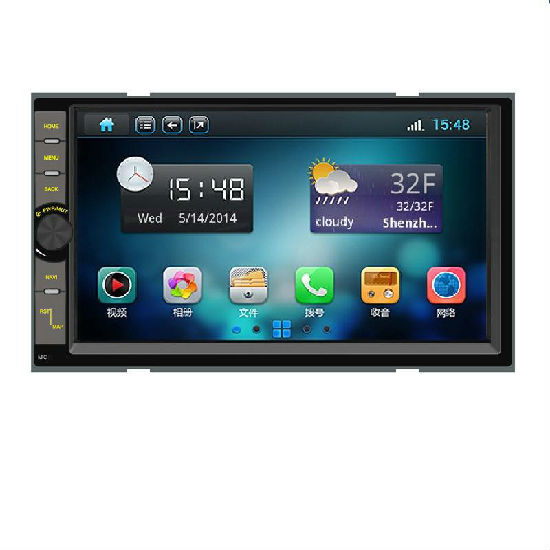

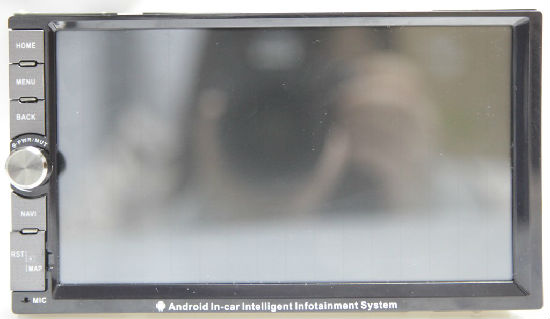

2-Din Car Audio System
Production Lead Time:
7 day(s)
Model No.:
CPC-1076A
Brand:
YeaWise
Size:
7 inch
Voltage:
12V
Anti-shock Memory Buffer:
Yes
Power Output (Watt):
4 x 50W
Digital Media Compatible:
Mp3, Mp4, WMA
Features:
Bluetooth, Built-in GPS, Mobile Phone, MP3 Players, AM/FM Radio Tuner, TV, Ipod,OBD,DTV,USB
Display Size:
7"
Car Maker:
Chevrolet, Honda, Jeep, Kia, Nissan, Subaru, Suzuki, Toyota, Volkswagen, Opel, Peugeot, Skoda
On-screen display Language:
support all languages
Auto Loading CD Mechanism:
Yes
Resolution:
1024 x 600
Install Size:
2 Din
Description
Contact Supplier
Description
- 2-din design with a large display.
- Side control penal for various adjustments.
- OS: Android 4.2.
- Universal and suitable for most car models.
- Professionally engineered for excellent car audio entertainment.
- Also flaunt other practical applications.
- Allow you to enjoy your favourite music when you are driving.
Technical data:
- Hardware working voltage: 10.8-16V.
- Memory current: ＜6 MA.
- Platform: CSR PRIMAⅡ.
- CPU: CSR PRIMAⅡ, ContexA9.
- CPU frequency: 1GHz.
- RAM: DDR3, 1GB.
- Storage space: 8GB eMMC.
- Resolution: 1024 x 600.
- Screen brightness: 600cd/m2.
- Touch screen: capacitive touch screen (G+G).
- Multi-touch: 10 point.
- DVD: ICMT1389.
- DVD loader: Foryou car specifications DL-31.
- Laser head: HOP-1200XH( HITACHI ).
- Navigation CPU processor: GA833(Beidou/GPS dual mode).
- DSP chip: BD37033.
- Amplifier chip: TDA7388.
- Radio tuner IC: NXP TEF6657.
- DTV chip: Siano SMS1184.
- Game function: support wired gamepad.
- Work temperature: -20~+70℃.
- Mobile HDD: Support 1TB.
- Back light changeable.
- P Sound effect.
- Support cross ov.
