PRODUCT OVERVIEW

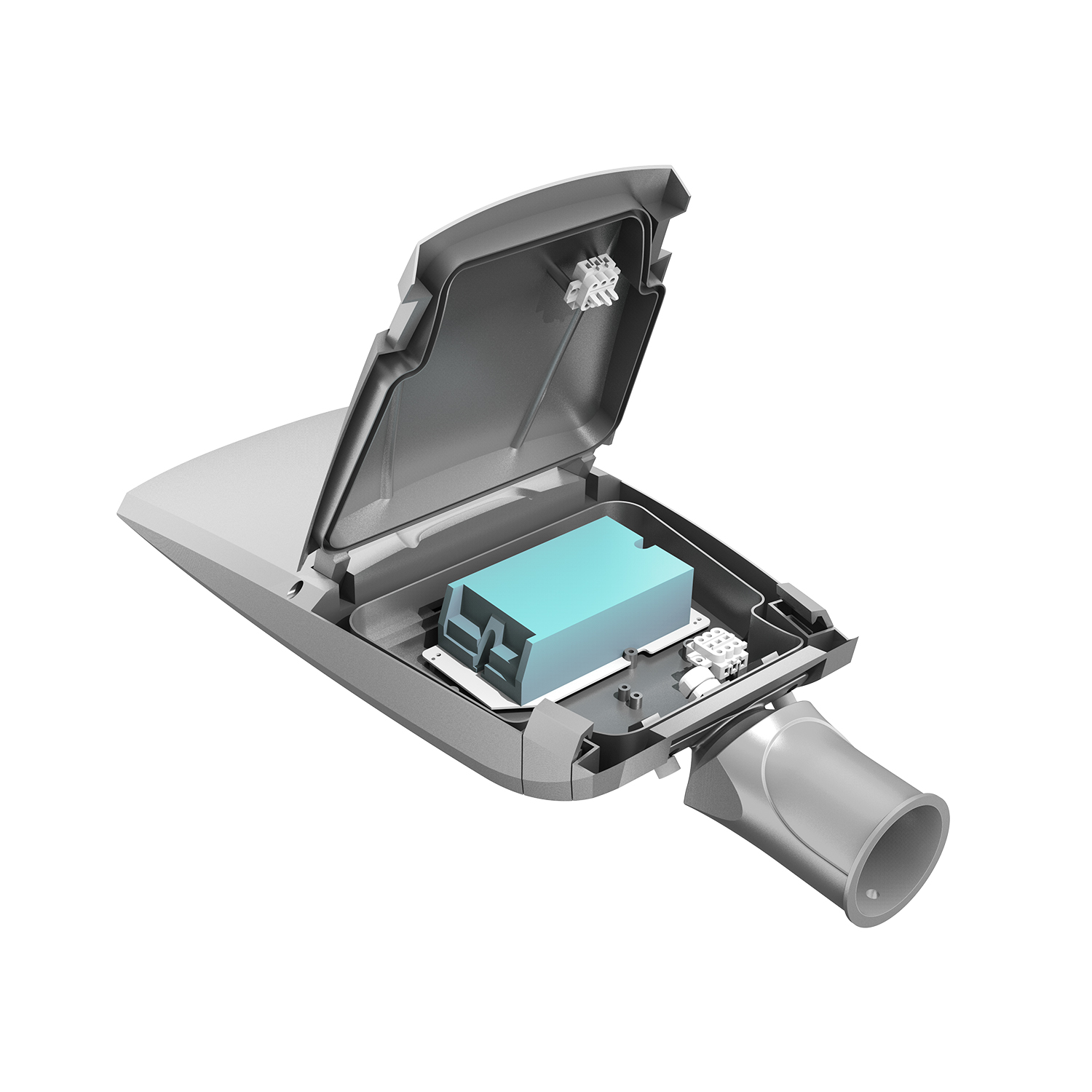

The LED Street Light AOK ILA Series is expertly crafted for European streets, delivering superior illumination with its 0W LED light. Each luminaire is designed with individual lenses made from optical-grade Mitsubishi polycarbonate to maximize light intensity. The micro-lens systems provide IESNA Type II, Type III, and Type IV light distributions, ensuring optimal coverage. Maintenance is effortless thanks to a tempered glass cover and a hinged, toolless entry door. The heavy-duty die-cast aluminum housing and door enhance durability, while built-in circuit breakers and tool-free electrical gear trays simplify auto-electrical disconnection. The luminaire's 0% total lumens above 90° results in a BUG rating of U=0, eliminating up-light pollution.

Ideal for highways, the AOK ILA Series LED Street Light is your go-to solution for high-quality and reliable street lighting. With IK09 impact resistance, anti-corrosion ratings, and IP66 waterproofing, it’s designed to withstand harsh environments. Invest in the best LED street lighting for highways in Europe and experience unmatched quality, longevity, and performance.

Features of the ILA Series:

  ✔ Power range: 20W to 180W (200W optional), Class I/Class II.

  ✔ System efficiency up to 160lm/W with high lumen output and precise light patterns for energy savings.

  ✔ Premium optical-grade Mitsubishi polycarbonate lens ensures high optical efficiency and superior resistance to environmental threats such as heat, cold, sunlight, and moisture.

  ✔ Micro-lens systems offer IESNA Type II, Type III, Type IV, and Type V distributions.

  ✔ Excellent uniformity and low glare for maximum comfort and environmental friendliness.

  ✔ Optical systems maintain an IP66 rating with a durable tempered glass cover.

  ✔ Available in CCT options of 2700K, 3000K, 4000K, 5000K, 5700K, and 6500K.

  ✔ ULOR = 0%, preventing up-light pollution.

  ✔ CRI options: 70 Ra, 80 Ra, 90 Ra.

  ✔ Anti-UV thermosetting polyester finish with a rugged, weather-tight design and 3G vibration rating for enhanced durability.

Photometric Design:

High optical efficiency with premium Mitsubishi polycarbonate lenses, offering excellent resistance to environmental degradation.

Precise light distribution directed towards the target area for superior illumination.

Lighting management capabilities including control and automatic intensity reduction.

Excellent uniformity and low glare for optimal comfort and environmental impact.

Application Reference:

Road lighting

Area lighting

Perimeter lighting

Mounting & Control Options:

Designed for versatile mounting and control solutions to meet diverse street lighting needs.
