Specifications

● IL02 series is designed for street lighting, precision-engineered individual lenses made of optical grade polycarbonate for maximum light intensity, micro-lens systems produce IESNA Type II, Type III, Type IV distributions. Luminaries produce 0% total lumens above 90°(BUG Rating, U=0), Delivers improved visual comfort by lower glare and providing a wider smoother, and more uniform light output., Optical systems maintain an IP66 rating.

● Streamlined design to reduce wind resistance

● Reserved sensor location for easy installation

● 20KV surge protection

● Powdering/PC + Toughened glass

● Buckle design, easy maintenance

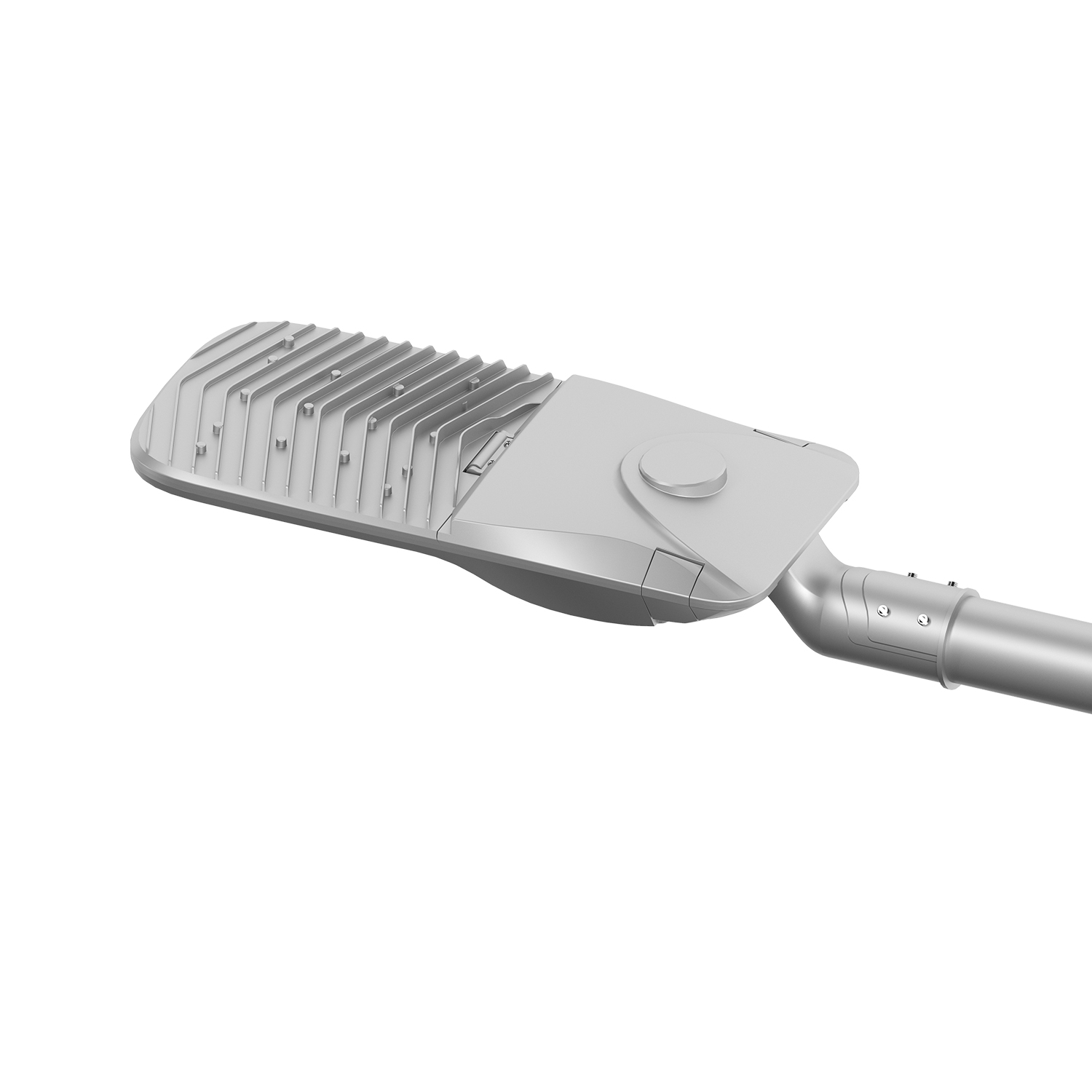

● Fin shape radiator, better heat dissipation

Electrical

● 1-10V/ PWM/ Timer dimming, 3 Timer Modes, Power Factor (PF) ≥0.95.

● Constant current Class II driver, 100-277Vac, 50-60Hz, Class I optional.

● High-efficiency driver: up to 90%, minimum efficiency 85%.

● Input Surge Protection: 6kV line-line, 10kV line-earth, 20KV SPD available.

● Operating temperature rating:  -40°F to 122°F (-40°C to 50°C).

● Photocell, Zhaga Base, Zigbee, or Lora Lighting Controller available.

● Surge Protective Device.

Construction

● Tool-less entry hinged removable door for easy maintenance.

● Auto-electrical disconnection: Built-in circuit breaker, tool-free electrical gear tray.

● UV stabilized polyester powder paint finish for durability and corrosion resistance.

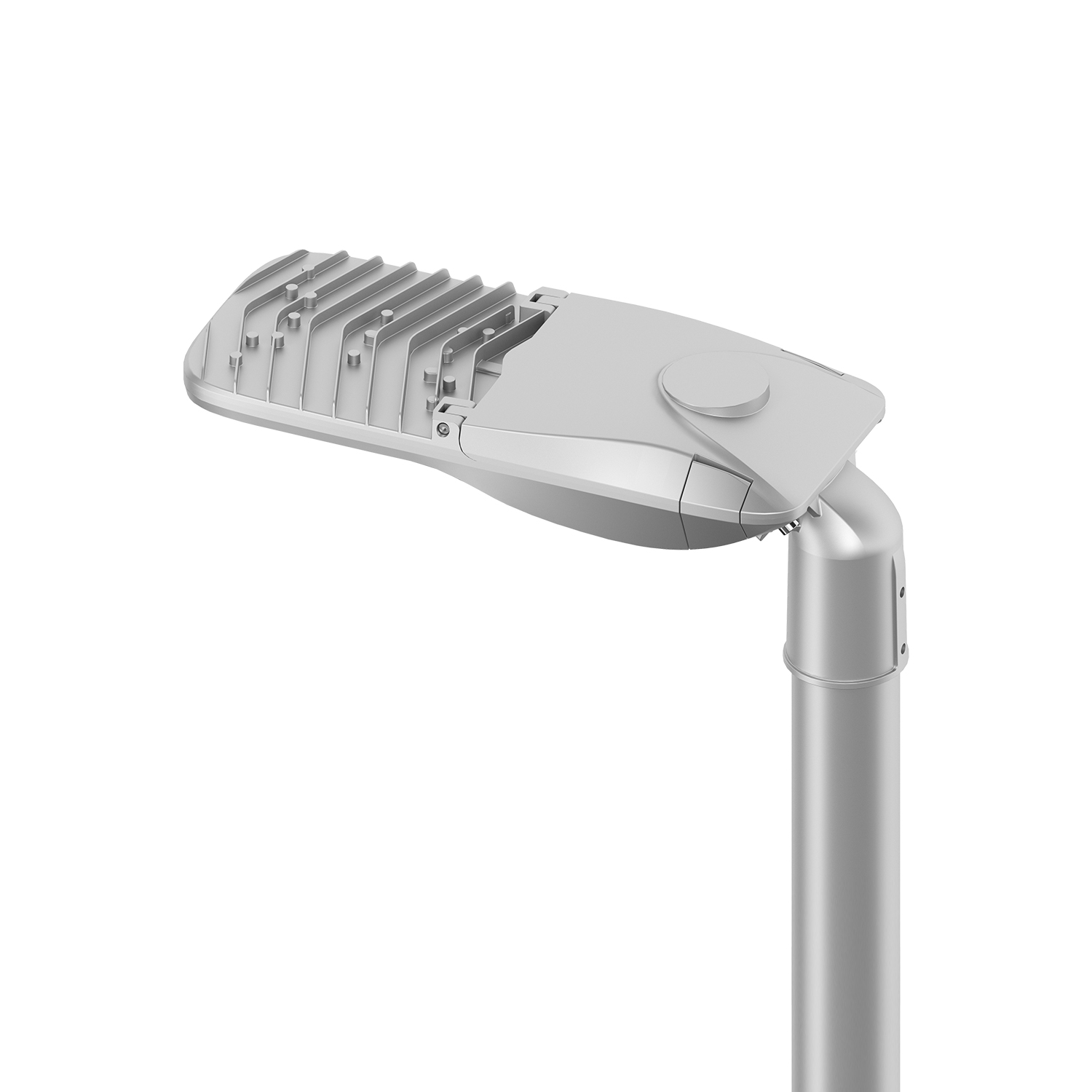

● Multiple Mounting options: Post top and side entry installation available.

● Mounting has leveling adjustment from -10° to  +15°

● 3G vibration rated.

Warranty

● 5-year standard warranty, 10-year warranty optional. Please consult with our sales for a detailed agreement.
