20W Linear, Profile, Mirror Light, LED Bar, Strip Lamp DOB Module | Parts, Components & Electrical Supplies

Smar LED Lighting Guangzhou Co., Ltd

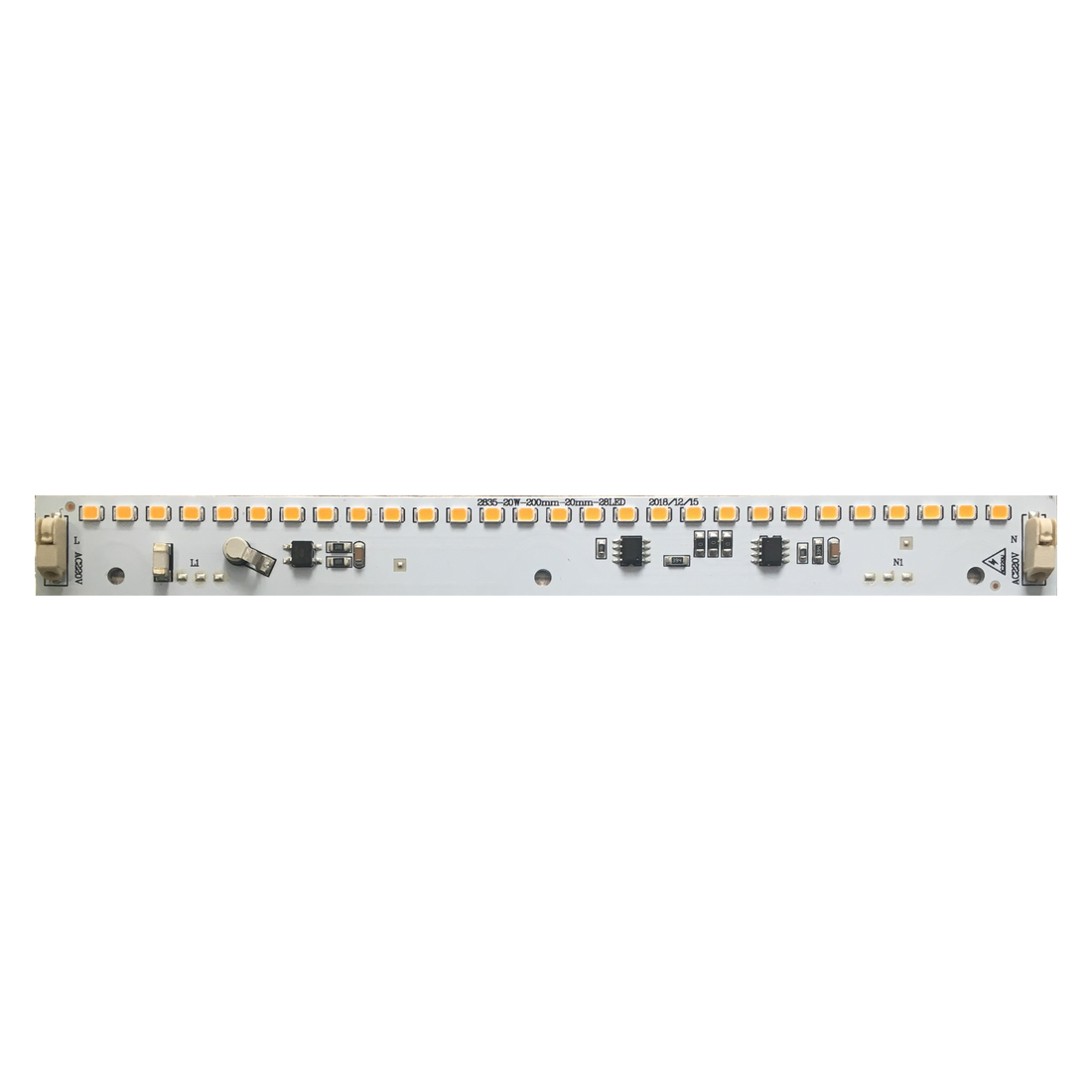

20W Linear, Profile, Mirror Light, LED Bar, Strip Lamp DOB Module

US $1.15 - US $1.27

Production Lead Time:

7 day(s)

Shipping Method:

Plane, Ship, Train, DHL

Customised:

Yes

Feature:

High Power Factor, Dimmable, Compact Design

Material:

Aluminum PCB

Light Source:

LED

Application:

Linear, Profile, Mirror Light, LED Bar, Strip Lamp DOB Module

Description

Contact Supplier

Customized Linear LED PCB for Lighting Manufacturers

SMAR LED Lighting specializes in customized LED PCBs, DOB modules and PCB assemblies for professional lighting manufacturers.

Key Features

High-Voltage Linear Design: Integrated linear IC solution for compact LED lighting applications.
High Power Factor: PF >0.9, subject to the specified model and test conditions.
Dimmable Option: Dimming functionality available for compatible designs.
Aluminum PCB: Designed to support heat dissipation when properly integrated into the lighting fixture.
Customized Solutions: Flexible PCB dimensions, LED quantities, power ratings and color temperatures.
OEM/ODM Service: Customized designs based on customer drawings and technical requirements.

Typical Model Specifications

Model No.	Power	Dimension	Input Voltage	Efficacy	Ra	PF
10W-105mm-20mm-15LED	10W	105*20mm	220V-240V	100Lm/W	>80	>0.9
10W-200mm-20mm-28LED	20W	200*20mm	220V-240V	100Lm/W	>80	>0.9
10W-570mm-9.5mm-70LED	10W	570*9.5mm	220V-240V	100Lm/W	>80	>0.9
12.5W-486mm-45mm-96LED	12.5W	486*45mm	220V-240V	100Lm/W	>80	>0.9
12W-550mm-25mm-160LED	12W	550*25mm	220V-240V	100Lm/W	>80	>0.9
14W-495mm-15mm-46LED-120V	14W	495*15mm	110V-130V	100Lm/W	>80	>0.9
20W-200mm-20mm-28LED	20W	200*20mm	220V-240V	100Lm/W	>80	>0.9
20W-495mm-24mm-84LED-120V	20W	495*24mm	110V-130V	100Lm/W	>80	>0.9
