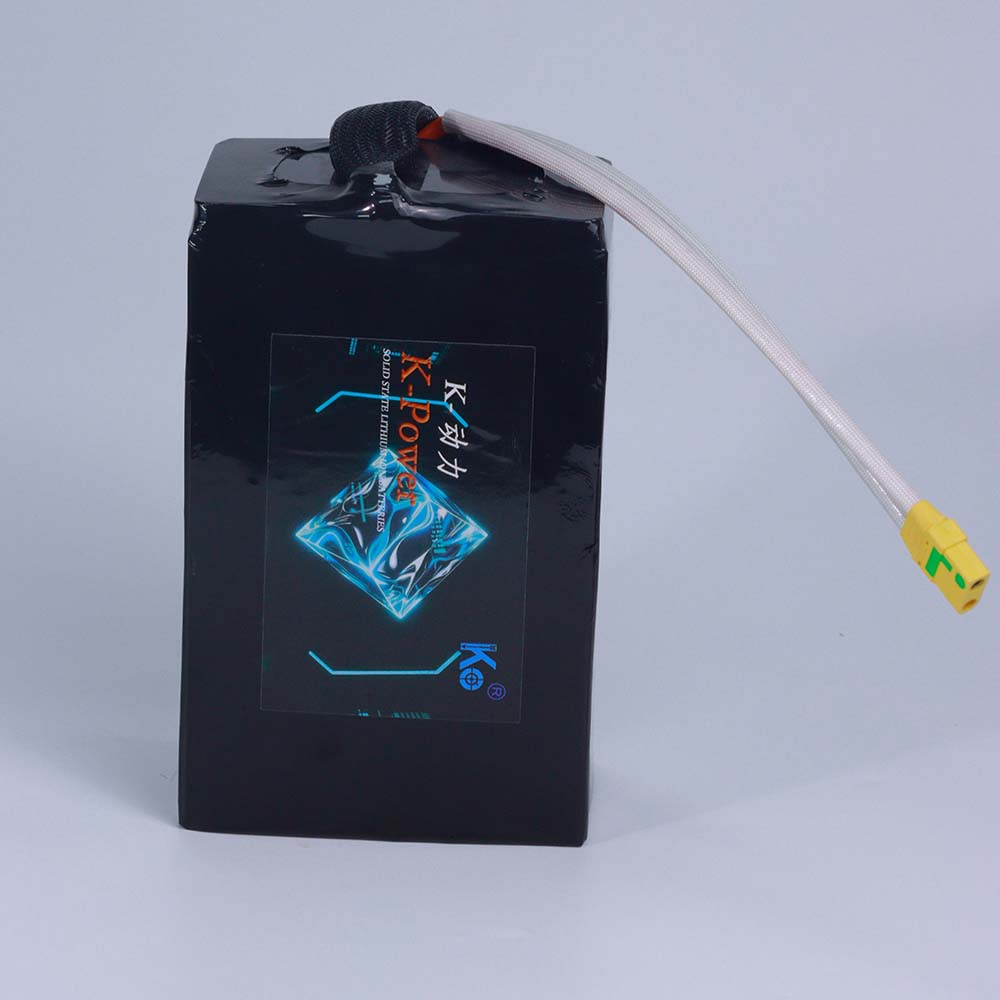

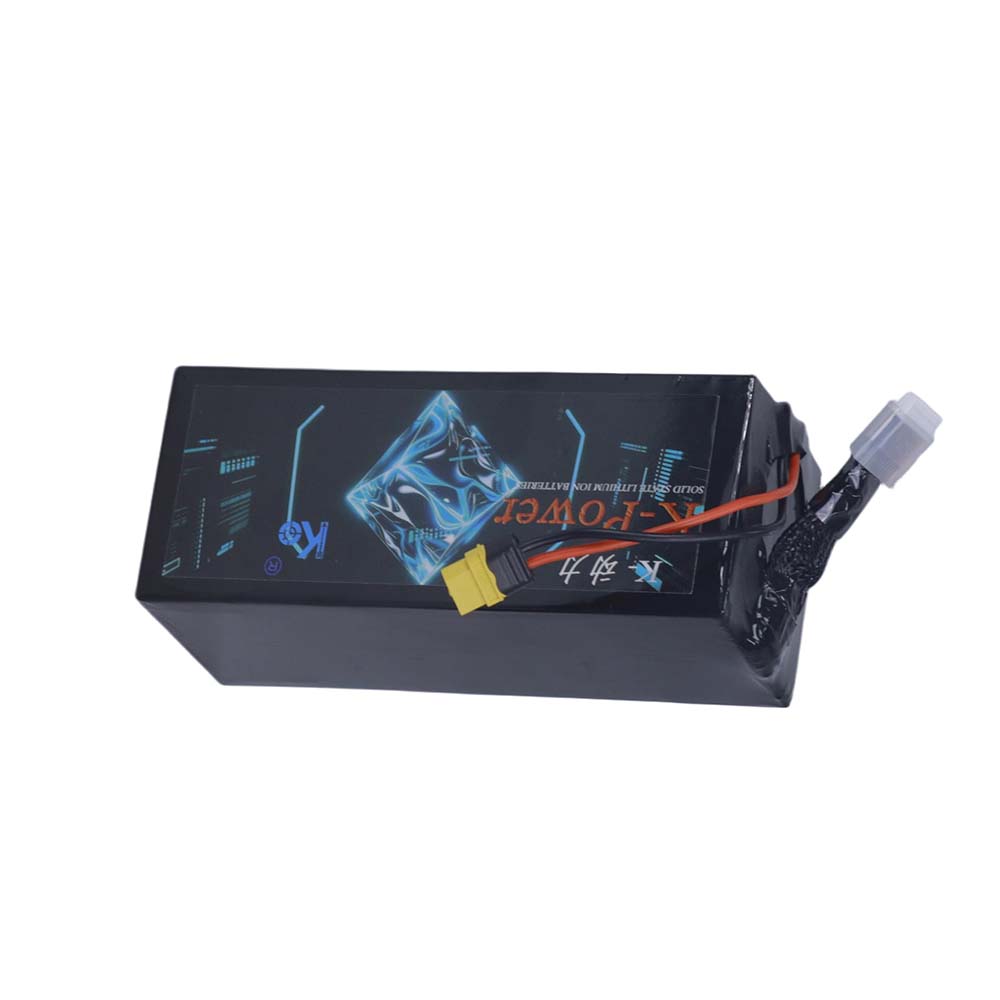

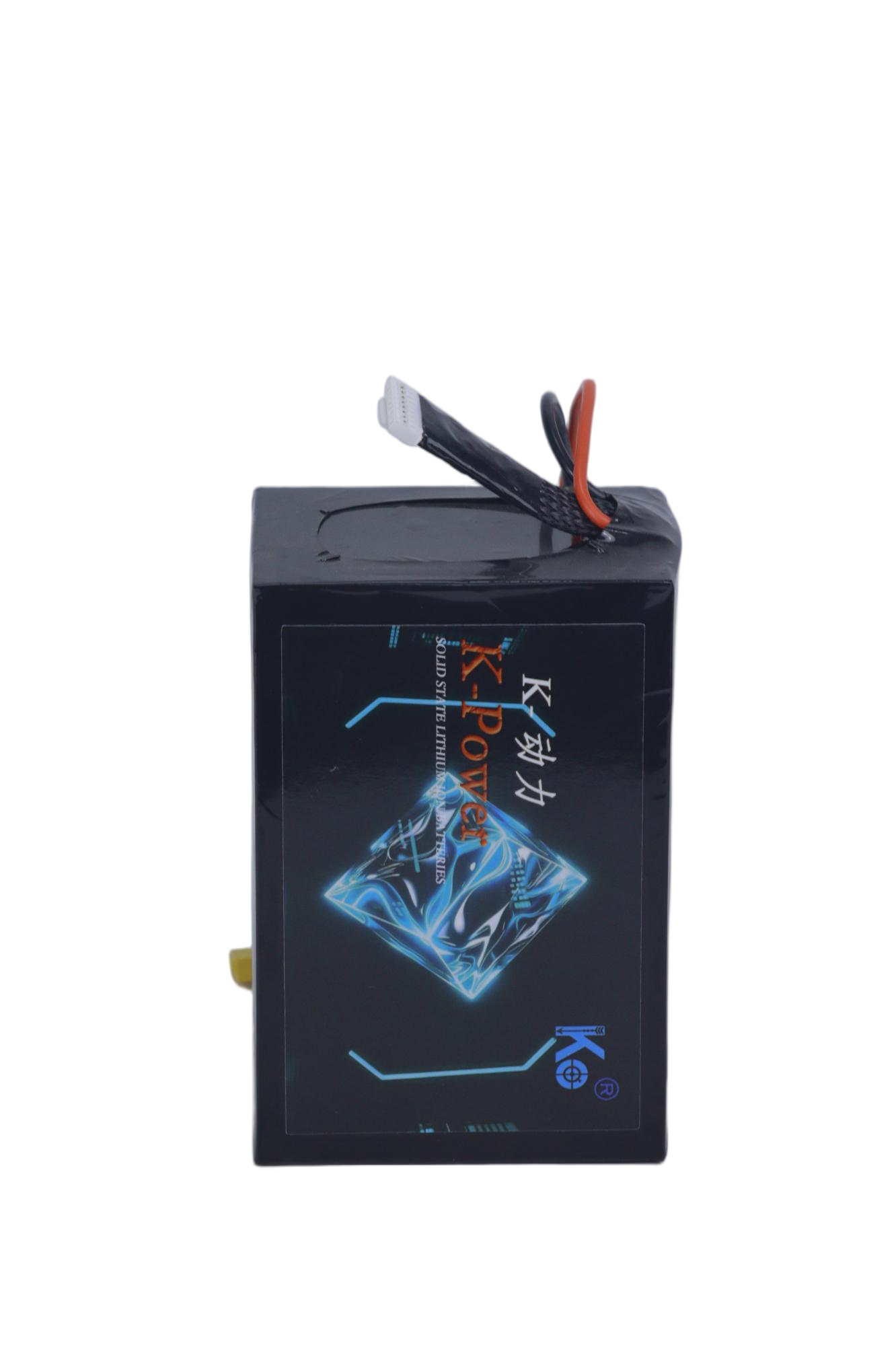

21.9V / 20Ah NCM UAV Battery | Batteries

Dongguan Shanze New Energy Technology Co Ltd

21.9V / 20Ah NCM UAV Battery

US $10.00 - US $100.00

Production Lead Time:

7-15 day(s)

Shipping Method:

sea /air shipping

Battery Type:

Lithium Ion

Size:

196 x 78 x 55 mm

Weight:

<=1.50 kg

Customised:

Yes

Nominal Energy:

438.0 Wh

Cycle Life :

800-1000 cycles

Model No.:

6s1p

Pulse Discharge :

5C (100 A), 60 s

Continuous Discharge:

3C (60 A)

Cell Chemistry:

NCM 310 Wh/kg

Description

Contact Supplier

Specification Item	Value from PPT Page
Product Name	21.9V / 20Ah NCM UAV Battery
Model / Configuration	6S1P
Nominal Voltage	21.9 V
Battery Capacity	20 Ah
Nominal Energy	438.0 Wh
Charge Voltage	25.2 V
Maximum Charge	2C (40 A)
End-of-Discharge Voltage	16.5 V
Standard Charge	0.5C (10 A)
Pulse Discharge	5C (100 A), 60 s
Continuous Discharge	3C (60 A)
Working Temperature	Charge 0-45 C; Discharge -20-55 C
Cycle Life	800-1000 cycles
Harness / Connector	XT90-S + 7-pin balance, customizable
Net Weight	<=1.50 kg
Dimensions (L × W × H)	196 x 78 x 55 mm
Cell Chemistry	NCM 310 Wh/kg
