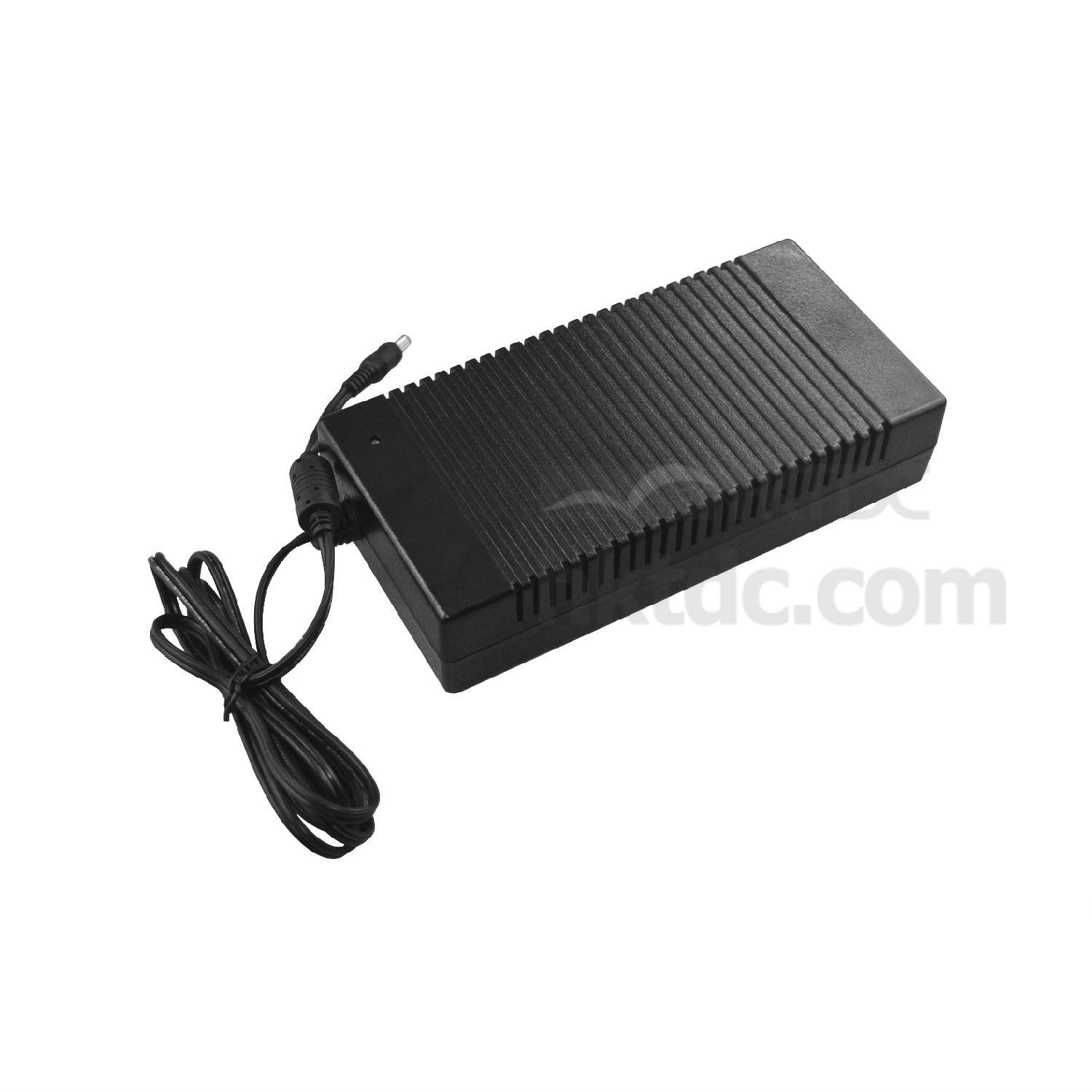

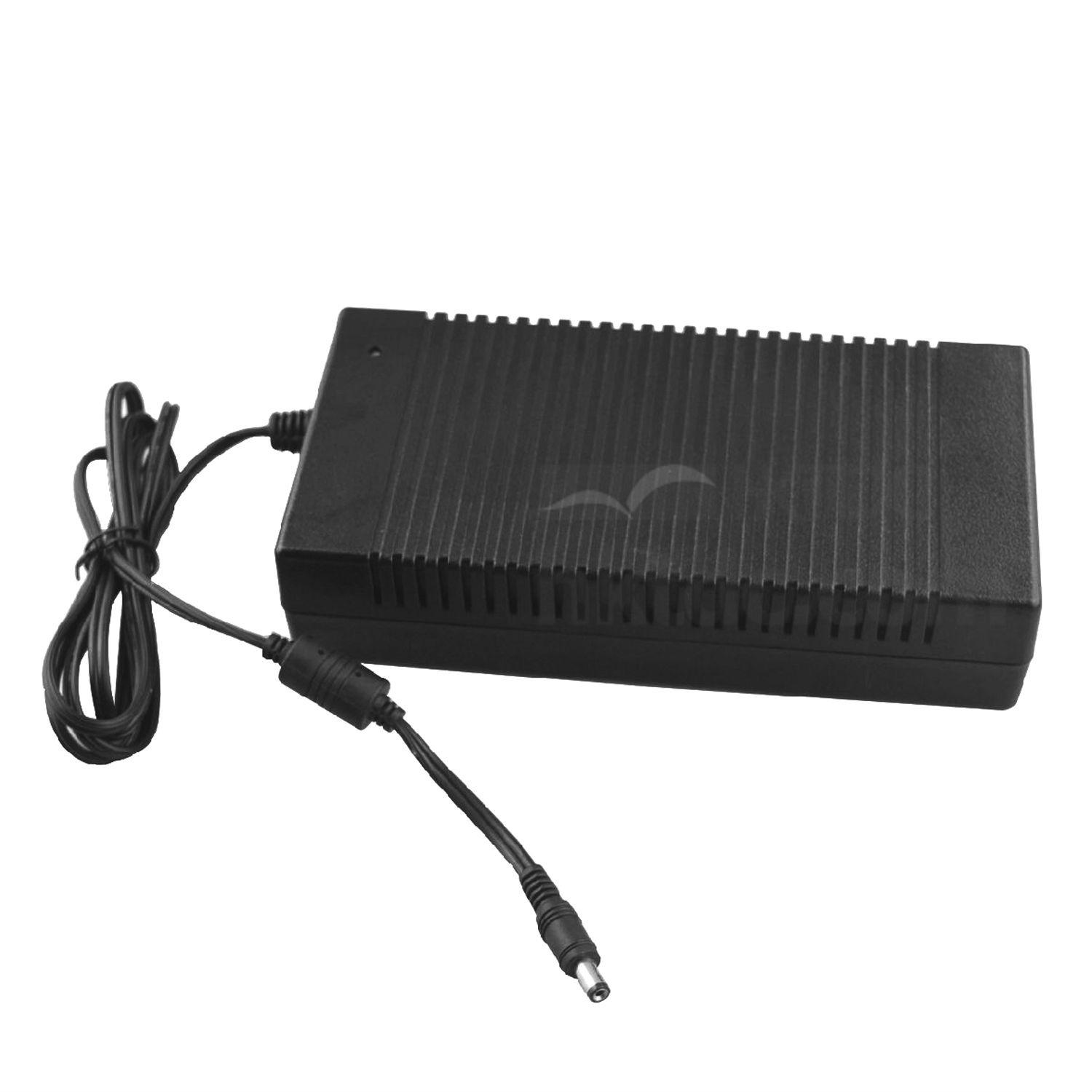

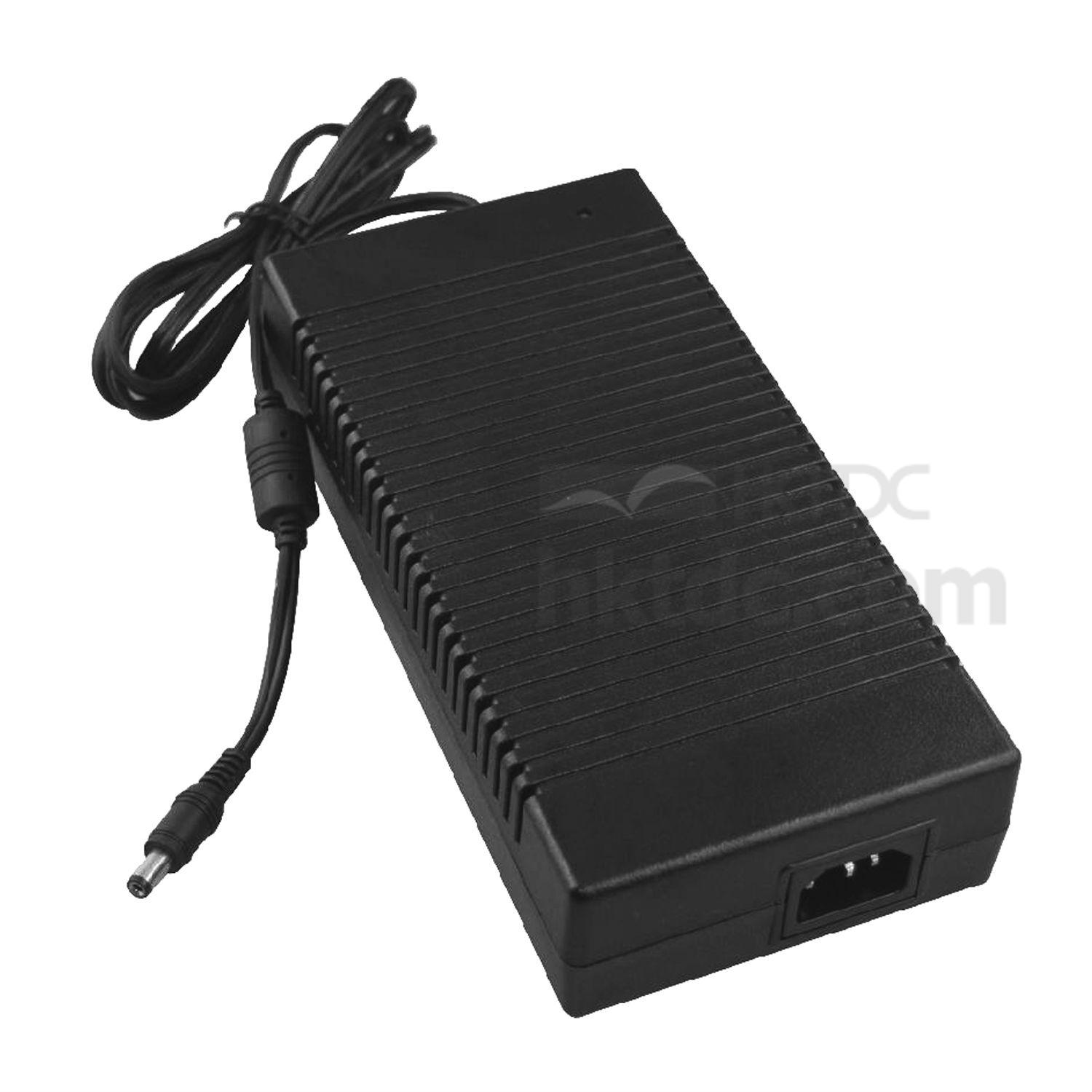

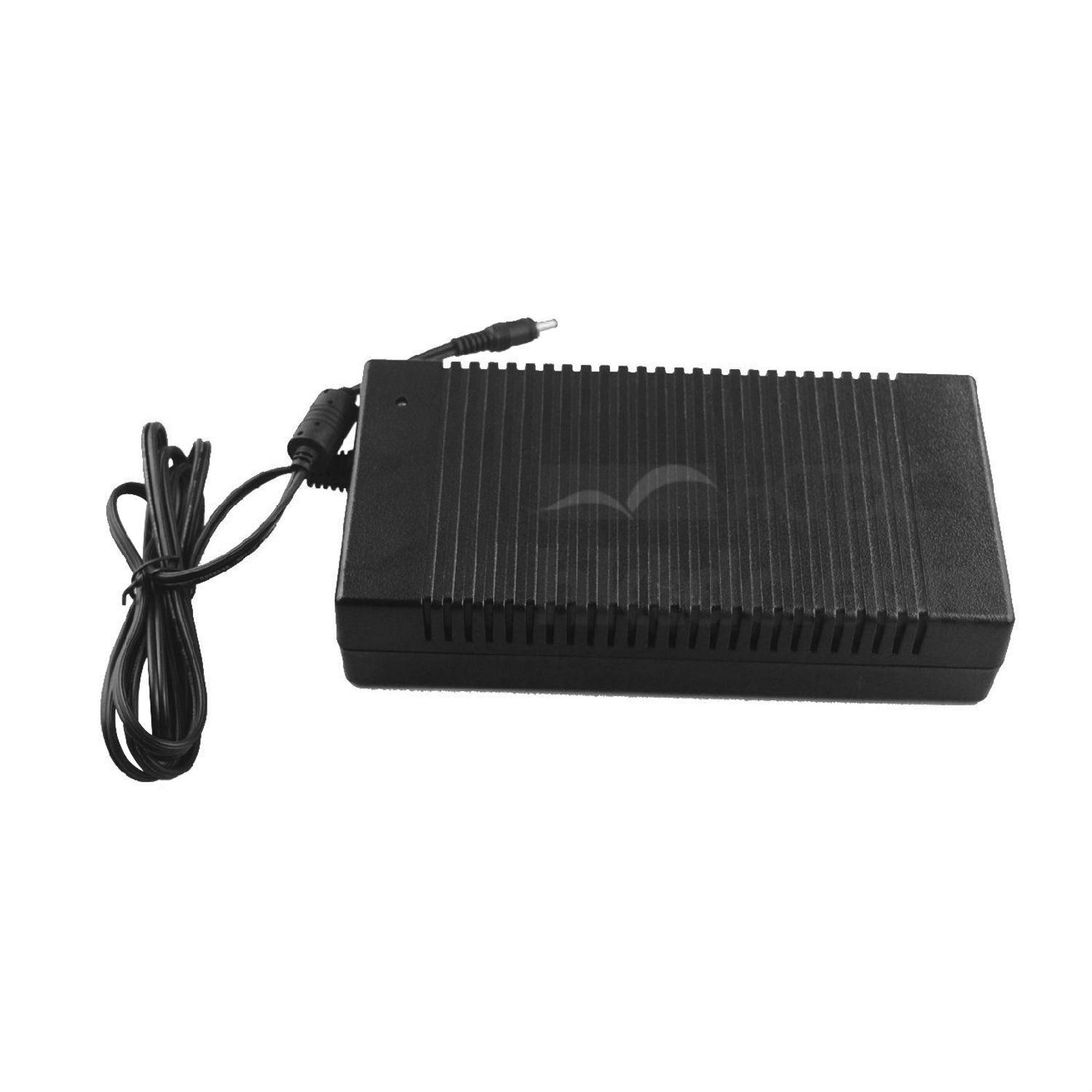

220W Power Adapter for Efficiency Class VI, CoC version V5 DoE VI
Share this page
Production Lead Time:
15 day(s)
Model No.:
12V17A
Colour:
black
Size:
198 x 98 x 46mm
Port:
Shenzhen, China
Type of Payment:
paypal. T/T.
Minimum Order Quantity:
100
Features:
with Fuse, with Switch, AC100-240V
Package:
Yes
Customised:
Yes
Output Type:
DC
Connection:
Desktop
Usage:
Switching Power
Description
Contact Supplier
Description
220W power adapter for Efficiency Class VI, CoC version V5   DoE VI
  • Input:100-240VAC @47-63Hz;
  • Output: Rated votlage 12VDC±5%, rated current 0-17A;
  • Efficiency:higher than 90%(full load);
  • PF value:>0.95;
  • Energy Efficiency: Level VI;
  • Inrush current:<60A;
  • Leakage current:<0.5ma;
  • Hi-pot test: primary to secondary 1.5KVAC/3mA ( 1min@50Hz );
  • Protection:Over voltage protection(115%--150%),Over current protection(115%--150%),Short circuit protection
  • Working temperature:0 to +40℃;
  • Storage temperature:-20℃ to +65℃;
  • Standard:EN60950-1;EN61000;EN55022 Class B,EN55024,EN61000-3-2,EN61000-3-3
  • MTBF:life>50,000 hours;
  • Burning test:ambinent 40±5℃,humidity 0%~93%, 100Vac~240Vac/50Hz, full load:80%~100% /2~4 hours
