22mm Brushless DC Motor

Production Lead Time:

35 day(s)

Model No.:

B2238M

Brand:

Hengdrive

Colour:

Metal

Size:

22*38mm

Port:

SHENZHEN / HONGKONG

Type of Payment:

prepayment 30%, balance Cash Before Delivery

Minimum Order Quantity:

3000PCS

Major Material:

Metal

Customised:

Yes

Description

Contact Supplier

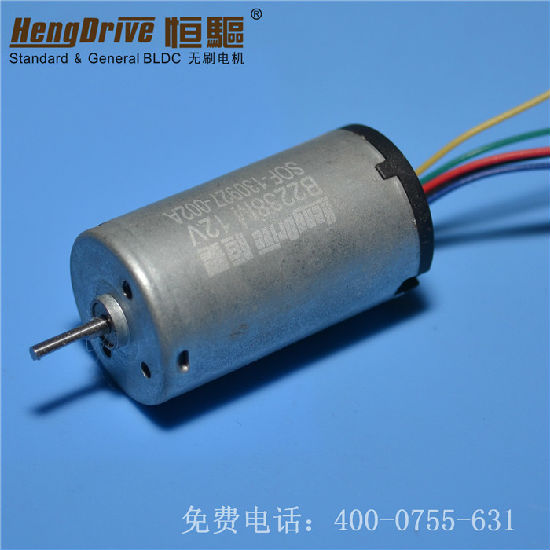

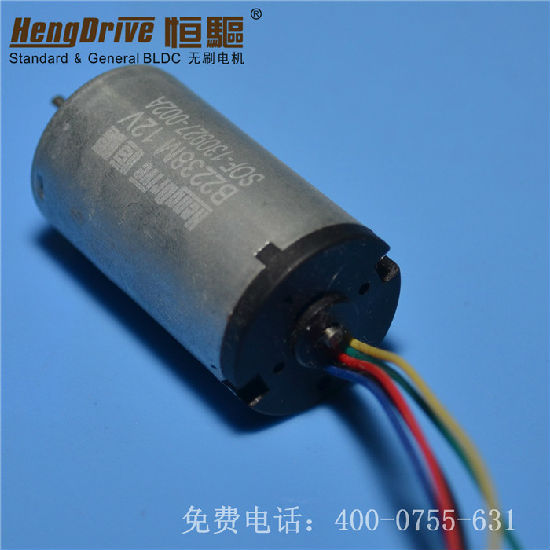

B2238M Brushless DC Motor
Output Power: 1W~6W Weight: 54g (Approx.)

Typical Application
Home Application: Small Appliance, Electric Curtain, Electric Windows/Door, Small Cross-flow Fan
Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine
Industry Facilities: Printing Machine, Binding Machine, Cutting Machine, Electric Valve
Business Equipment: Cash Register, ATM, TV set Frame
Personal Care: Massager, Vibrator, Malaxation Apparatus, Scrub Apparatus

Specification:
No Load
Voltage(V): 12
Speed(rpm) : 4480
Current(A) : 0.04

Rated
Torque (mNm):3.92
Speed (rpm):3490
Current (A):0.19
Output P.(W):1.44

Starting
Torque (mNm):17.7
Current (A) : 0.72

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

For Outline drawing and more specifications, please mail to sales@hengdrive.com to get them!
