22mm Metal Pushbutton Switches | Parts, Components & Electrical Supplies

Dailywell Ele Co Ltd

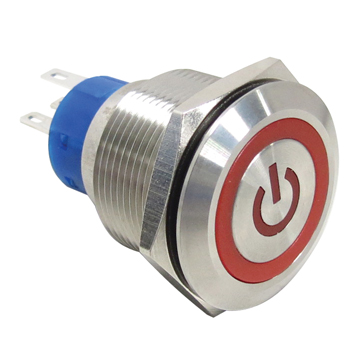

22mm Metal Pushbutton Switches

Model No.:

MPB22 Series

Brand:

Dailywell

Size:

22mm

Package:

Yes

Customised:

Yes

Max. Voltage:

250 VAC

Operating Temperature:

-22~55

Max. Current:

Mechanical Life:

1,000,000 cycles

Protection Level:

IP67/IK10

Description

Contact Supplier

Electrical Life: 50,000 make-and break cycles at full load
Body type: Stainless/Al alloy
Button type: Flat
Contact Configuration: 1NO 1NC/2NO 2NC
Operating type: Momentary/Lock
Light type: Without LED/Ring(moveable)/illuminated Ring witch led color, red/green/blue available only/illuminated ring with power logo only available in white cap/illuminated ring with power logo with led color, red/green/blue available only
LED: One Color/Dual Color
Terminal Plating: Silver/Golf
