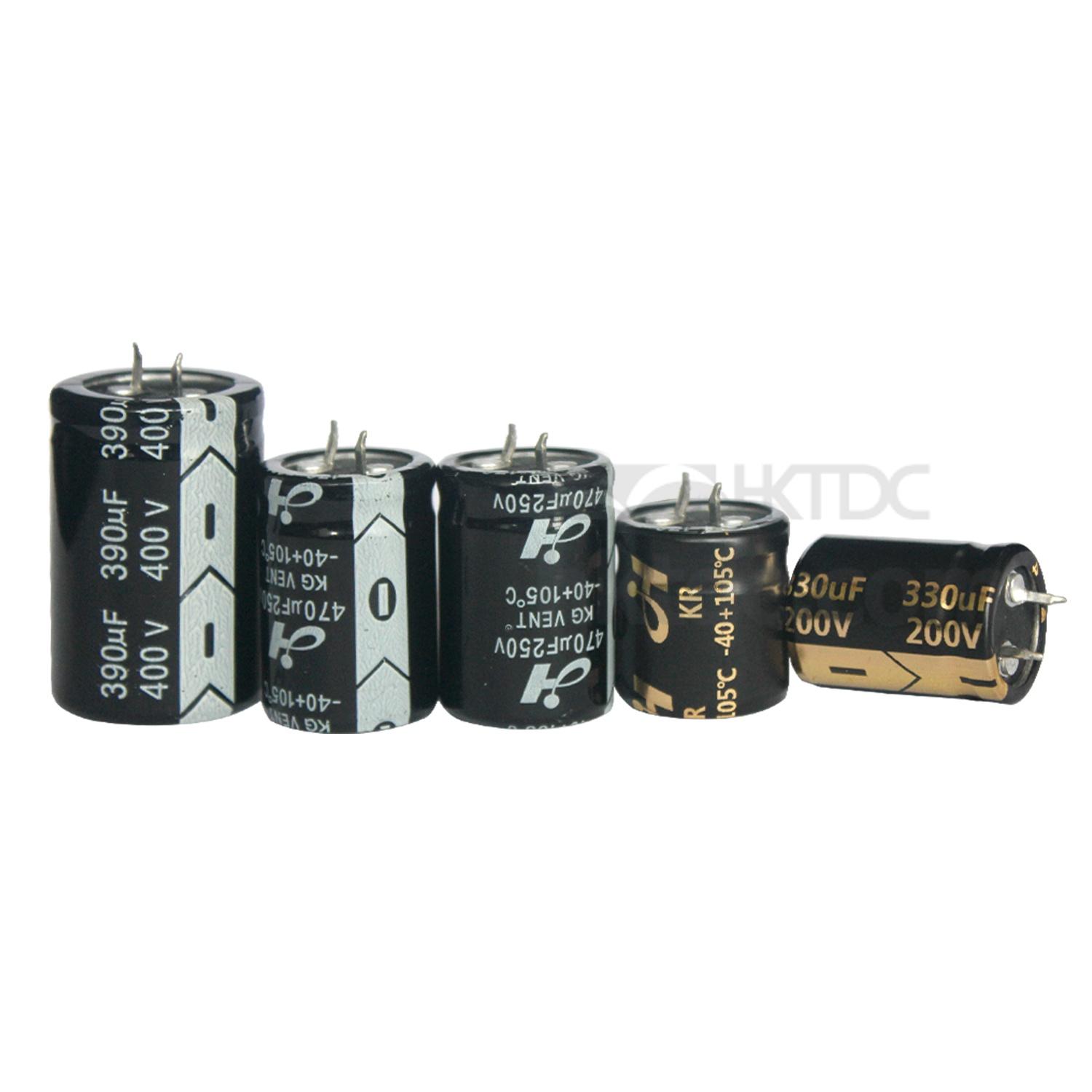

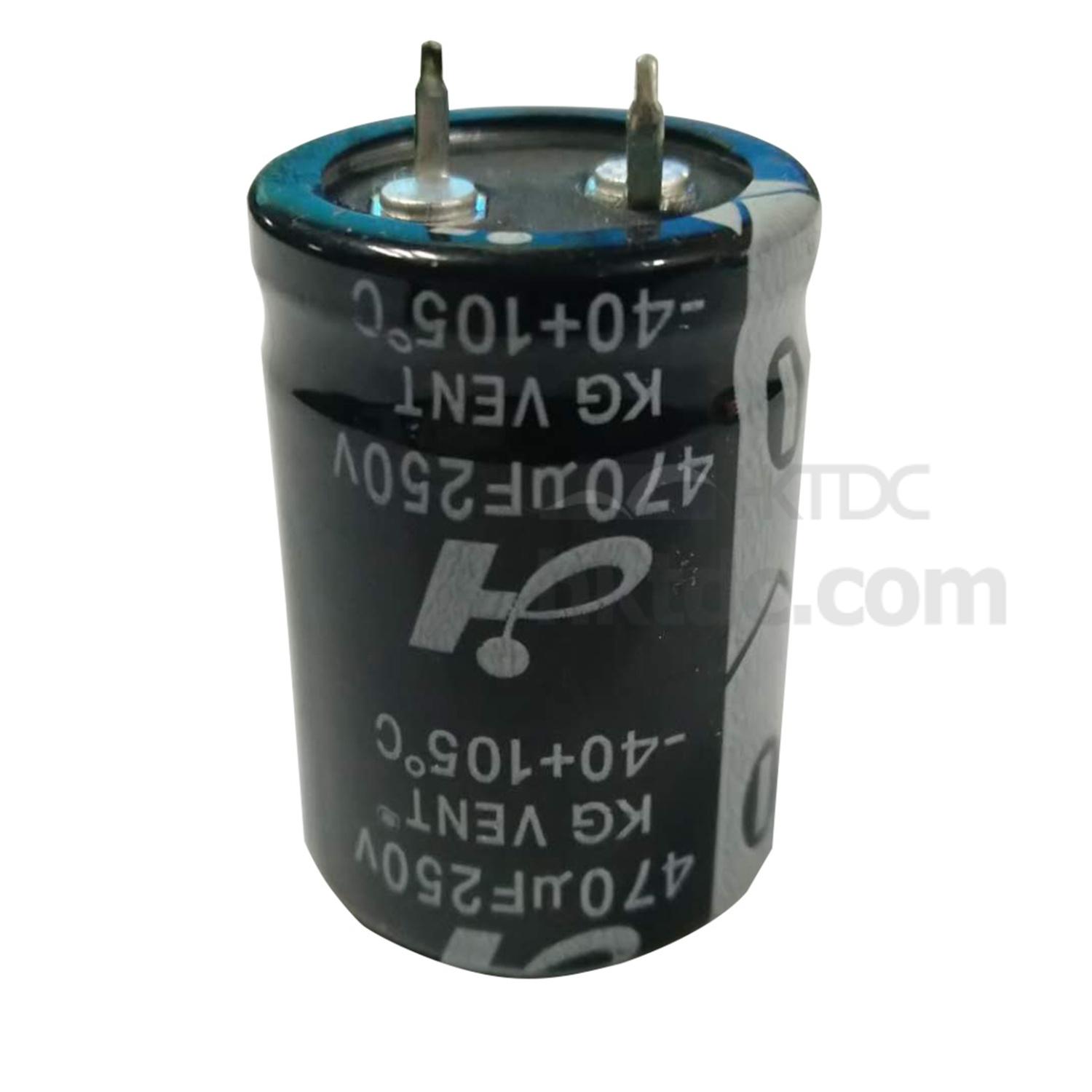

22mm Snap-in Capacitor
Share this page
Model No.:
KU/KR/KG
Brand:
JH
Colour:
Green, Black, Gold, Blue
Size:
22mm x 35mm
Port:
Shenzhen, Shanghai, Changsha
Type of Payment:
T/T L/C
Minimum Order Quantity:
50,000 piece(s)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
  • Rated Working Voltage Range
  • 额定工作电压范围. 6.3V-450V
  • Category Temperature Range
  • 工作温度范围 -40~+105℃
  • Capacitance Tolerance 静电容量允许偏差 ±20%(20℃,120HZ)
  • Leakage Current   漏电流(2分钟) WV≦100V WV≧160V I=Leakage Current(μA) 漏电流
  • I≦2√CV uA I≦3√CV uA C=Rated  Capacitance(μF)容量
  • V=Rated  Voltage (V)额定电压 Dissipation Factor(MAX)
  • (DF) 20℃,120HZ
  • Working Votage    额定电压(V)   6.3~10 16 25~35 50~63 80~100 160~400 450 DF(%)           损失角正切值 40 35 30 20 15 12 15
  • Low Temperature Characteristics (Max impedance Ratio)
  • 低温特性(阻抗比)Working voltage
  • 额定电压(V) 6.3~16 25 35 50~63 80~100 160~250 350~400 450
  • Z(-25℃)/Z(+20℃) 5 4 4 2 4 4 8 8
  • Z(-40℃)/Z(+20℃) 15 15 12 6 12 - - -
