Features:

• Comply with communication and medical safety certification
• touch current ≤ 100
• Energy Efficiency level VI
• Standby power consumption≤0.075W
• 5V/9V/12V output, up to 23W
• Working altitude 5000 meters
• Satisfy PD3.0 & QC3.0 Fast charging protocol

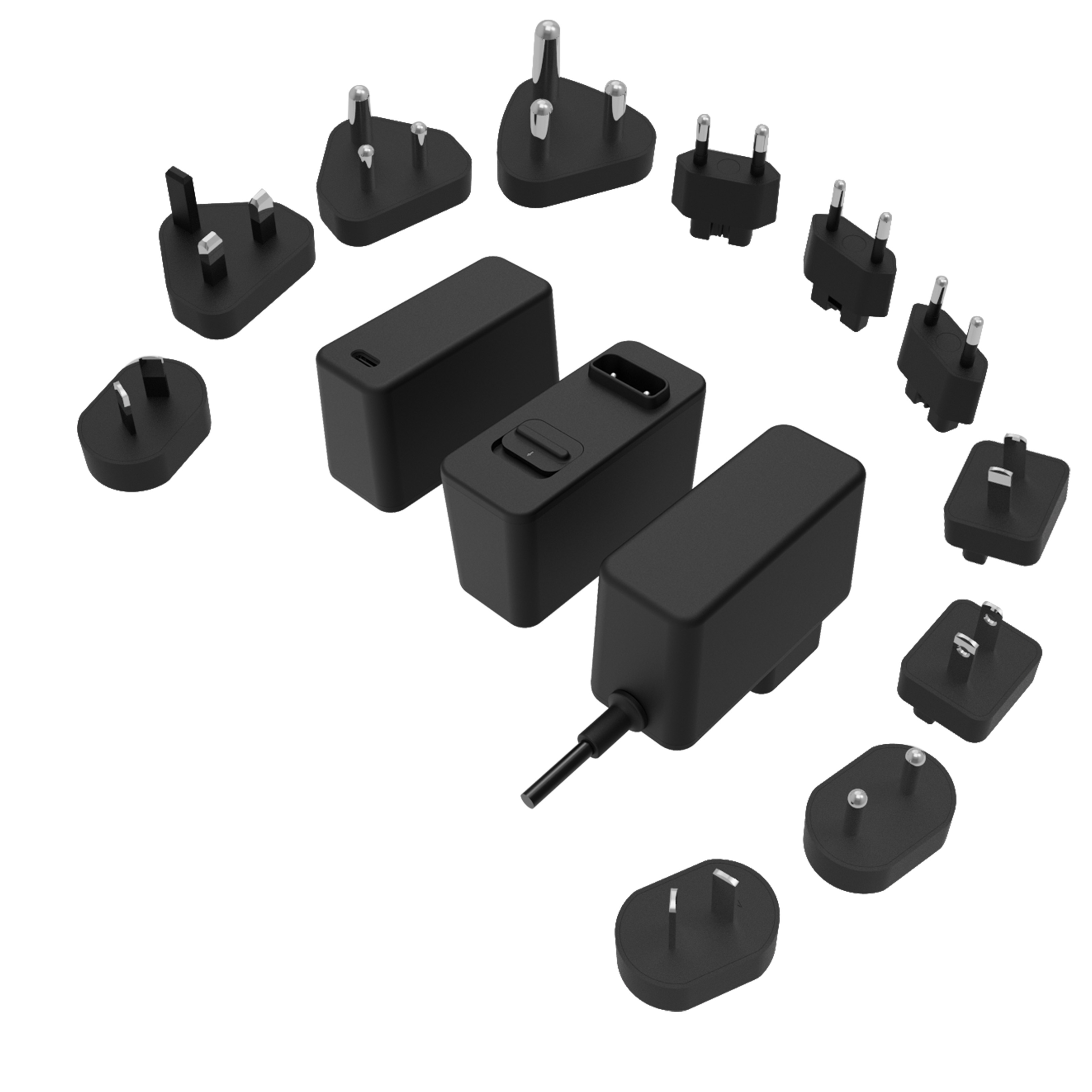

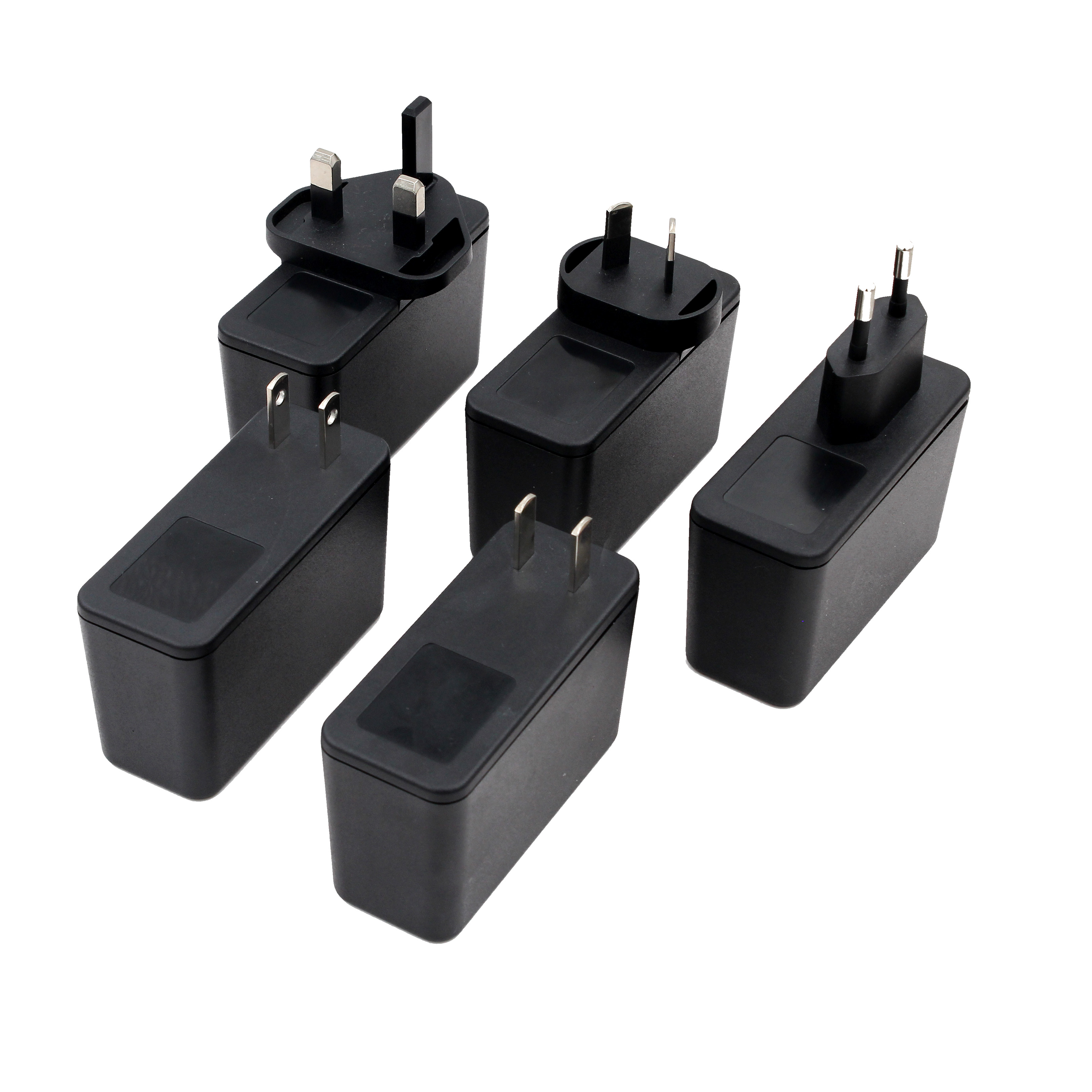

• Optional fixed plug/replaceable pins

Electrical specifications:

• Input voltage range: 100-240VAC
• Frequency range: 50-60Hz
• Input current: 0.8A, under 80VAC input conditions
• Standby power:  ≤0.075W
• Touch leakage current: ≤100μA
• MTBF: 100,000 hours at maximum load levels and an ambient temperature of 25°C (in correspondence with MIL-HDBK-217)

Environmental parameter:

• Operating temperature: 0 to 40°C
• Storage temperature: -40 to 80°C
• Operating humidity: 10% to 90% RH non condensing
• Storage humidity: 5% to 90% RH
• Operating altitude: 5000m

General:

• Dimensions: 76.5(L)  32.0(W)  45.0(H)mm
• Weight: 154g

Safety approval:

• CB(IEC60601-1)、TuV SUD/Mark（EN60601-1）
