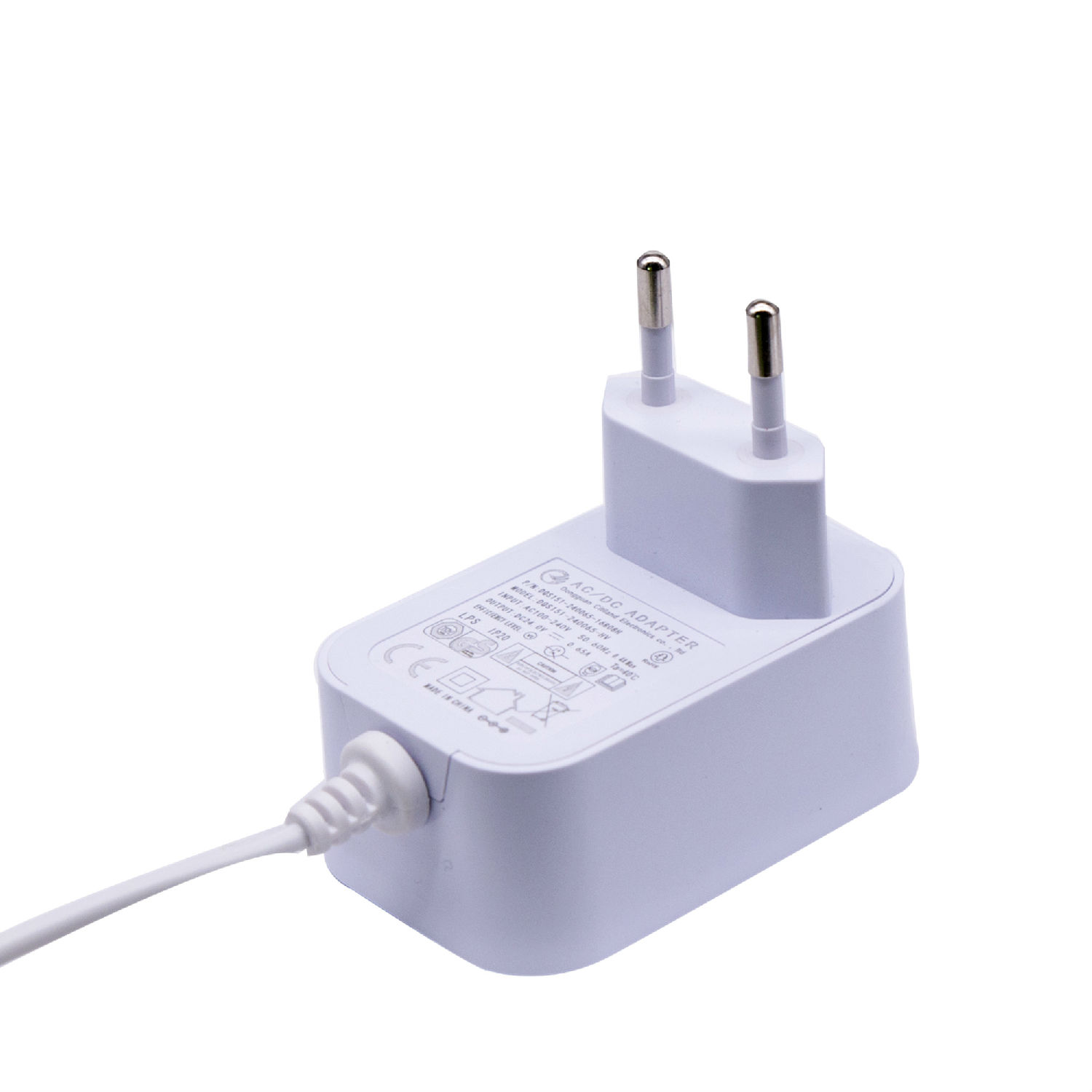

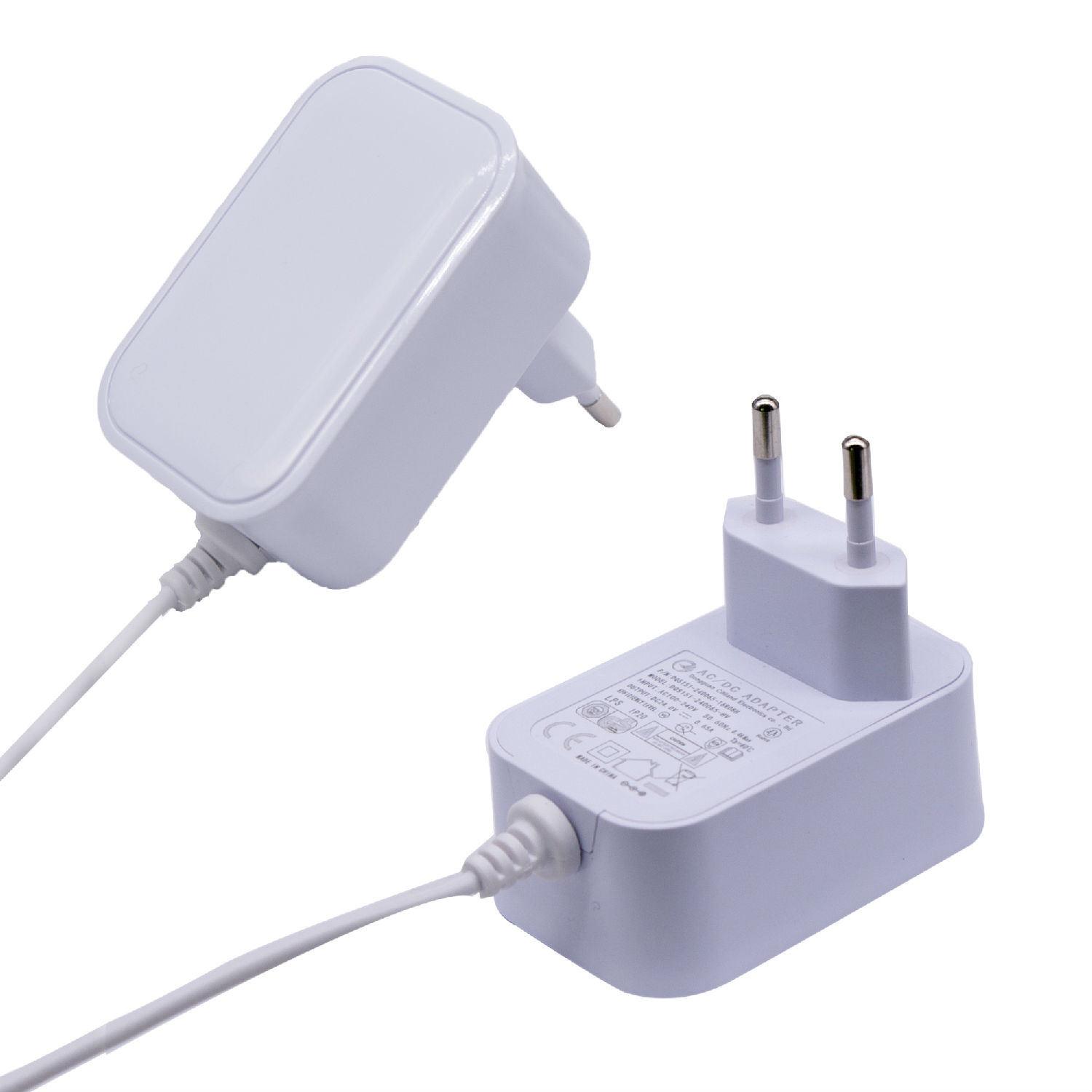

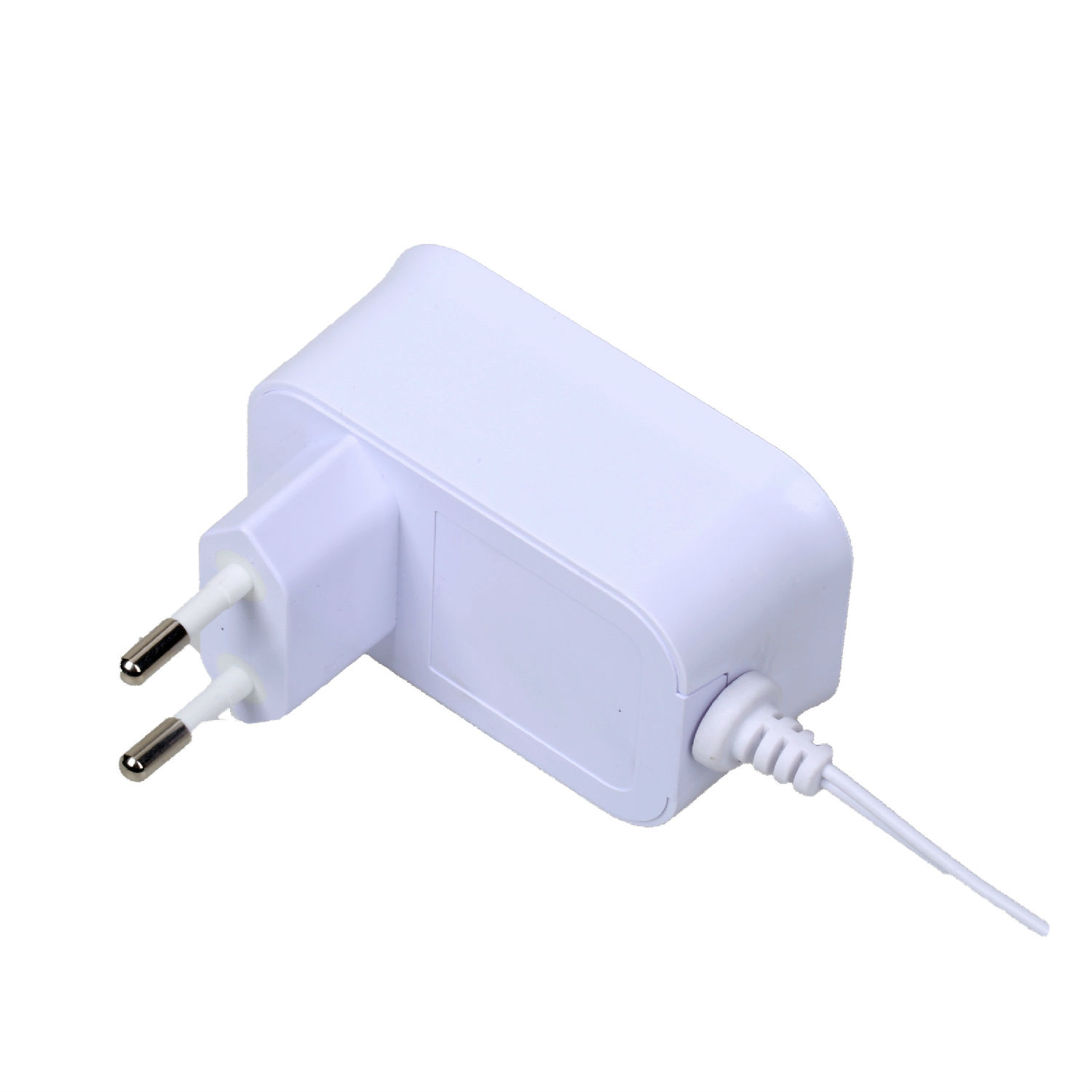

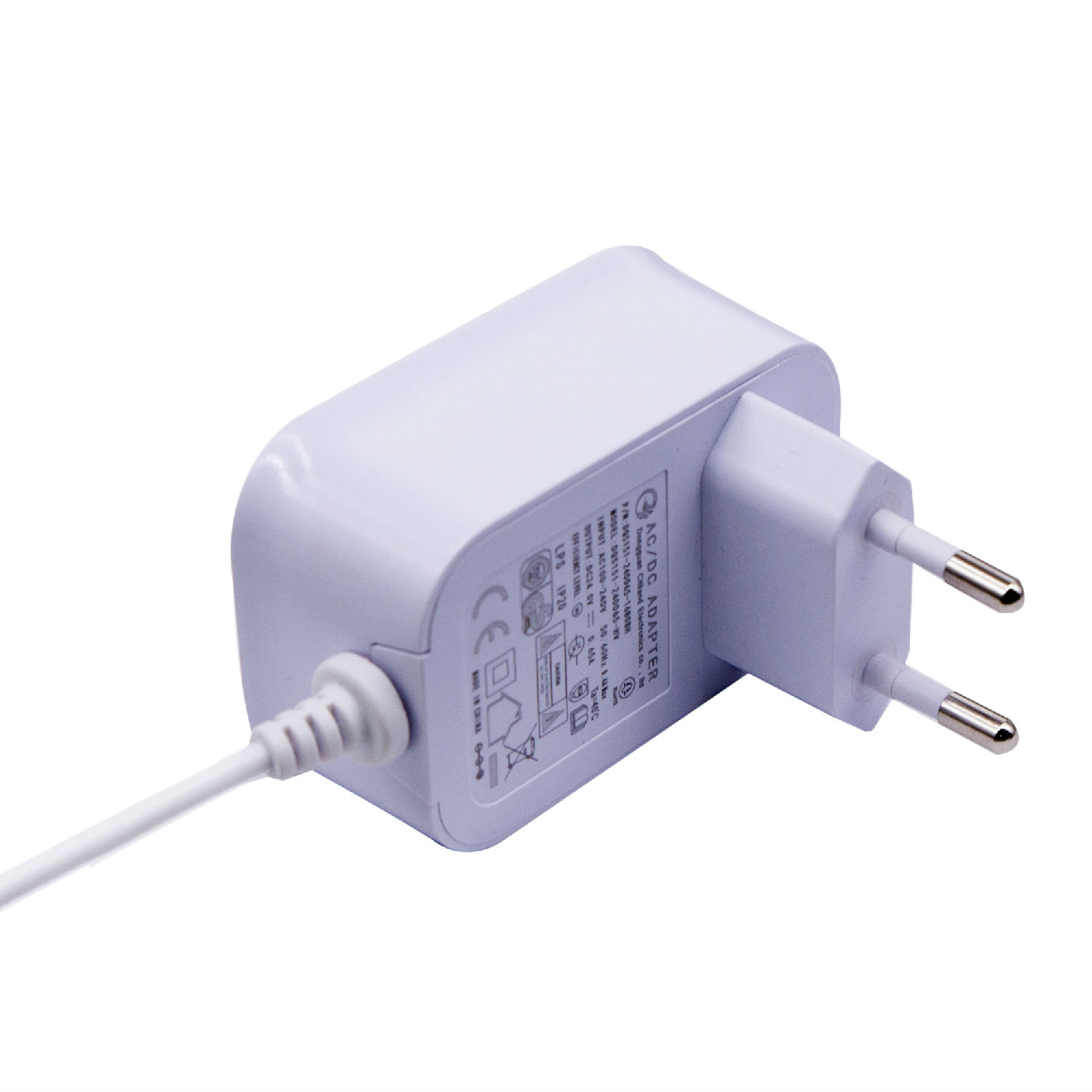

24V 0.65A EU AC/DC Adapter
Share this page
Model No.:
DQS151-240065
Brand:
Citiland
Colour:
Black, White
Size:
74x30x41.5MM
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
1,000 piece(s)
Features:
with Switch
Package:
Yes
Customised:
Yes
Output Type:
DC
Connection:
Plug In
Description
Contact Supplier
Description
24V 0.65A EU AC/DC Switching power adapter with EMC RoHs DOE Vi certificates for OEM
  • 18W series external wall-mount AC/DC adapter, 24V 0.65A
  • Switching power adapter (AC/DC adapter), class II, LPS, universal input
  • Customized designs are available
  • 100% full loading, 40°C, 4 hours each part of this series can be sold separately
  • MTBF: meet MIL-HDBK-217F over 50,000 hours, full loading, 25°C burn-in
  • Leakage current: 0.25mA, maximum at 264V AC
  • Withstanding voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary
Protections 24V 0.65A AC DC adapter:
  • Over-voltage protection
  • Over-current protection
  • Short-circuit protection
  • Thermal shutdown capability
Features of 5V/1A AC DC adapter:
  • High-reliability
  • High-efficiency consumption
  • With fuse, short-circuit protection
  • Environment-friendly, energy-saving, complying with the safe certification standard
  • Double insulated circuit board designed to protect your valuable gadgets from short circuit
Certifications of 5V/1A AC DC adapter:
  • AS/NZS 60950:2000 and AS/NZS 60065
  • UL 60950 and GB 4943-2001
  • PSE IEC 60950 and EN60065
  • CE (low-voltage directive)
  • EN 60950:2009 and EN 60065
  • Standards: US Energy Star,&
