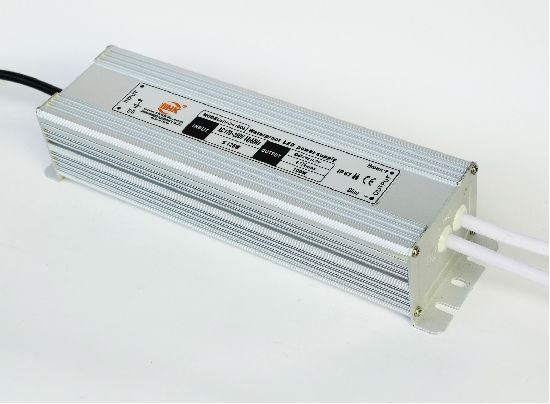

24V 100W Constant Voltage Waterproof LED Power Supply

Production Lead Time:

4 day(s)

Model No.:

HV-24100L

Brand:

HongKe

Colour:

Silver

Size:

248 x 66 x 52mm

Port:

Zhuhai

Type of Payment:

T/T, L/C

Minimum Order Quantity:

Description

Contact Supplier

Input voltage range: 170-250V AC.
Frequency range: 50-60Hz.
Input power: ≤125W.
Inrush current cold start: 40A/230V AC.
Leakage current: ≤0.75mA/240V AC.
Output DC voltage: 24±0.5V.
Rated current: 4.16A.
Rated power: 100W.
Ripple & noise: ≤600mVp-p.
Hold up time: ≤2s.
Protection over loading: 120-150%.
Short circuit protection type: hiccup mode, recovers automatically after fault condition is removed.
High temperature: 100℃±10℃ (protection type: shut down, re-power on to recover).
Environment working temperature: -25℃-40℃ (refer to output load derating curve).
Storage temperature: -40℃-60℃, 10-95% RH.
Voltage resistance: input-output AC 1.5kV/5mA 5s.
Input-housing: AC 1.5kV/5mA 5s.
Others IP rating: IP67.
Dimension: L249 x W66 x H52mm.
Packing: 325 x 275 x 185mm/10pcs/carton.
Weight: 13.9kg/10pcs/carton.
