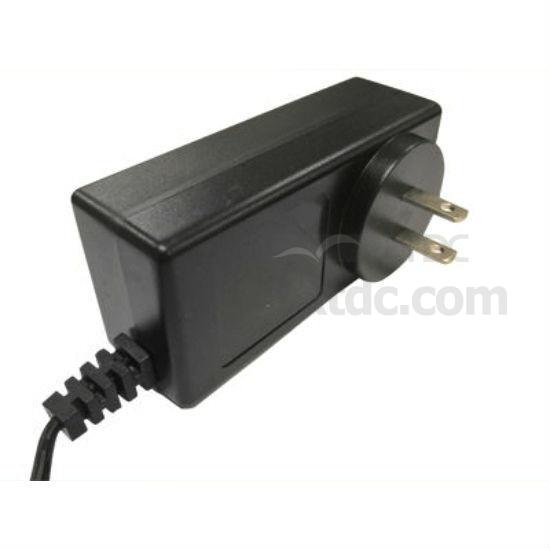

24V 36W Power Adaptors Video Monitor
Share this page
Production Lead Time:
5 day(s)
Model No.:
P240W1500U
Brand:
panfore
Colour:
White, Black
Package:
Yes
Customised:
Yes
Output Type:
DC
Connection:
Plug In
Usage:
Switching Power
Place of Origin:
Mainland China
Description
Contact Supplier
Description
Electrical specification
  • Input voltage range: 90~264Vac
  • Frequency: 50/60Hz
  • AC current: 0.8A
  • Inrush current: 30A/230Vac
  • Leakage current: 0.25mA/240Vac
  • AC connector: US plug
  • Output voltage: 24.0Vdc
  • Output voltage Range : 22.8 - 25.2Vdc
  • Output current: 1.5A
  • Line regulation: ±1%
  • Load regulation: ±5%
  • Efficiency: >85%
  • No load power consumption <0.3W
  • Protection: overload protection, short circuit protection
Environment
  • Working temp.: 0~40℃
  • Working humidity: 20%~90% RH non-condensing
  • Storage temp. & humidity: -20℃~85℃, 10%~95% RH
Safety approval
  • Approved by UL,CE, FCC, C-TICK
Dimension
  • 105mm x 45mm x 27.8mm (L x W x H)
