Product Description

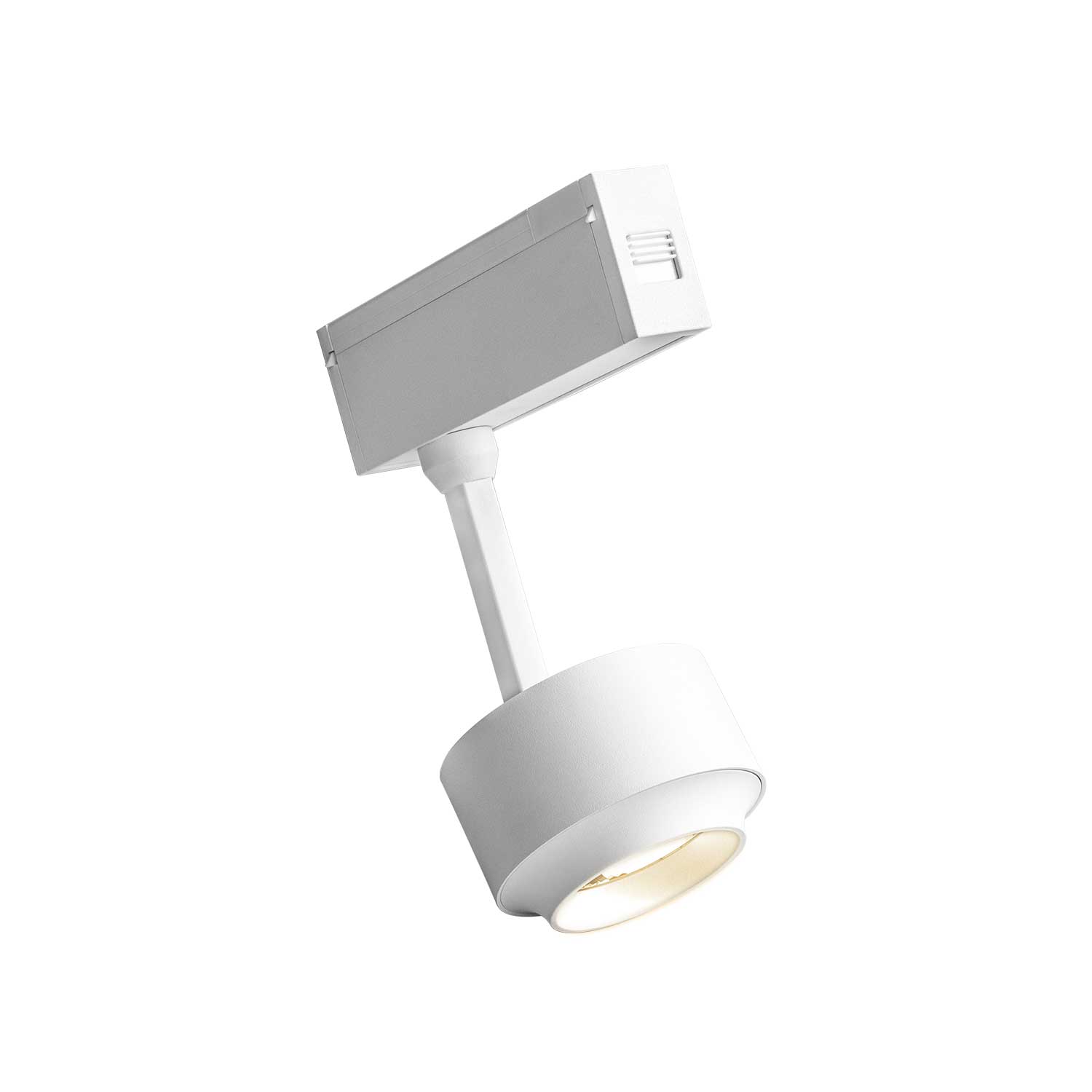

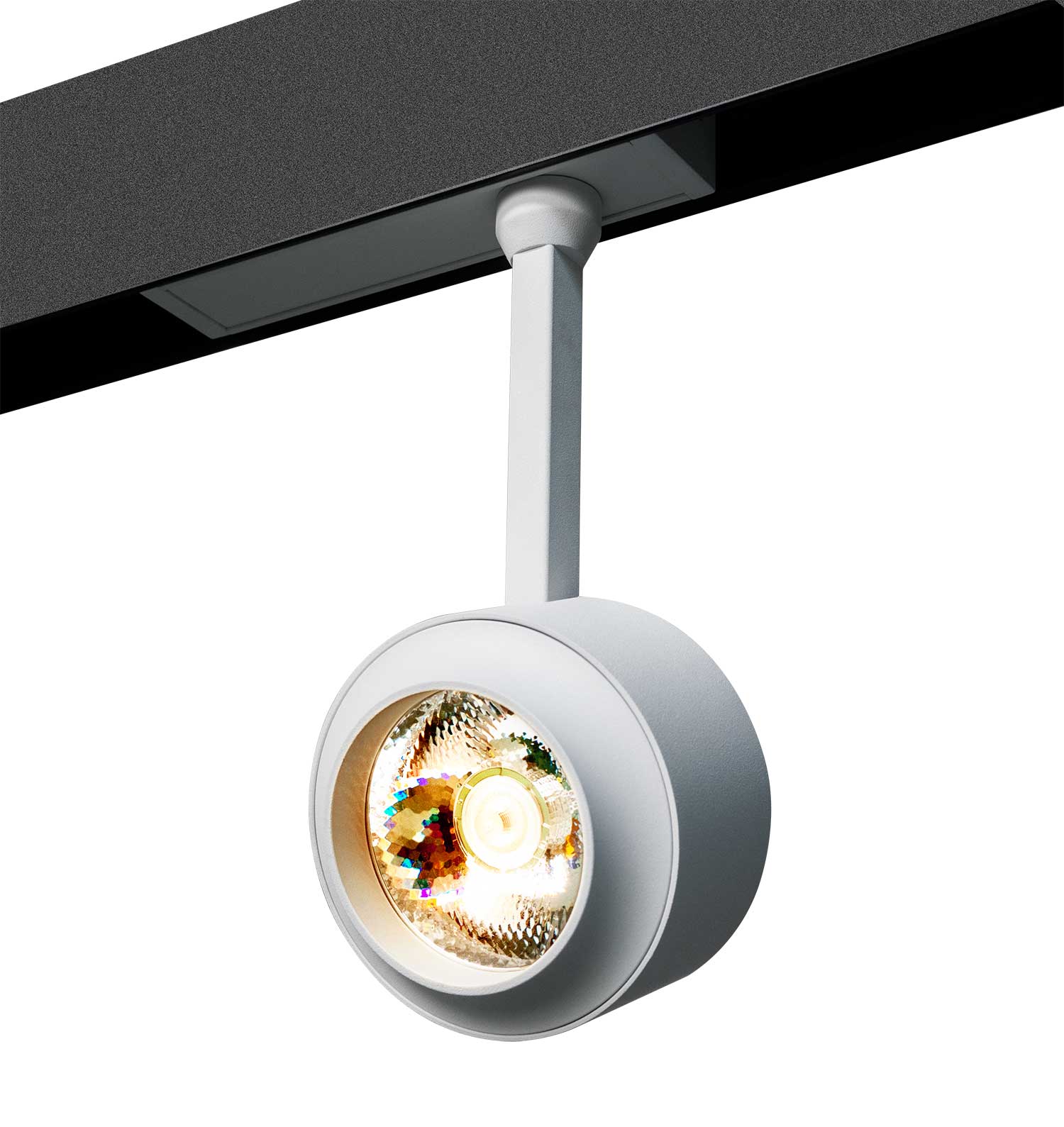

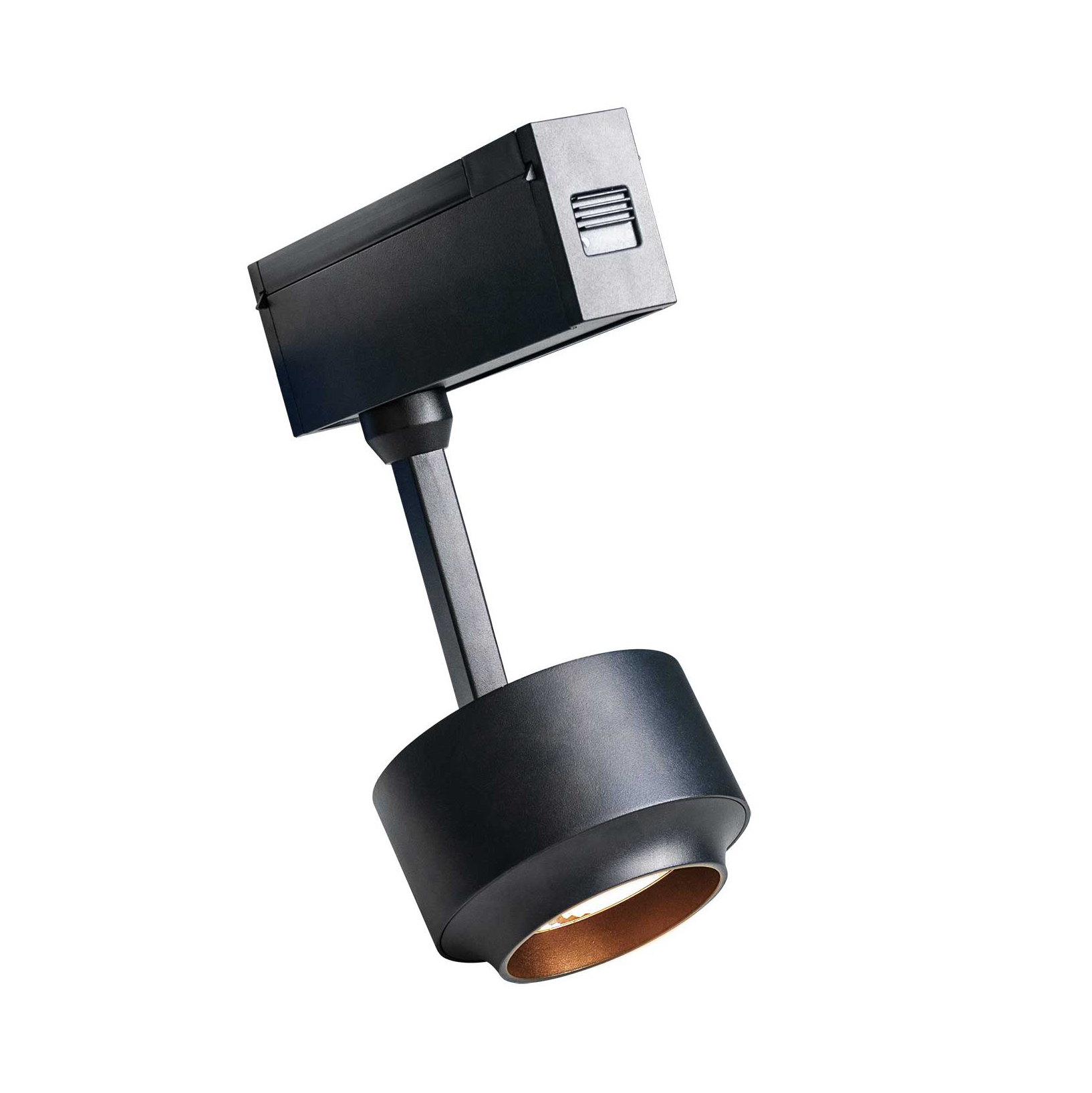

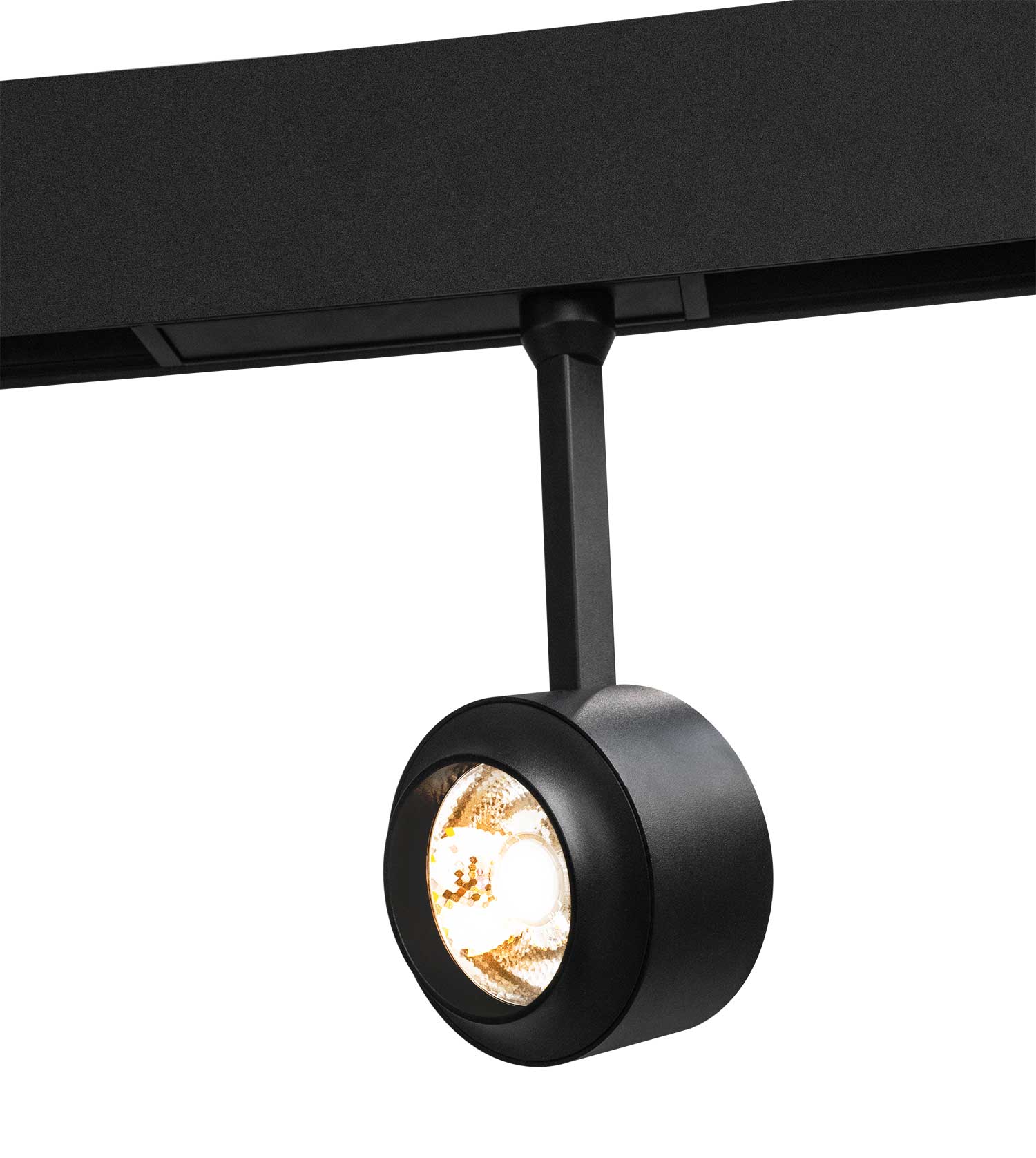

MAGNET LAMP-Gimbal Linear Spotlight:MS112 originally researched and developed by KWT, high-end spotlight with interior driver. 105mm diameter face cover, integrated molded lamp housing of CNC aluminum, use international top COB CITIZEN chip. Advanced design of ultra-thin hybrid optical lens, with first-rate lighting control effect, various beam angle 15°, 24°, 36° for option, stable specifications, glare-free, good heat sink, brilliant quality, more than 16,000 hours life span.

Technical Parameter

Nominal wattage                                                   15W

 Input Voltage                                                       DC 24V

 Color temperature                                              3000K/4000K/5000K

Color rendering index                                         Ra>90

Beam angle                                                         15°/24°/36°

3000K Luminous flux                                        15° 1181lm/24° 1155lm/36° 1122lm

 4000K Luminous flux Product color              15° 1299lm/24° 1247lm/36° 1164lm

Type of protection                                             IP20

Operation temperature                                     - 20℃- 50℃

Warranty                                                            3 years

Product features

1.Exclusive combination of magnet and light

2.High efficacy, high illuminance

3.Glare-free design, perfect light spot and accurate beam angle make surroundings of comfortable illumination

4.DC 24V Safetly Input Voltage

5. Beautiful and generous linear design Rotatable vertical 90°

6.Revolutionary product uses ＂Magnets＂instead of traditional fasteners to create the simplest available installation

7.High quality, more than 40,000 hours life span.

Installation

1.Please install the related track rail before install the light

2.Aim the light to the track rail then push up

3.Adjust the track light’s light direction, the switch on

Note: when the lamp is taken out, it is also necessary to buckle the safety card with both hands.
