24mm Hair Curler Brushless DC Motor

Production Lead Time:

30 day(s)

Model No.:

B2418M

Brand:

Hengdrive

Colour:

Metal

Size:

24*18mm

Port:

SHENZHEN / HONGKONG

Type of Payment:

prepayment 30%, balance Cash Before Delivery

Minimum Order Quantity:

3000PCS

Package:

Yes

Customised:

Yes

Description

Contact Supplier

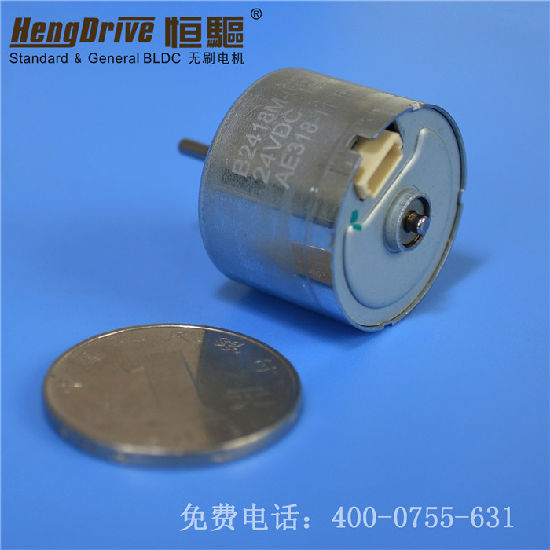

B2418M Brushless DC Motor
Output Power: 1W~6W Weight: 30g (Approx.)

Typical Application
Home Application: White Goods, Small Appliance, Small Fanner, Electric Cooker
Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine
Industry Apparatus: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump
Business Equipment: Printer, Copier, Projector, Scanner, Cash Register, Card Sender
Personal Care: Hair Curler, , Hair Straighter, Hair Dryer, Electric Shaver, Massager, Vibrator

Specification:
No Load
Voltage(V): 24
Speed(rpm) : 8660
Current(A) : 0.055
Rated
Torque (mNm):2.94
Speed (rpm):6690
Current (A):0.169
Output P.(W):2.06

Starting
Torque (mNm):12.8
Current (A) : 0.55

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

For Outline drawing and more specifications, please mail to sales@hengdrive.com to get them!
