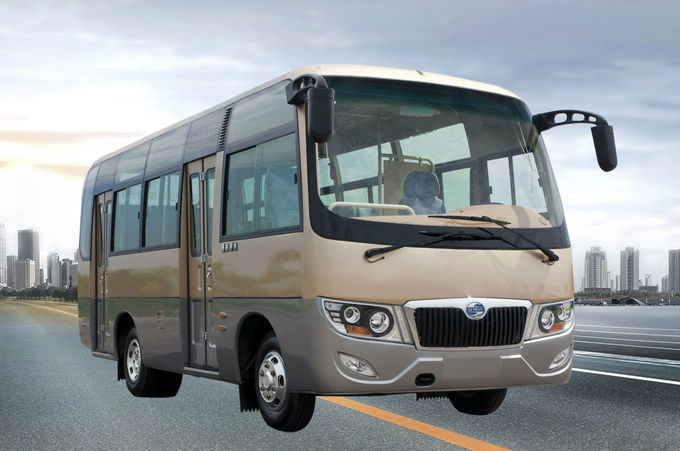

Model: LS6670 series
Manufacturer: Zhongche Auto Service Group Xi’an Lishan Automobile Factory
Dimension (mm): 6660, 6668 x 2280 x 2760, 3000
Lot of Annoucement
182
Label
Lishan
Identify code of Bus
LGF178FG×××××××××
LGF178GG×××××××××
Suspension front/ bear(mm)
1235/2125
Rated passenger(Including Driver)
24-25
Approaching/Leaving Angle
19/14
Max Speed(km/h)
95
Kerb Mass(Kg)
4400,4500
Overall Weight(Kg)
6500
Chassis Model
Engine Model
Manufacturer of Engine
Displacement
Power
EQ6570K3AC1
YC4F100-30
CY4102-C3E
CY4102-C3F
4DW93-84E3
Yuchai Machinery Co.,Ltd
Dongfeng Chaoyang Diesel Engine Dongfeng Chaoyang Diesel Engine
FAW Jiefang Wuxi Diesel Engine
2659
3856
3856
2540
75
75
70
67
EQ6570K3AC
YC4F115-30
YC4FA115-30
CY4102-D3A
YN33CR
YN33VE
YZ4DA3-30
CY4102-C3C
SD4M3E
Yuchai Machinery Co.,Ltd
Yuchai Machinery Co.,Ltd
Dongfeng Chaoyang Diesel Engine
Kunming Yunnei power
Kunming Yunnei power
Yangzhou Diesel Engine
Dongfeng Chaoyang Diesel Engine
Jiangsu Sida Power Mechanical
2659
2982
3856
3298
3298
3660
3856
3299
85
85
88
79
81
81
88
82
Fuel
Diesel
Standard of Displacement
GB3847-2005,GB17691-2005 Ⅲ
Number of Wheel
2
Number of Tyre
6
Wheelbase
3300
Tyre
6.50-16,6.50R16,7.00-16,7.00R16
Front/rear suspension
2500/4000
Tread front
1750
Number of Steel PlateSpring lamination
8/10
Tread rear
1586
Optional Equipment
- The Length of equipped with chassis EQ6570K3AC is 6668mm
- The weight and height of equipped with top air condition is 4500kg and 3000mm
- Out-swing door, outer luggage rack, rear-view mirror, fixed or movable window
- Front/rear combined light, inlet grille
