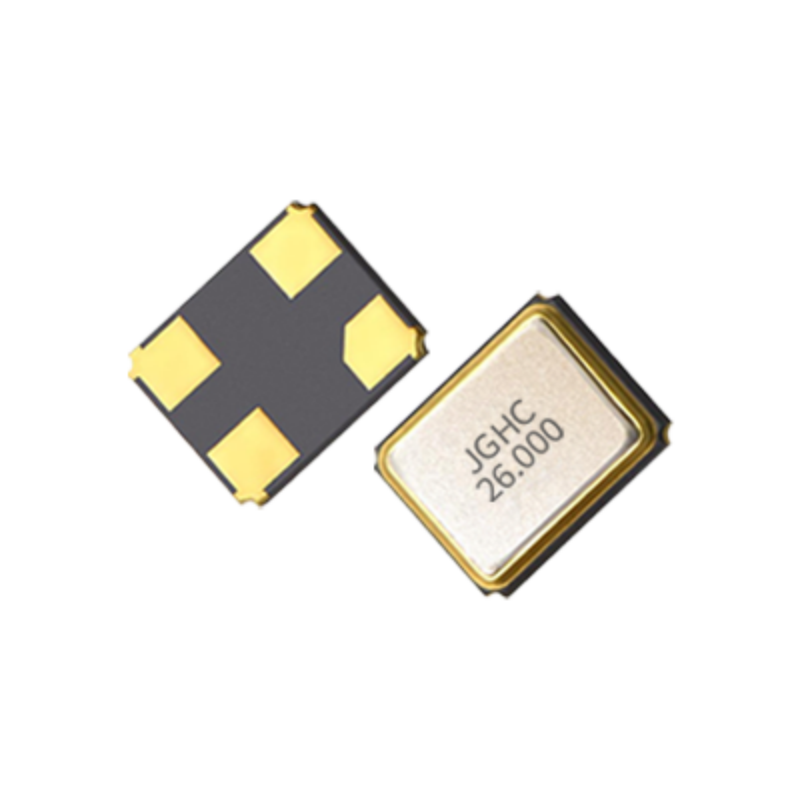

2520 SMD Crystal 12MHz-54MHz Xtal
Brand:
JGHC晶光华
Customised:
Yes
Model No.:
S22
Size:
2.5x2.0x0.55mm
Nominal Frequency:
12-54MHz
Load Capacitance:
20pF or specif
Frequency Difference:
±20ppm or specif
Description
Contact Supplier
Description
SMD Seam Sealing Crystals 2.5x2.0x0.55mm S22 Series
Extremely small SMD type crystal units
High precision and high frequency stability
Extremely good for reducing EMI effect
The best choice of Bluetooth , Wi-Fi and other short range wireless communication
RoHS Compliant / Pb Free
Crystals specifications
ITEMS/TYPE | S22 |
Frequency Range | 12~54MHz |
Load Capacitance | 8pF, 10pF, 12pF, or specify |
Frequency Tolerance (at 25°C) | ±10ppm, ±20ppm, or specify |
Frequency Stability Over Operating Temperature Range | ±10ppm, ±20ppm, or specify |
Operating Temperature Range | -40~+85°C, or specify |
Shunt Capacitance (C0) | 3pF Max. |
Drive Level | 1~200μW (100μW typical) |
Aging (at 25°C) | ±3ppm/year Max. |
Storage Temperature Range | -40~+125°C |
Dimensions and patterns(unit:mm)
