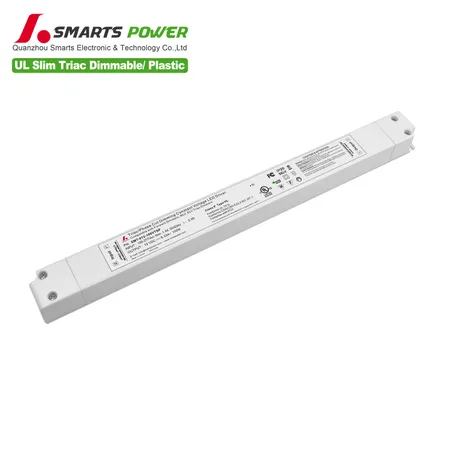

277Vac 12V 100W Triac Dimming Ultra Slim LED Driver
Production Lead Time:
7 day(s)
Weight:
0.55 Kg
Model No.:
SMT-012-100VTSP
Brand:
SMARTS
Colour:
White
Size:
330 x 32 x 23mm(L x W x H)
Port:
Xiamen
Type of Payment:
PayPal, Western Union, Bank Transfer, Private Account, Alibaba Trade Assurance
Minimum Order Quantity:
1
Power:
High Power
Fitting:
LED Driver
Strip light:
Flexible, Mini, Linkable, Multi-Colour, Heavy Loading
Certification:
RoHS , UL
Warranty:
7 year(s)
Output Voltage(V):
12DC
Input Voltage(V):
100-277AC
Input Signal:
Single Input
Output Signal:
Single Output
Description
Contact Supplier
Description
Description
- Input volt.:100-277Vac
- Output: 12vDC @8.33A 100w
- Efficiency: >98%
- PFC: >0.95
- Size: 330*32*23mm
- Net weight: 500g/pc
- Case material:Plastic
- Waterproof rate:IP20
- CE,ROHS approval
- Warranty: 7 years
- Cooling by nature
- 100% full load burn-in test
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Passed high, low temperature and waterproof testing.
- Integrity protection,over loading, over voltage ,over current.
- 8Hrs and 100% full load burn-in test.
- Working Temperature : -40 ~ +60°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- Safety Standards :EN61347-1 EN1347-2-13
- Withstand Voltage : I/P-O/P: 3.75KVAC
- Isolation Resistance : I/P-O/P:100MΩ/500VDC/25°C/70%RH
- EMC EMISSION: Compliance to EN55015, EN61000-3-2(>=50%load)
- EMC IMMUNITY: EN61000-4-2,3,4,5,611(Surge 4KV)
