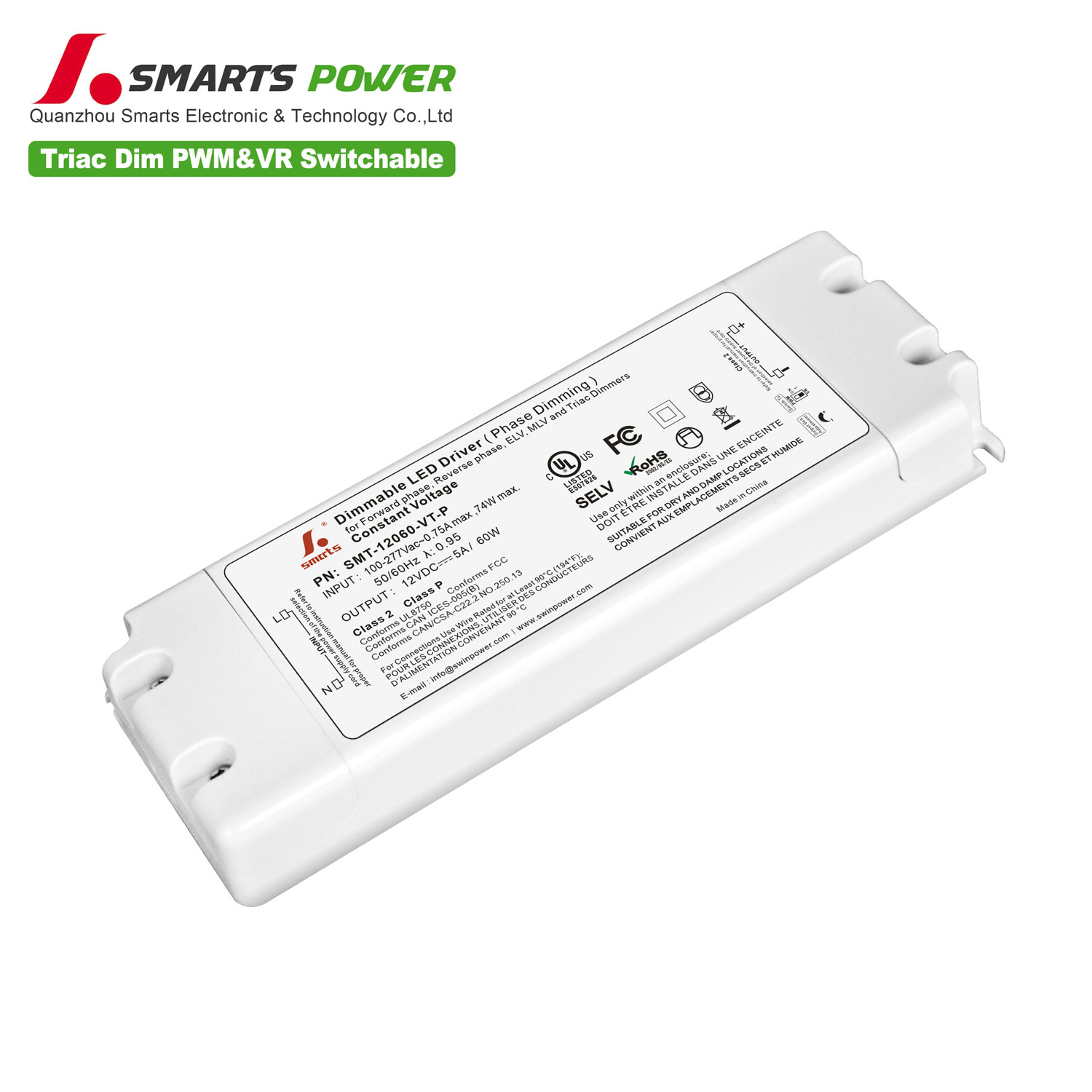

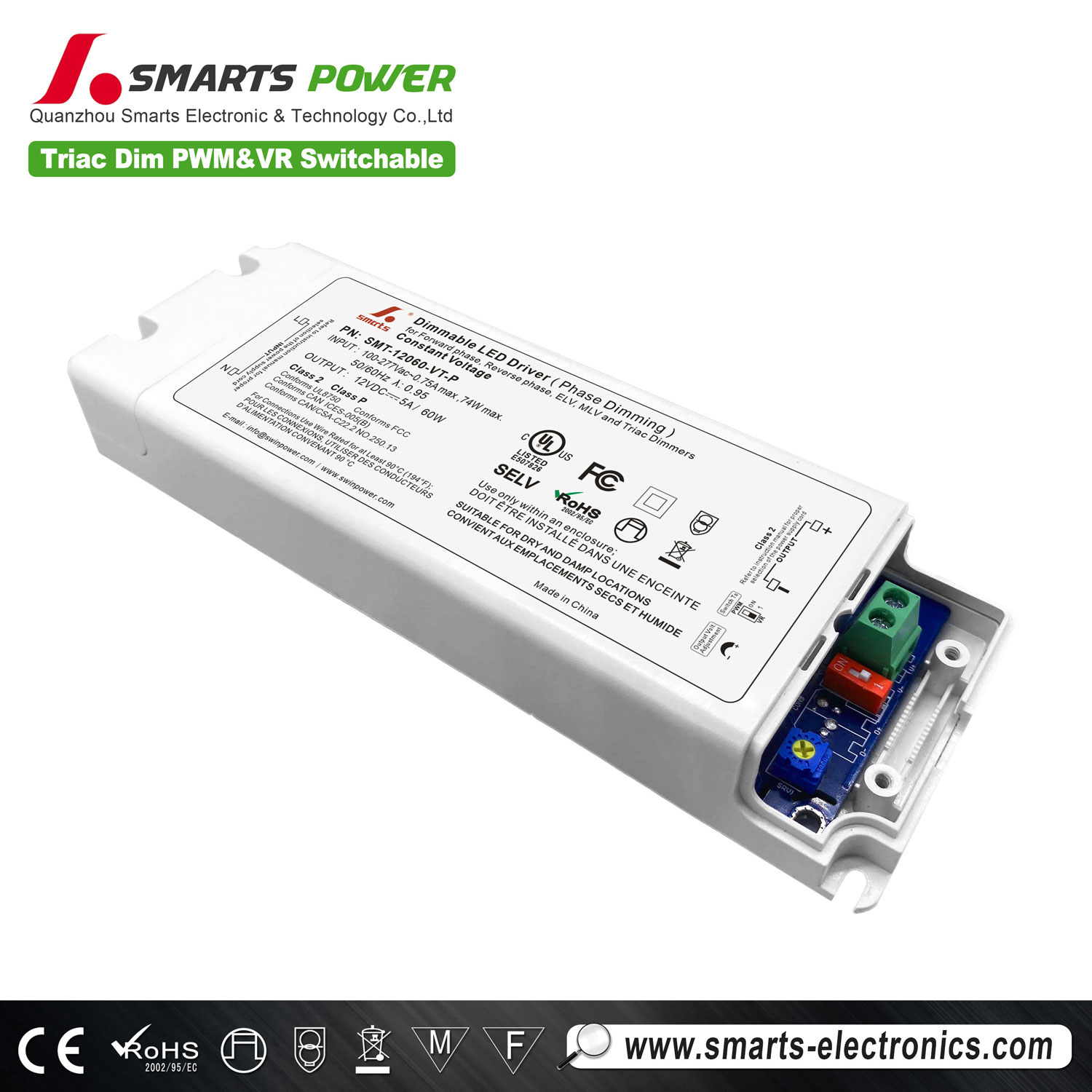

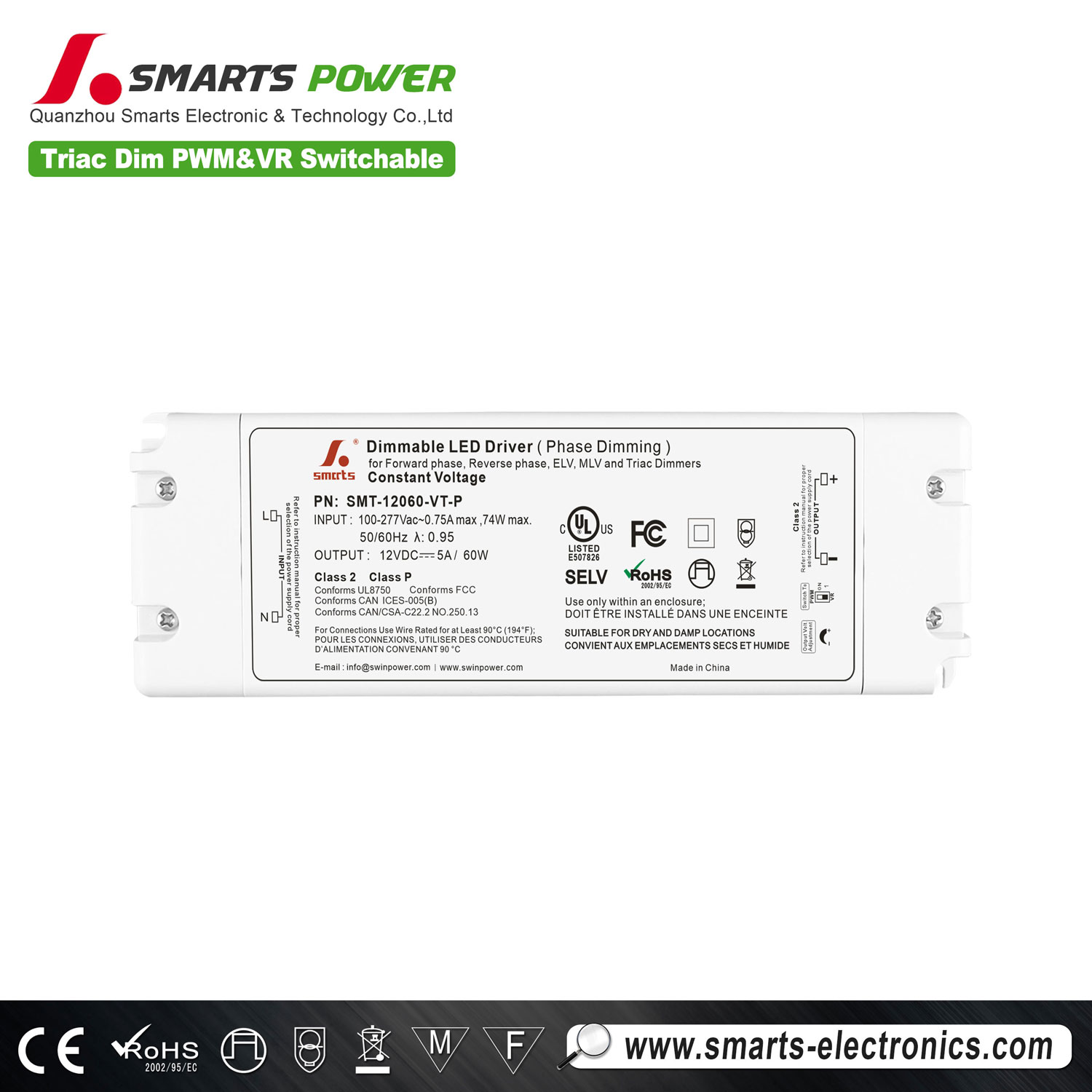

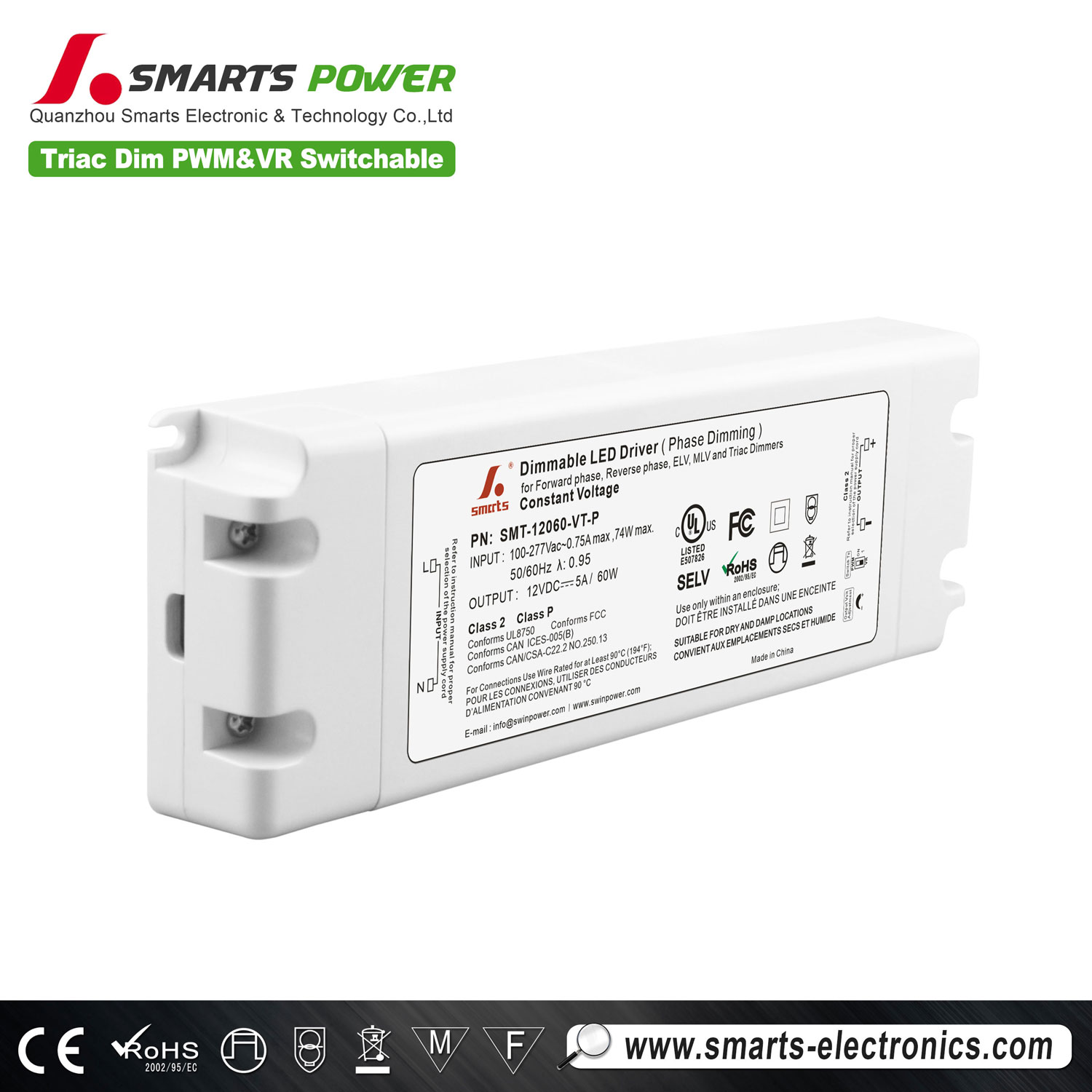

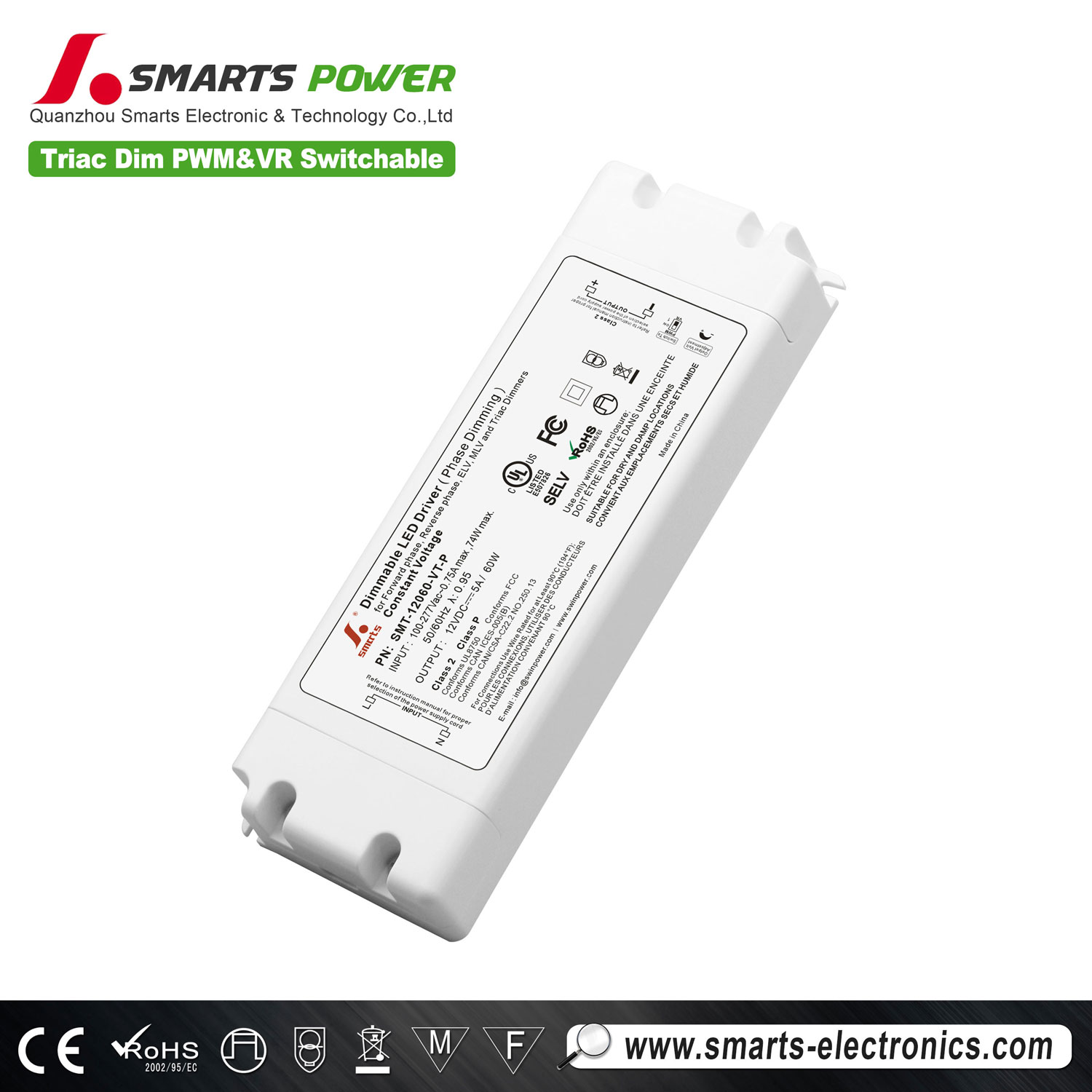

277Vac Triac Dimming LED Power Supply 60W 12V 24V LED driver PWM & VR output Switchable

Range:

100-277VAC

Brand:

SMARTS

Model No.:

SMT-12060-VT-P

Dimming Function:

Phase dimming: work with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers

Working Mode:

Constant Voltage

Warranty:

7 Years Warranty

Dimming Range:

0-100% Dimming depth 0.1%

Protections:

Short circuit/ over load/ over temperature

Description

Contact Supplier

Model		SMT-12060-VT-P	SMT-24060-VT-P	SMT-48060-VT-P
Certificate		UL / cUL / FCC / Class P / Type HL / Class 2
Output	DC Voltage	12V	24V	48V
	Voltage Tolerance	±5%	±3%	±2%
	Voltage Regulation	≤0.5%	≤0.5%	≤0.5%
	Load Regulation	≤2%	≤1%	≤1%
	Rated current	5A	2.5A	1.25A
	Rated power	60W
	Voltage Ripple	500mVp-p	450mVp-p	450mVp-p
	Overshoot voltage	<7%(full load)	<5%(full load)	<5%(full load)
	Output mode selection	When the purple wire and the pink wire at the output terminal are short-circuited, it indicates the Pulse-Width Modulation (PWM) mode. When they are disconnected, it indicates the Voltage Regulation (VR) mode of direct current voltage modulation.
		Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect.
Input	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor (Typ.) @ full load	>0.98@120VAC >0.97@277VAC	>0.98@120VAC >0.97@277VAC	>0.98@120VAC >0.97@277VAC
	THD(Typ. ) @ full load	<15%@120V <15%@277V
	Efficiency(Typ.) @ full load	≥83%@120VAC ≥84%@277VAC	≥83%@120VAC ≥85%@277VAC	≥84%@120VAC ≥86%@277VAC
	AC Current (Max.)	≤0.75A @120VAC ≤0.3A@277VAC
	Standby power	≤0.5W
	Inrush Current (Typ.)	31.6A,152us@50%Ipeak 120VAC 76.8A,156us@50%Ipeak 277VAC
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, can be automatically restored after abnormal removal
	Over Load	≥120%,Constant - Current Mode, automatic recovery after exception
	Over temperature	When the ambient temperature exceeds 55℃ ±5℃, the output is turned off
Environment	Working TEMP.	-40~+40℃ (see below derating curve)
	Working Humidity	20 - 95%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH non-condensing
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each
Safety & EMC	Safety standards	UL8750 CAN/CSA-C22.2 No.250.13
	Withstand voltage	I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:0.5KVac
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH
	Surge Immunity Test	AC Power Line:Differential Mode 2KV,Common Mode 4KV
	EMC Immunity	FCC/ICES do not request this test
	EMC Emission	FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5
Others	Net Weight	0.5KG
	Dimension	18861.425.5mm(LWH)
	Packing	415230170mm 20 pcs / CTN
Notes	1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
	2. Tolerance: includes set up tolerance and load regulation .
	3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
	4. Default states:The output mode is PWM output by default. The dimming curve is a gamma2.2 curve.
	5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10.
