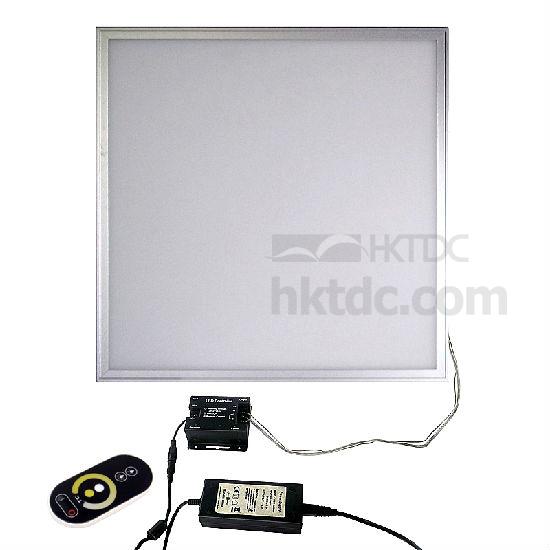

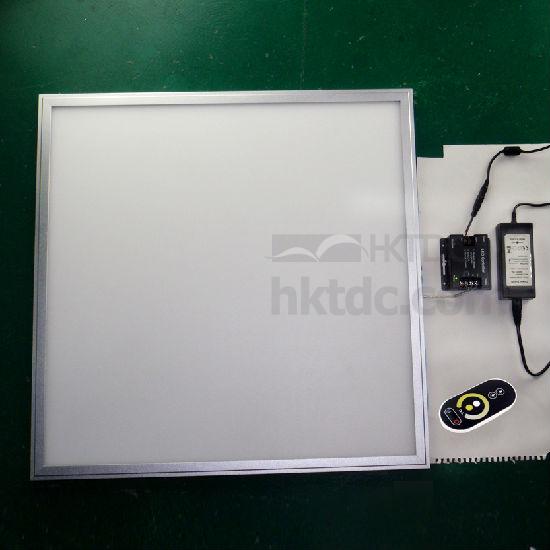

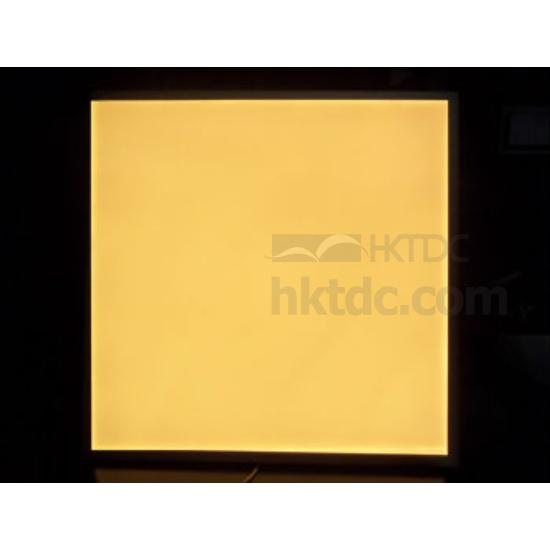

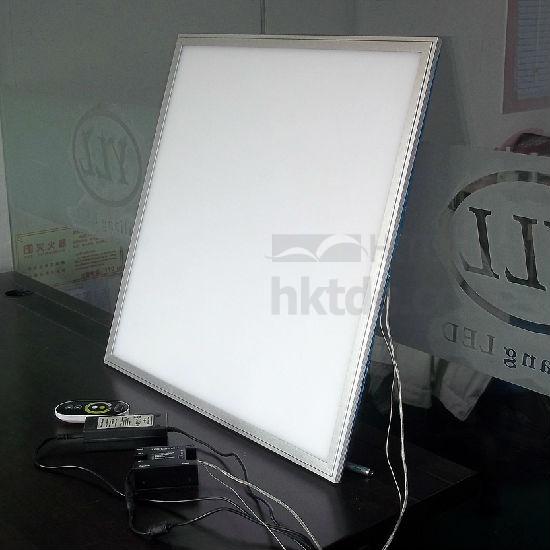

2835SMD LED Panel Light Dimmable

Model No.:

YLL-PL-2835SMD-Dim

Brand:

YLL

Colour:

Warm White, Pure White

Type of Payment:

T/T, Paypal, L/C at sight, Western Union

Description

Contact Supplier

2835SMD, 300 x 300mm, LED panel light dimmable:

Power: 14 ± 1W.
Voltage: AC 100-240V.
Size: 300mm x 300mm, thickness: 10mm.
Luminous flux: ≥1100lm ± 5%.
Color temperature: 4000-5000K.
Lighting source: SMD2835, 0.2W/pc, 56pcs.
Light efficiency: 81lm/W.
Power factor: 0.92.
CRI: >75.
Beam angle: 170°, side view.
Materials: aluminum alloy, light guide panel, diffuser panel.
Power supply: outside-isolated driver.
Protection rate: IP50.
Operation temperature: -20℃-50℃.
Working temperature: -25℃-70℃.
Life-span: >50000 hours.
2 years warranty.
Package: G.W.: 1760g, 5pcs/ctn, N.W.: 8.8kg/ctn, G.W.: 10.5kg/ctn, ctn size: 436 x 400 x 350mm.
Remark: dimmable or non-dimmable are both available.

27W, 2835SMD, 300 x 600mm, LED panel light dimmable:

Power: 27± 1W.
Voltage: AC 100-240V.
Size: 300mm x 600mm, thickness: 10mm.
Luminous flux: ≥2367lm ± 5%.
Color temperature: 4000-5000K.
Lighting source: SMD2835, 0.2W/pc, 144pcs.
Light efficiency: 81lm/W.
Power factor: 0.92.
CRI: >75.
Beam angle: 170°, side view.
Materials: aluminum alloy, light guide panel, diffuser panel.
Power supply: outside-isolated driver.
Protection rate: IP50.
Operation temperature: -20℃-50℃.
Working temperature: -25℃-70℃.
Life-span: >50000 hours.
2 years warranty.
Package: N.W.: 3800g, 5pcs/ctn, N.W.: 19kg/ctn, G.W.: 20.6kg/ctn, ctn size: 740 x 400 x 350mm.
Remark: dimmable or non-dimmable are both available.

48W, 2835SMD, 600 x 600mm, LED panel light dimmable:

Power: 48 ± 1W.
Voltage: AC 100-240V.
Size: 600mm x 600mm, thickness: 10mm.
Luminous flux: ≥3820lm ± 5%.
Color temperature: 4000-5000K.
Lighting source: SMD2835, 0.2W/pc, 192pcs.
Light efficiency: 81lm/W.
Power factor: 0.92.
CRI: >75.
Beam angle: 170°, side view.
Materials: aluminum alloy, light guide panel, diffuser panel.
Power supply: outside-isolated driver.
Protection rate: IP50.
Operation temperature: -20℃-50℃.
Working temperature: -25℃-70℃.
Life-span: >50000 hours.
2 years warranty.
Package: N.W.: 5000g, 5pcs/ctn, N.W.: 25kg/ctn, G.W.: 28.1kg/ctn, Ctn size: 740 x 700 x 350mm.
Remark: dimmable or non-dimmable are both available.
