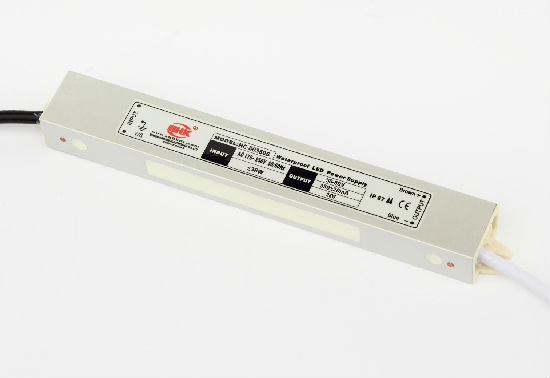

28W 350mA 50-80V IP67 Constant Current LED Driver

Production Lead Time:

3 day(s)

Model No.:

HC-80350B

Brand:

HONGKE

Colour:

Silver

Size:

220 x 29 x 20mm (L x W x H)

Port:

Zhuhai, Shenzhen

Type of Payment:

T/T, L/C

Minimum Order Quantity:

50 piece(s)

Description

Contact Supplier

Model: HC-80350B.
Input voltage range: 170-250V AC.
Frequency range: 50～60Hz.
Input power: ≤38W.
Inrush current cold start: 25A/240V AC.
Leakage current: ≤0.75mA/240V AC.
Output DC voltage: 50-80V.
Rated current: 330±20mA.
Rated power: 28W.
Ripple & noise: ≤600mVp-p.
Hold up time: ≤2s.
Protection over loading: 120～150%.
Short circuit protection type: hiccup mode, recovers automatically after fault condition is removed.
High temp.: 100℃±10℃ (shut down, re-power on to recover).
Environment working temp.: -25℃～+40℃ (refer to output load derating curve).
Storage temp.: -40℃～+60℃, 10～95% RH.
Voltage resistance input-output: AC 1.5kV/5mA 5s.
Input-housing: AC 1.5kV/5mA 5s.
Others IP rating: IP67.
Dimension: L222 x W30 x H20mm.
Packing: 325 x 205 x 215 mm/50pcs/carton.
Weight: 13.6kg/50pcs/carton.
