28mm Hair Cutter Brushless DC Motor

Production Lead Time:

25 day(s)

Model No.:

B2838M

Brand:

Hengdrive

Colour:

Metal

Size:

28*38mm

Port:

SHENZHEN / HONGKONG

Type of Payment:

prepayment 30%, balance Cash Before Delivery

Minimum Order Quantity:

3000PCS

Package:

Yes

Customised:

Yes

Description

Contact Supplier

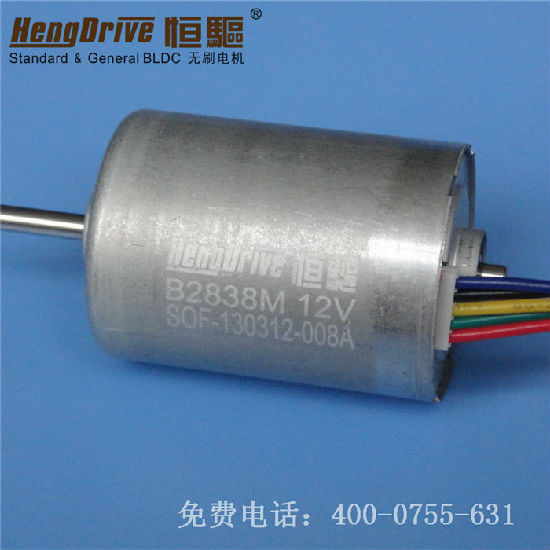

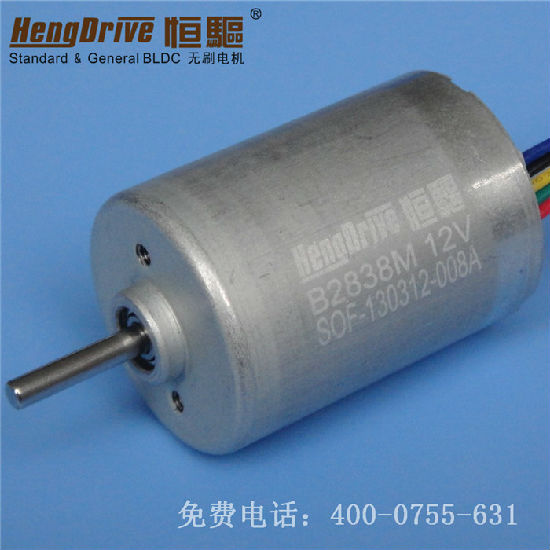

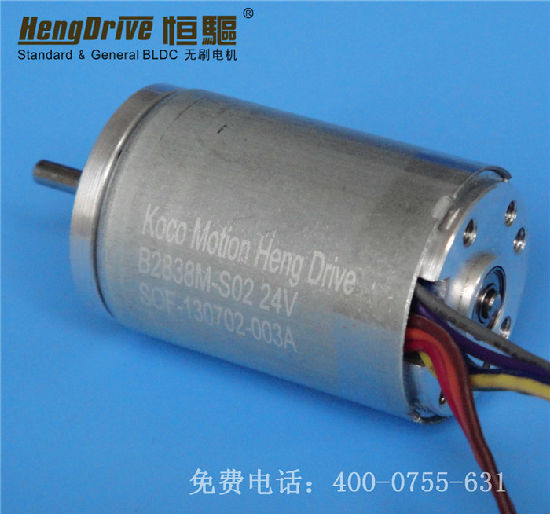

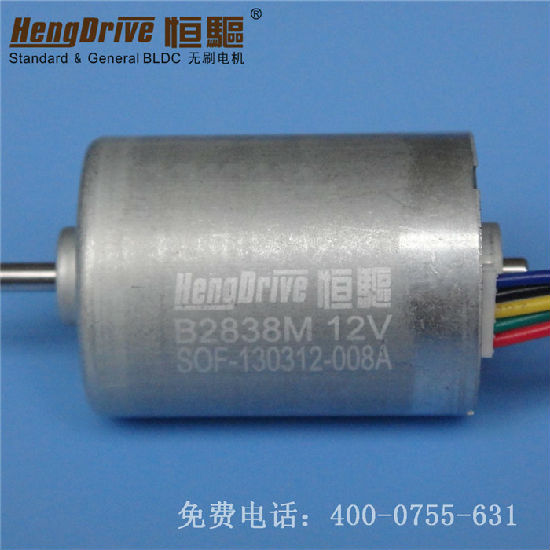

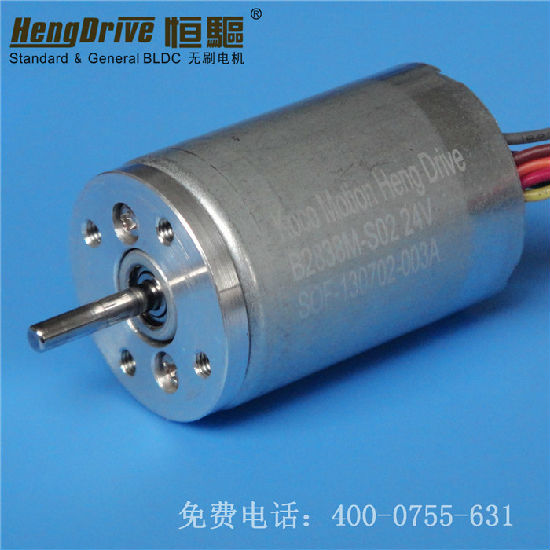

B2838M Brushless DC Motor
Output Power: 2W~16W Weight: 75g (Approx.)

Typical Application
Home Application: White Goods, Small Appliance, Fanner, Electric Curtain
Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal Machine
Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump
Business Equipment: Printer, Copier, Projector, Scanner, Cash Register
Personal Care: Hair Dryer, Electric Shaver, Massager,Hair cutter,Hair clipper,Hair cut shaving

Specification:
No Load
Voltage(V): 7.4
Speed(rpm) : 5331
Current(A) : 0.317
Rated
Torque (mNm):2.943
Speed (rpm):4915
Current (A):0.522
Output P.(W):1.51

Starting
Torque (mNm):37.684
Current (A) : 2.951

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

For Outline drawing and more specifications, please mail to sales@hengdrive.com to get them!
