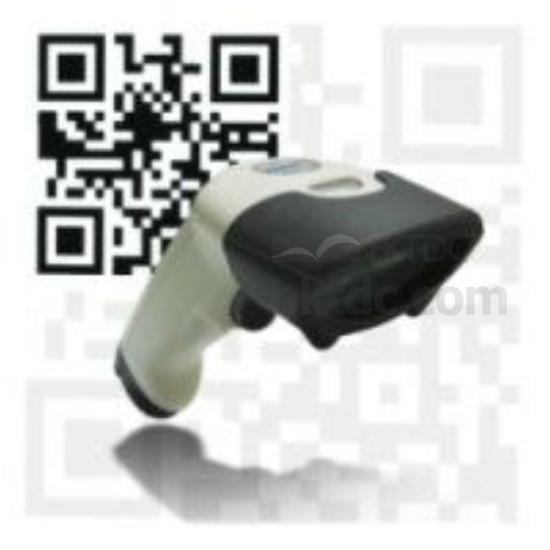

2D Barcode Scanner

Model No.:

CM-2D200

Brand:

Canmax

Colour:

White, Black

Port:

Taiwan

Type of Payment:

T/T, L/C

Minimum Order Quantity:

1 piece(s)

Description

Contact Supplier

Read 1D and 2D barcodes.
Gun type for easy grip.
Rugged design.
High scan performance.
With optional stand for hands free application.
Output interface support: RS232, PS2, and plug & play USB-COM.
Readable barcode type 1D: EAN/UPCRSS code, 39 code, 128UCC/EAN128, ISBN, ISBT. Interleaved matrix industrial and standard 2 of 5, codabar code 93/93i code 11, MSI, Plessey, Telepen, postal codes.
Optical resolution: 752 (H) x 480 (V) pixels, 256 gray levels.
PCS: down to 25%.
Scan rate 2D mode: 60 images/sec. auto adaptive.
Scan rate 1D: 200 scans/sec. auto adaptive.
Scan angle: 38.9° (Horizontal) 25.4° (Vertical).
Version: standard range and high-density.
Depth of field: minimum distance: 8cm/3.1 max. 23.5cm/9.3 (code 39PSC 0.90.125mm/5mil).
Reading indicator: blue LED and buzzer.
Configuration: user manual.
Environment humidity: 5%-95% RH.
Working temperature: -20-50°C (-4-122°F).
Safety standard: FCC class A and CE.
Voltage 3.3V ± 5%.
Ambient light: works in any lighting conditions from 0 to 100 lux.
Power consumption: 430mA±20mA @ 3.3V scanning.
