2K 4MP High Resolution Camera Module With Omnivision OV4689 Sensor
Production Lead Time:
7 day(s)
Shipping Method:
DHL/FedEx
Customised:
Yes
Model No.:
SNS-4MP-OV4689-AF1
Resolution:
2048×1080
Size:
Customizable
Brand:
Sinoseen
Description
Contact Supplier
Description

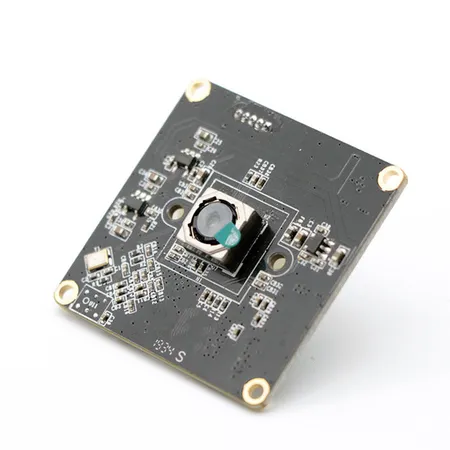

This 2K USB camera module features the Omnivision OV4689 sensor, known for its stability and high performance. Key features include Automatic Black Level Calibration (ABLC), programmable frame rate, mirroring, flipping, cropping, and windowing, as well as static defect pixel elimination. It supports horizontal/vertical subsampling, multiple image sizes (4Mpixel, 3Mpixel, EIS1080p, 1080p, EIS720p), and quick mode switching. Widely used in IP cameras, action cameras, automotive applications, and more, it offers versatile functionality and reliable image quality.
Model No | SNS-4MP-OV4689-AF1 |
Sensor | 1/3" Omnivision OV4689 |
Pixel | 4 Mega Pixel |
Most effective pixels | 2688(H) x 1520(V) |
Pixel Size | 2.0µm x 2.0µm |
Compression format | MJPG / YUY2 |
Resolution | see above |
Frame rate | see above |
Shutter Type | Electronic rolling shutter |
Focus type | Fixed focus |
S/N ratio | 38.3dB |
Dynamic range | 64.6dB |
Interface type | USB2.0 |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ |
Lens | Focal length: 3.6mm |
Lens Size: 1/3 inch | |
FOV: 75° (Optional) | |
Thread Size: M12*P0.5 | |
Audio frequency | Support |
microphone | Built-in |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 200mA |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Not Supported |
Dimension | 38MM x 38MM |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
| WinXP/Vista/Win7/Win8/Win10 |
*High-Performance Sensor: Equipped with Omnivision OV4689, ensuring stability and excellent image quality.
*Advanced Features: Includes ABLC, programmable frame rate, mirroring, flipping, cropping, and defect pixel elimination.
*Flexible Image Options: Supports multiple resolutions (4Mpixel, 3Mpixel, EIS1080p, 1080p, EIS720p) and horizontal/vertical subsampling.
*Wide Applications: Ideal for IP cameras, action cameras, automotive use, and more, offering versatility and reliability.
