2mp micro usb endoscope camera
Production Lead Time:
1 day(s)
Model No.:
ELP-USBFHD01M-L12
Brand:
ELP
Size:
38 x 38mm or 32 x 32mm
Port:
shenzhen
Type of Payment:
T/T, Western Union, PayPal
Minimum Order Quantity:
1 piece
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
General Description

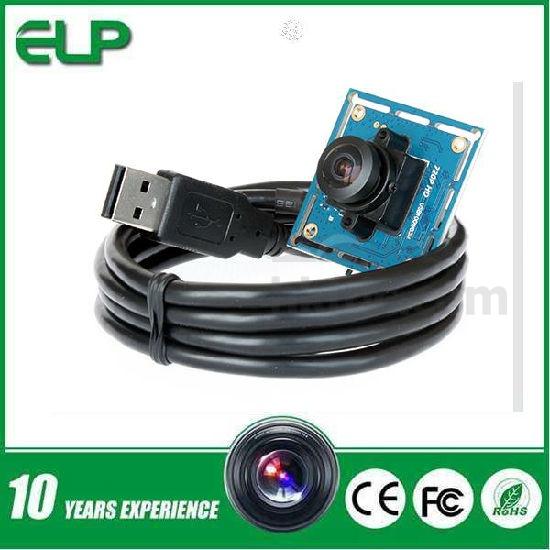

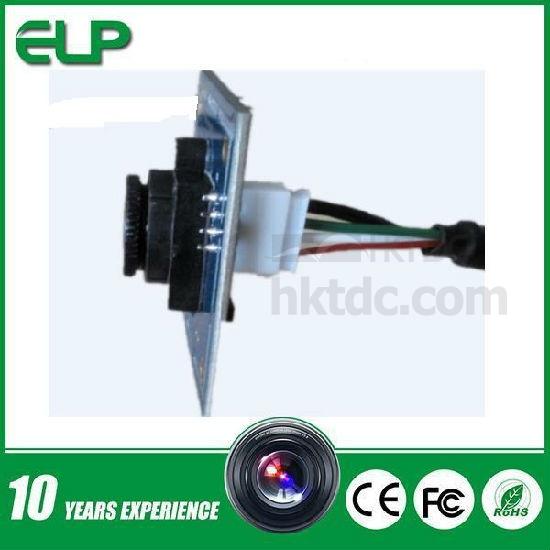

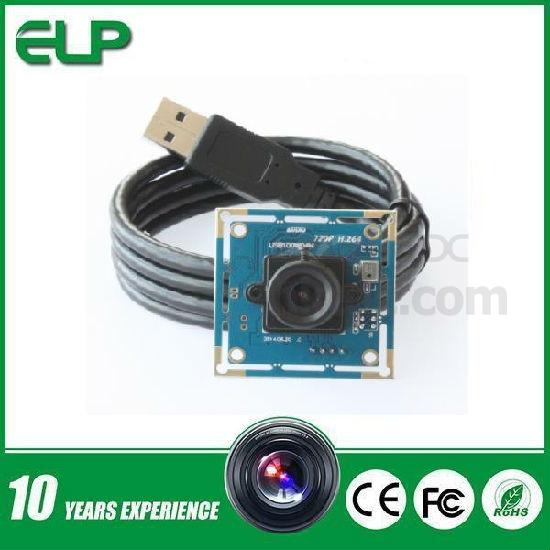

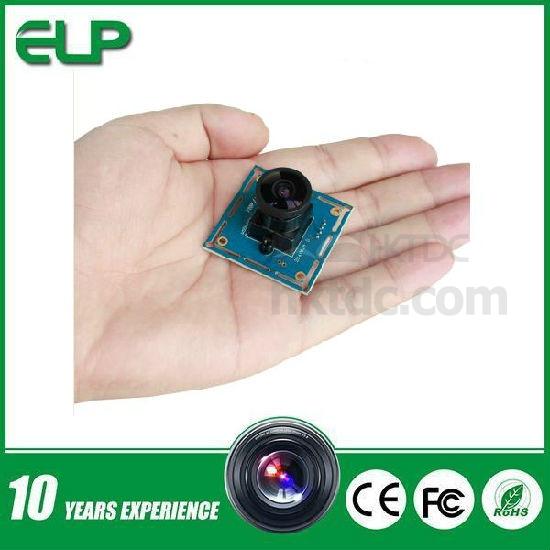

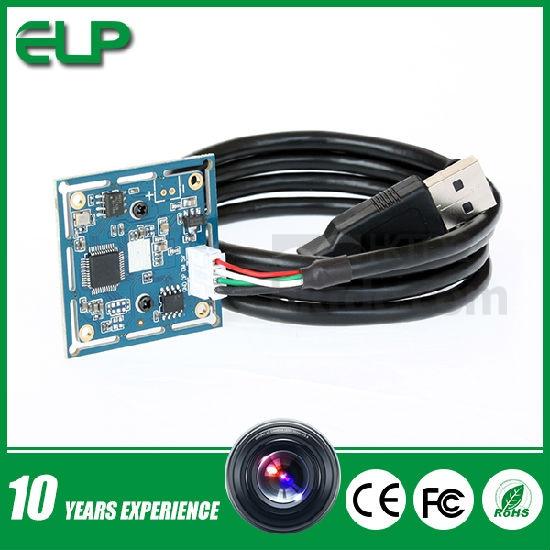

The HD 2Megapixel USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.
The USB camera are ideal for equipment manufacturers, experimenters and hobbyists.
Application:
used for all kinds of machine as below:
machinery equipment, POS equipment, TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, Tablet external, evaluator, Medical Equipment, cat-eye system, simple security system, teaching system, Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, biological microscope, box inside surveillance, endoscope, Medical auxiliary equipment etc.
Features
*High speed USB 2.0 interface
*Super small outline and thin profile for embedded applications.
*1920(H)x1080(V)pixels/Max. Resolution 1920X1080
*Low power consumption – ideal for portable equipment.
*Camera with UVC.
*Free driver, plug & play
Parameters
* Image Sensor: 1/2.7" CMOS OV2710
* LENS: 12ｍｍ（ HD 2.1 / 2.8 /6/8 /12mm megapixel lens,170 degree fisheye lens optional)
* CABLE: 1m USB cable (2M/3M/5M optional)
(can also make the other special length cable according to your requirement)
* Signal Output: Serial data for USB standard compliant 2.0
* Performance:
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
* Operating System: Linux 2.6.26 or above, Windows XP SP2or above
* Operating temperature: -30°C-70°C
* Power Consumption: 5V 120mA
* Dimensions (mm): 32mm*32mm/38mm*38mm
(can make other dimension as customers’ requirement)
The HD 2Megapixel USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.
The USB camera are ideal for equipment manufacturers, experimenters and hobbyists.
Application:
used for all kinds of machine as below:
machinery equipment, POS equipment, TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, Tablet external, evaluator, Medical Equipment, cat-eye system, simple security system, teaching system, Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, biological microscope, box inside surveillance, endoscope, Medical auxiliary equipment etc.
Features
*High speed USB 2.0 interface
*Super small outline and thin profile for embedded applications.
*1920(H)x1080(V)pixels/Max. Resolution 1920X1080
*Low power consumption – ideal for portable equipment.
*Camera with UVC.
*Free driver, plug & play
Parameters
* Image Sensor: 1/2.7" CMOS OV2710
* LENS: 12ｍｍ（ HD 2.1 / 2.8 /6/8 /12mm megapixel lens,170 degree fisheye lens optional)
* CABLE: 1m USB cable (2M/3M/5M optional)
(can also make the other special length cable according to your requirement)
* Signal Output: Serial data for USB standard compliant 2.0
* Performance:
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
* Operating System: Linux 2.6.26 or above, Windows XP SP2or above
* Operating temperature: -30°C-70°C
* Power Consumption: 5V 120mA
* Dimensions (mm): 32mm*32mm/38mm*38mm
(can make other dimension as customers’ requirement)
