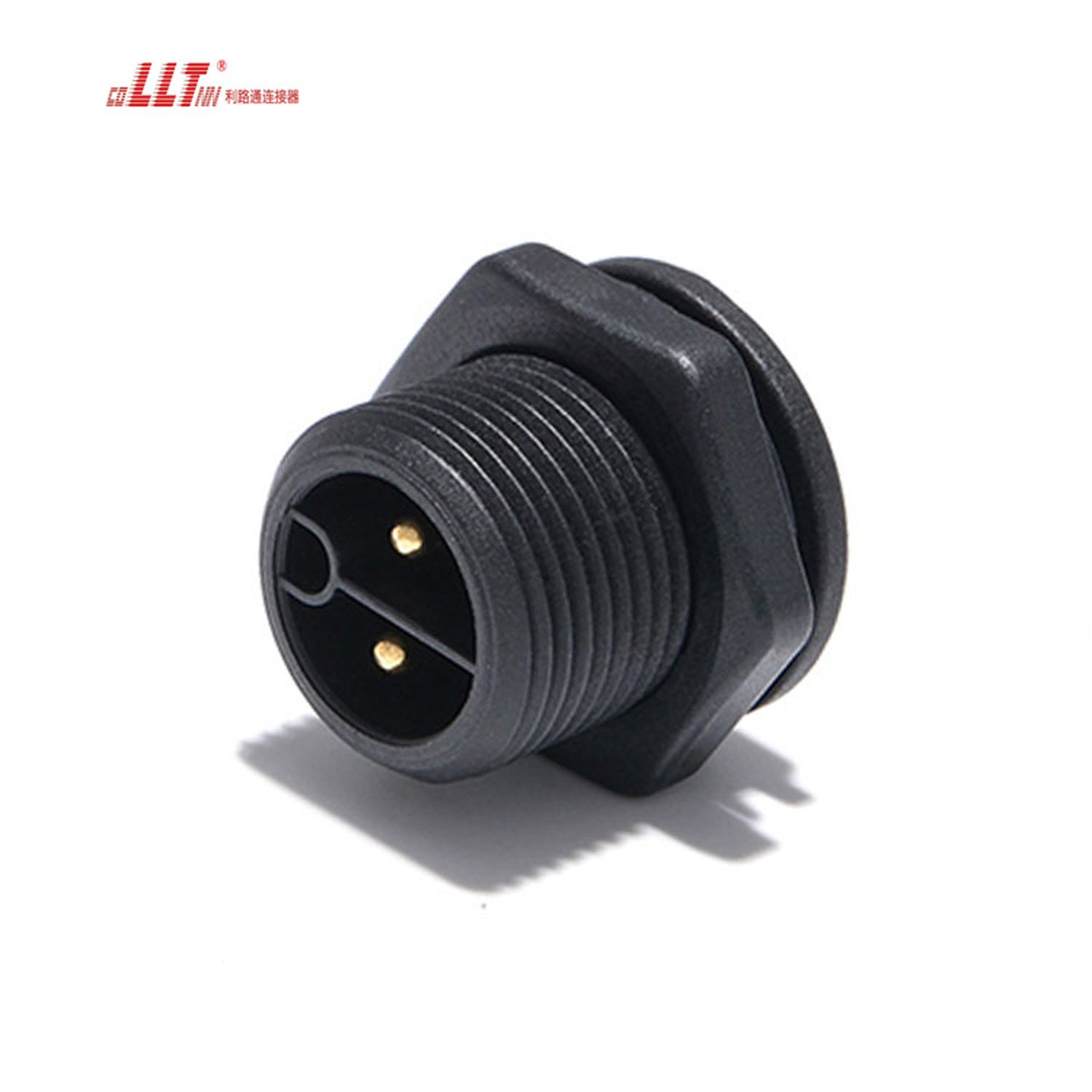

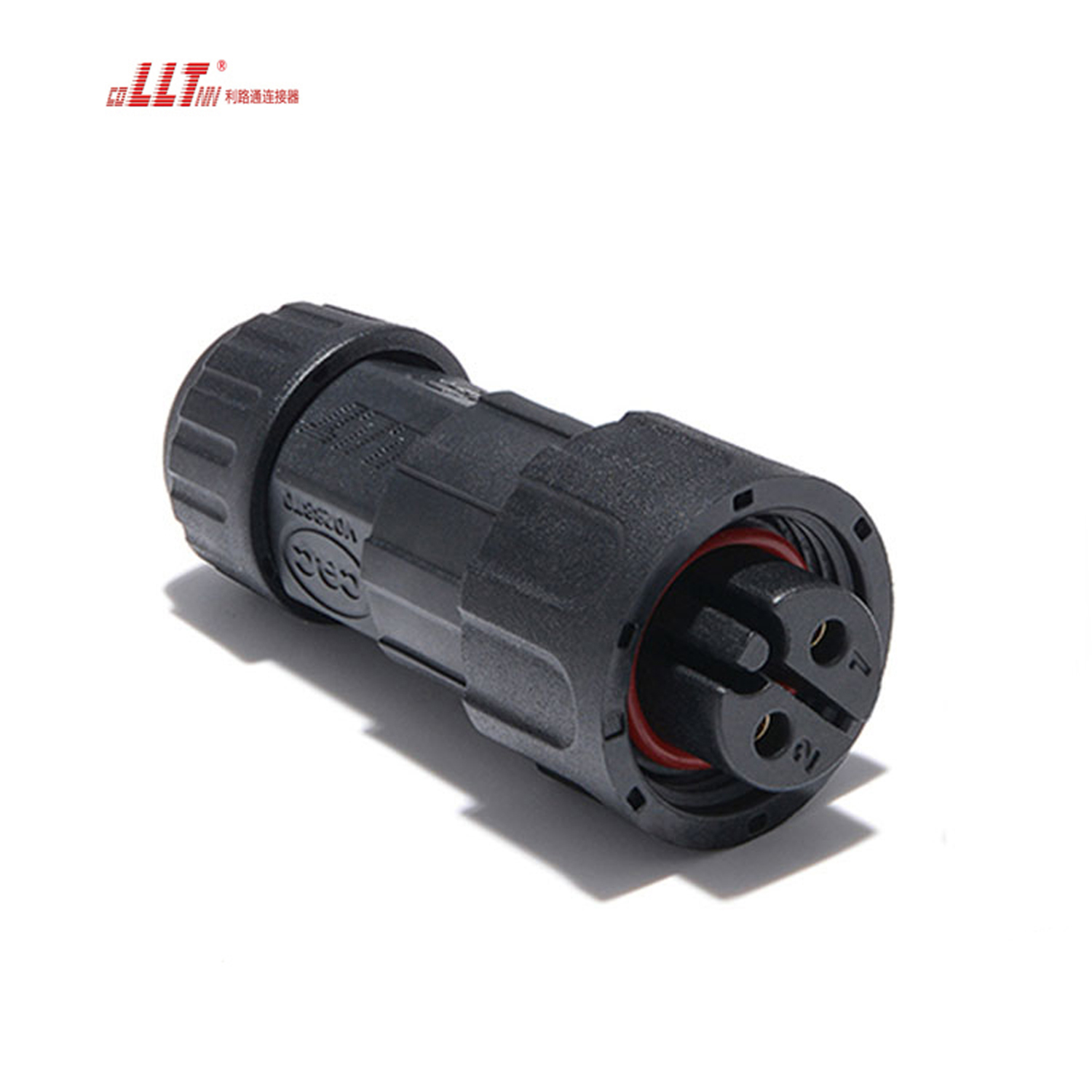

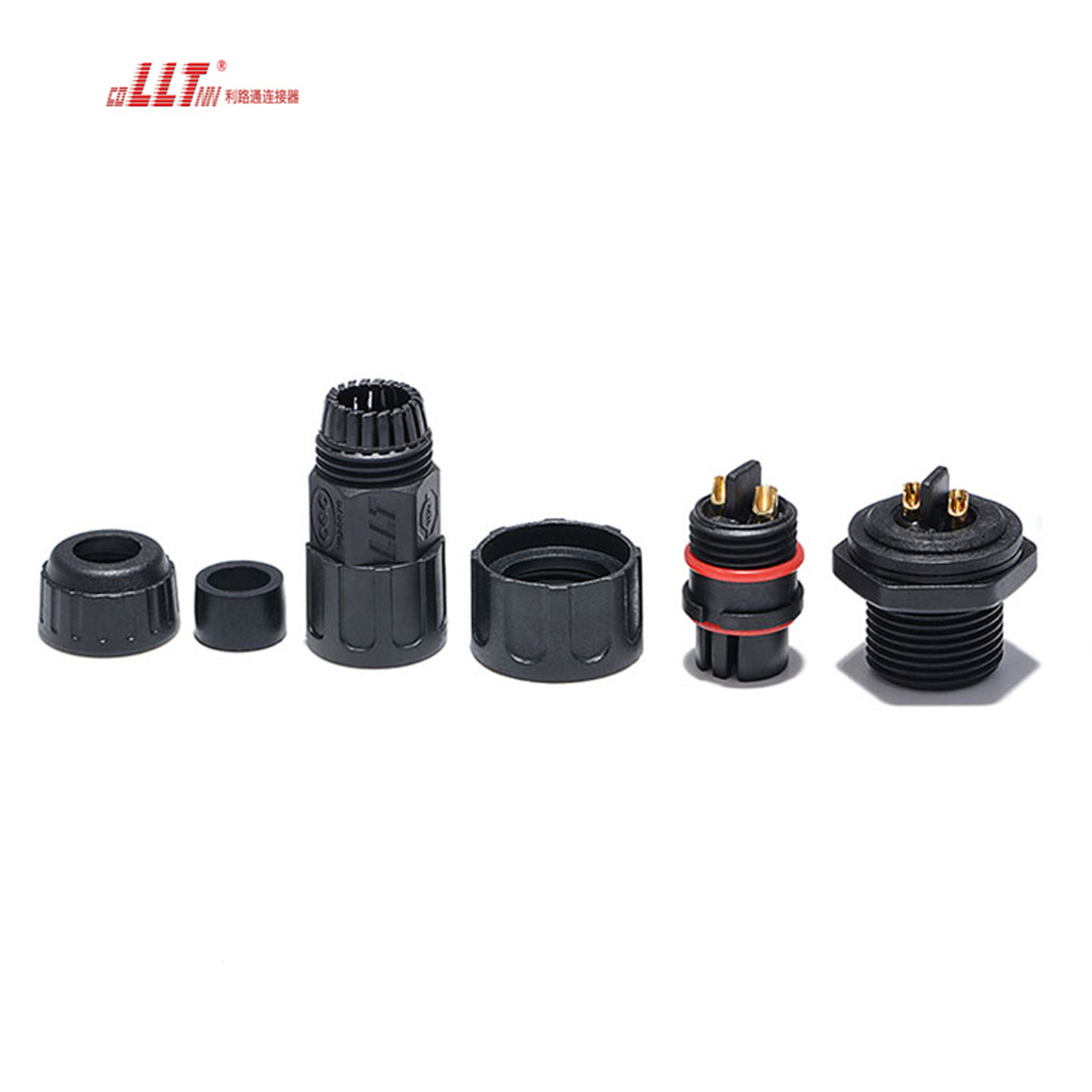

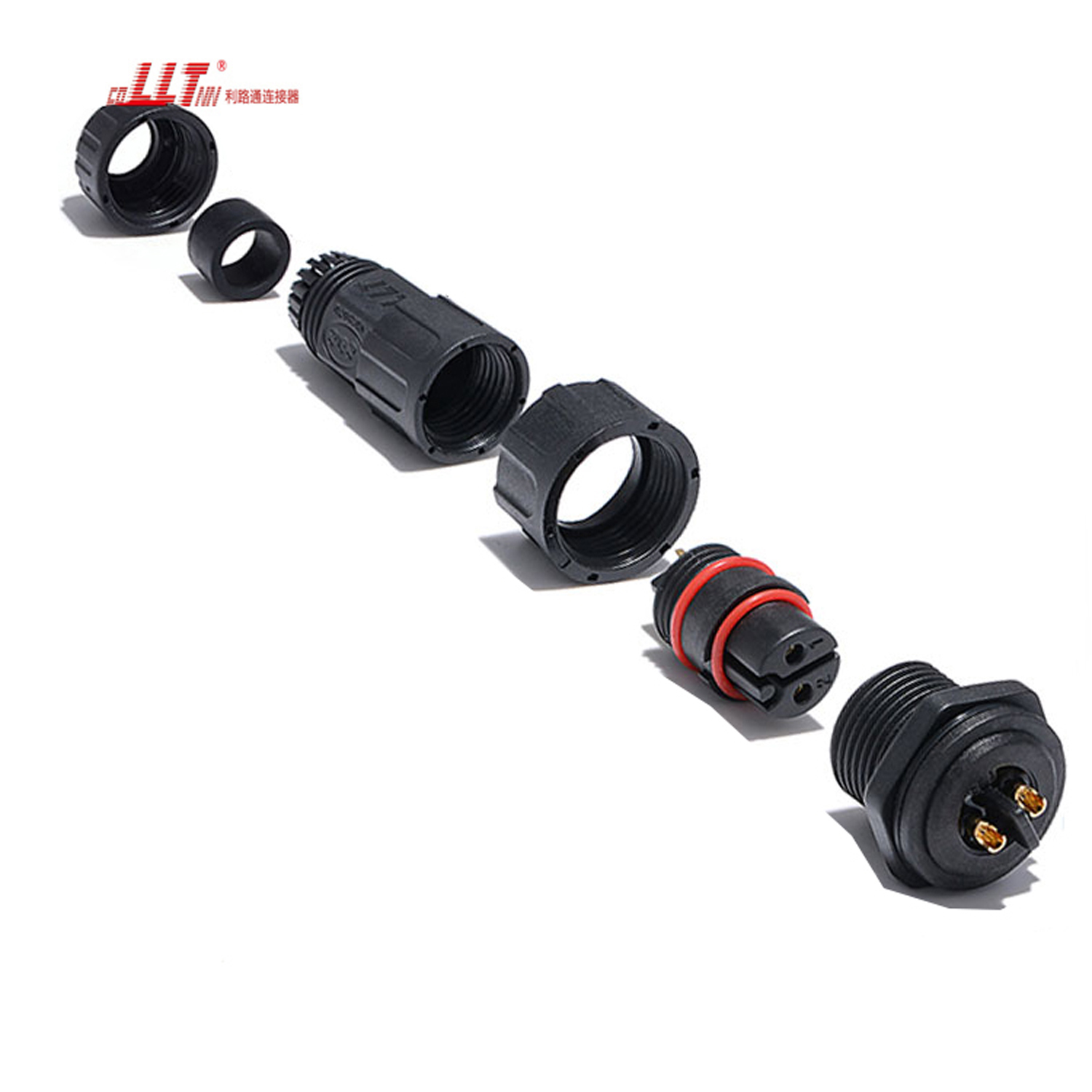

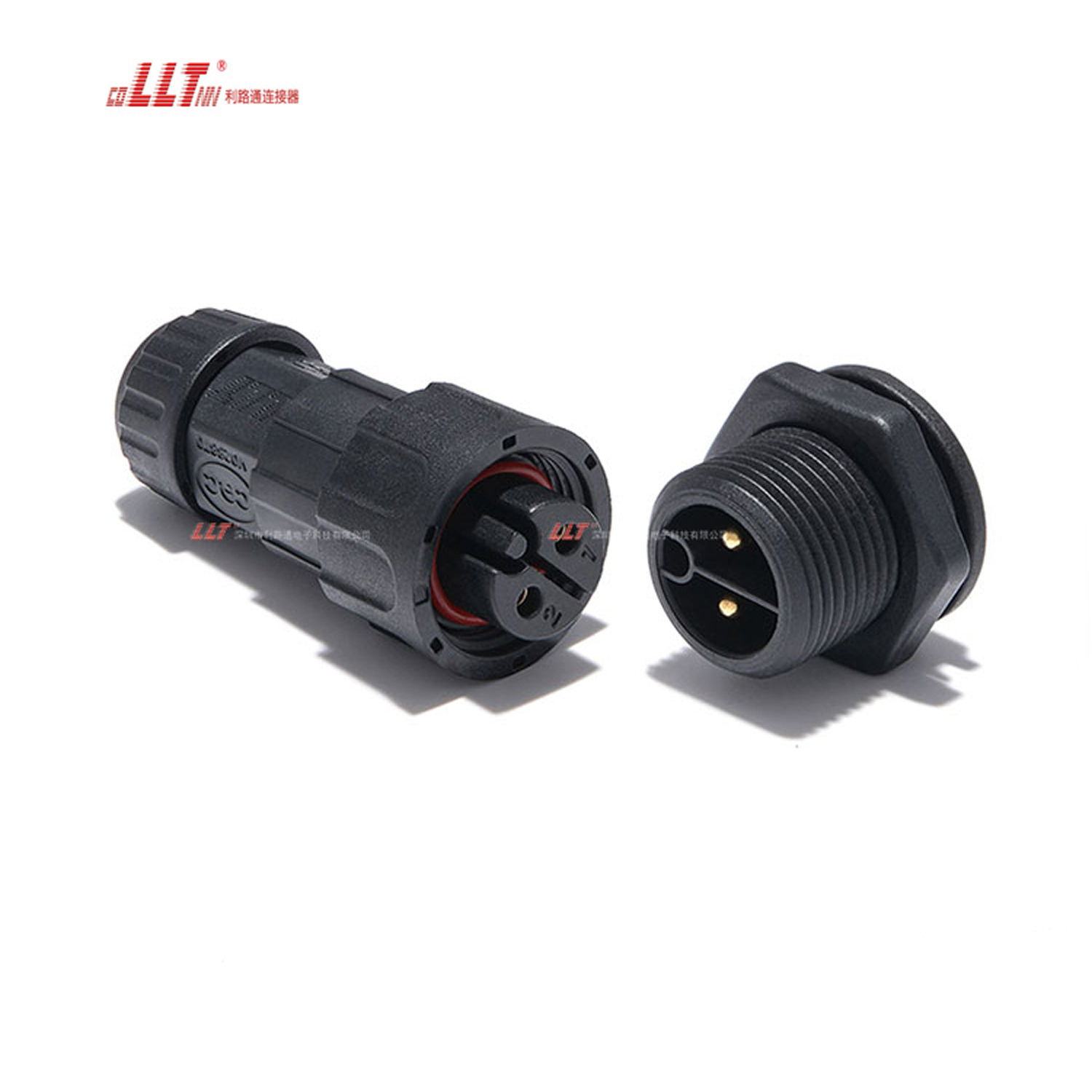

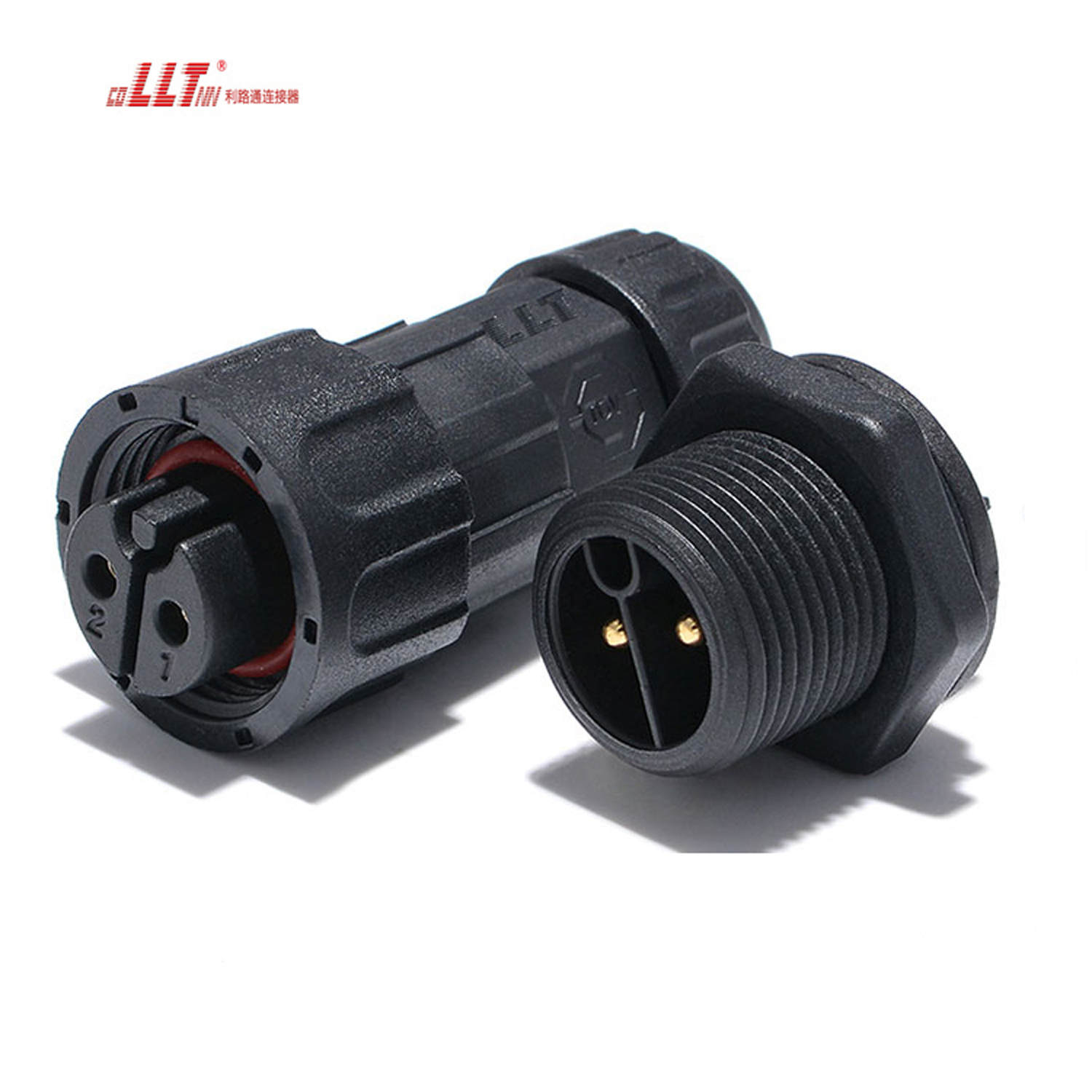

2pin M19 Power Assembly IP68 Waterproof Power 3 4 5 6 7 8 9pin Screw Connector
US $2.00 - US $4.00
Production Lead Time:
7 day(s)
Shipping Method:
By express,by sea,by air
Model No.:
LLT-M19-20002M2861
Brand:
LLT
Feature:
20A/300V
Waterproof Level::
IP68
Durability::
3000 times
Warranty::
12 Month
Certificate:
TUV;CCC; CE; RoHS;SAA;UL;ISO9001
Application:
LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technolgy and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .
Description
Contact Supplier
Description
Model number:LLT-M19-20002M2861
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:20A
Voltage rating:300V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2 to 10 and 12/14/18pin
Cable Range:5-11mm
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:20A
Voltage rating:300V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2 to 10 and 12/14/18pin
Cable Range:5-11mm
Terminal attach wire:Solder or Screw
