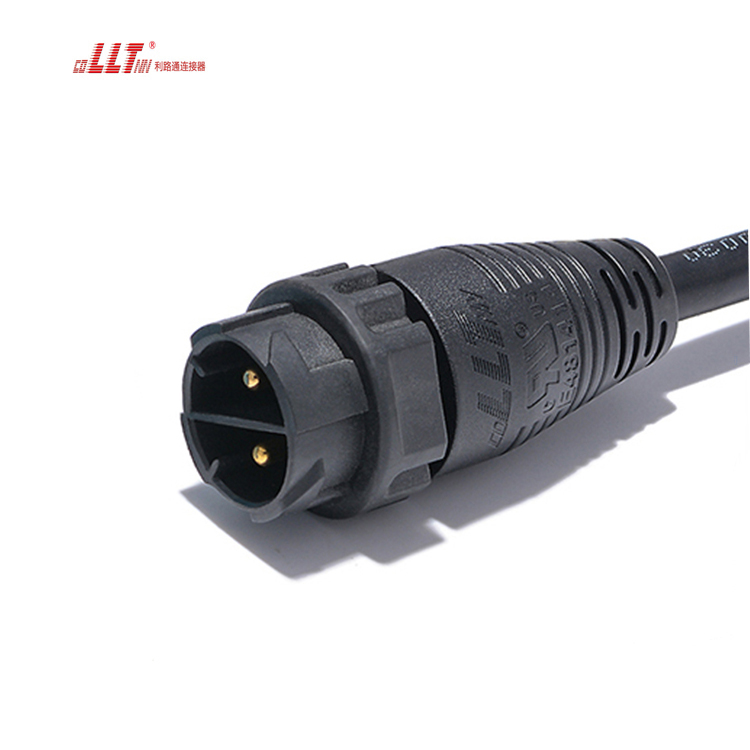

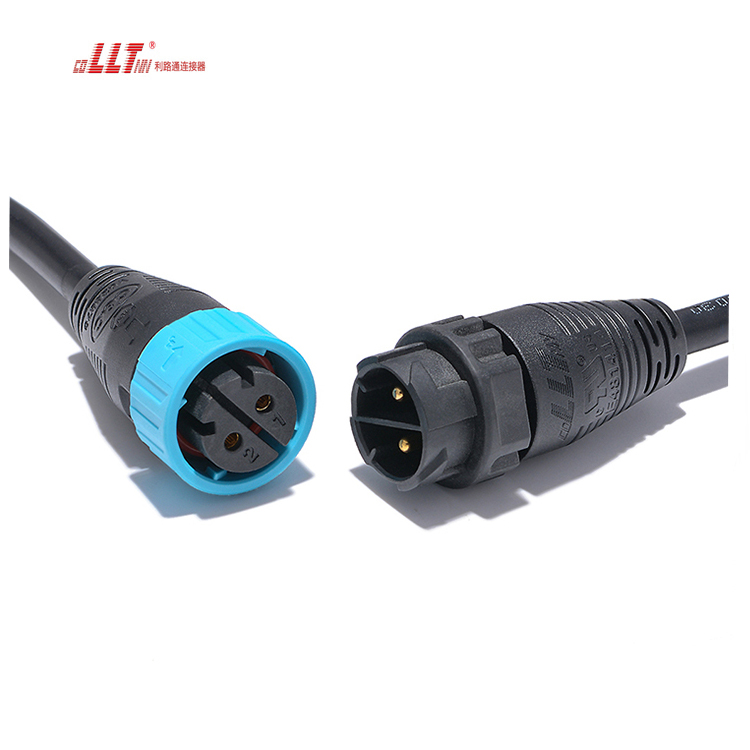

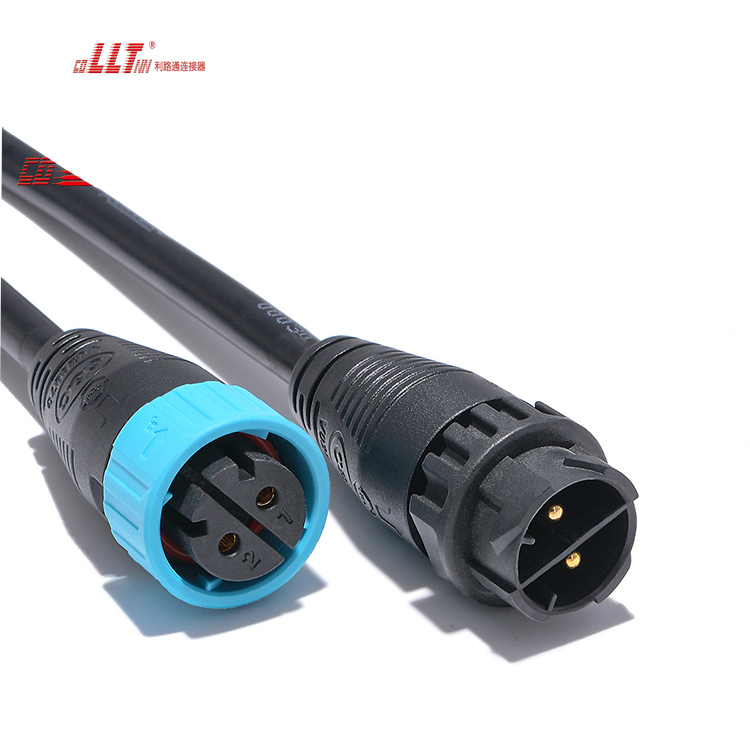

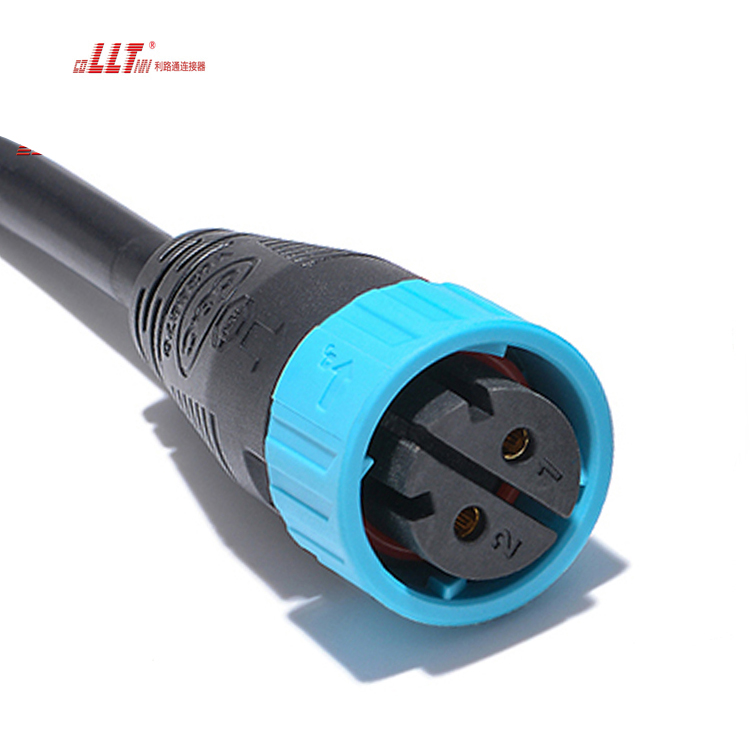

2pin male to female cable connector M25 35A 600V power cable connector 3 4 5 6 7 8 pin IP67 waterproof cable connector
US $3.00 - US $5.00
Production Lead Time:
7 day(s)
Shipping Method:
DHL/FedEx/UPS ,by sea, by air
Application:
LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technolgy and medical equipment
Brand:
LLT
Model No.:
LLT-M25-35002F3034+LLT-M25-35002M3064
Rating::
600V/35A
Waterproof Level::
IP67
Certificate:
CE,TUV,ROHS,CCC,CQC,UL
Durability::
3000 times
Contact:
Brass with Gold Plated
Temperature Rating:
-45°C~+105°C
Description
Contact Supplier
Description
Model number:LLT-M25-35002F3034+LLT-M25-35002M3064
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated

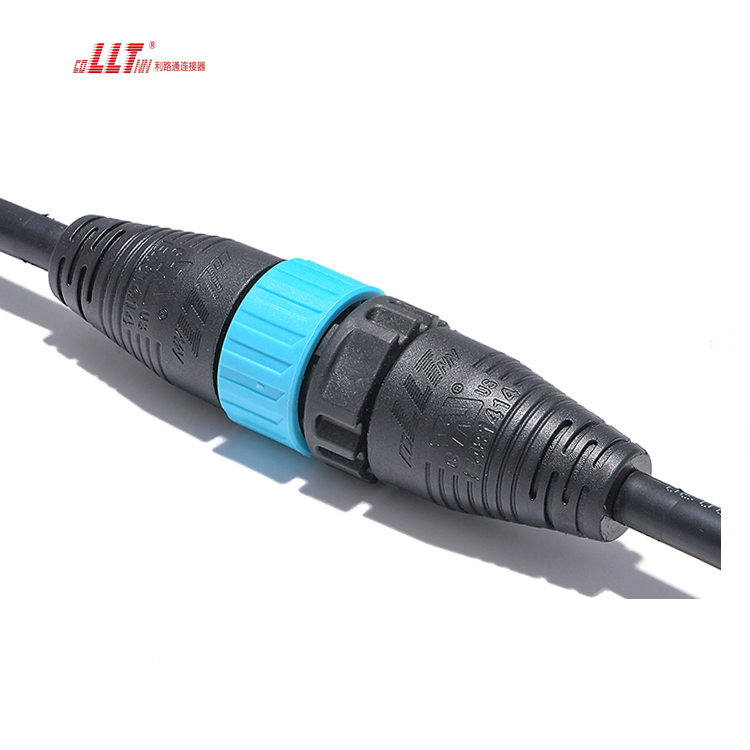

Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:35A
Voltage rating:600V
Waterproof Rating:IP67
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute

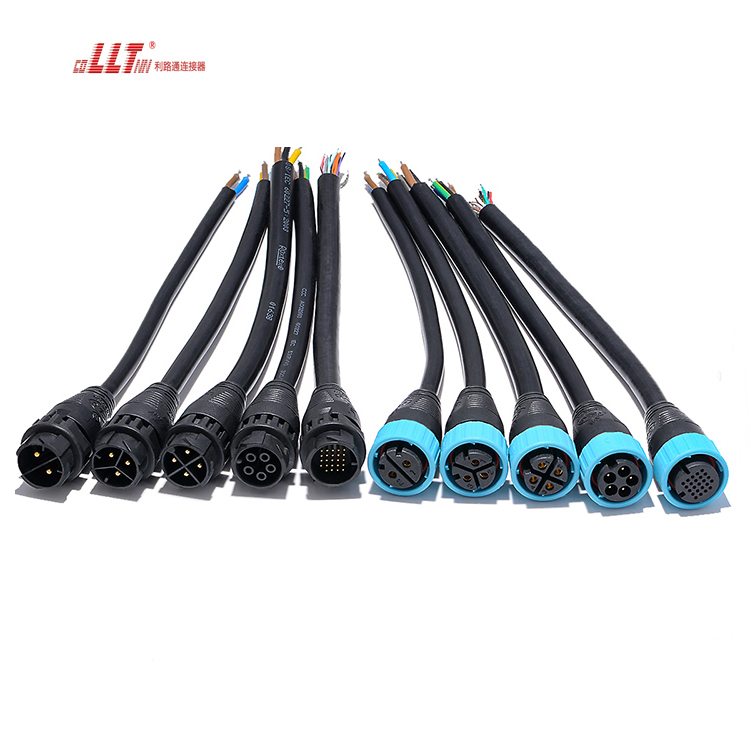

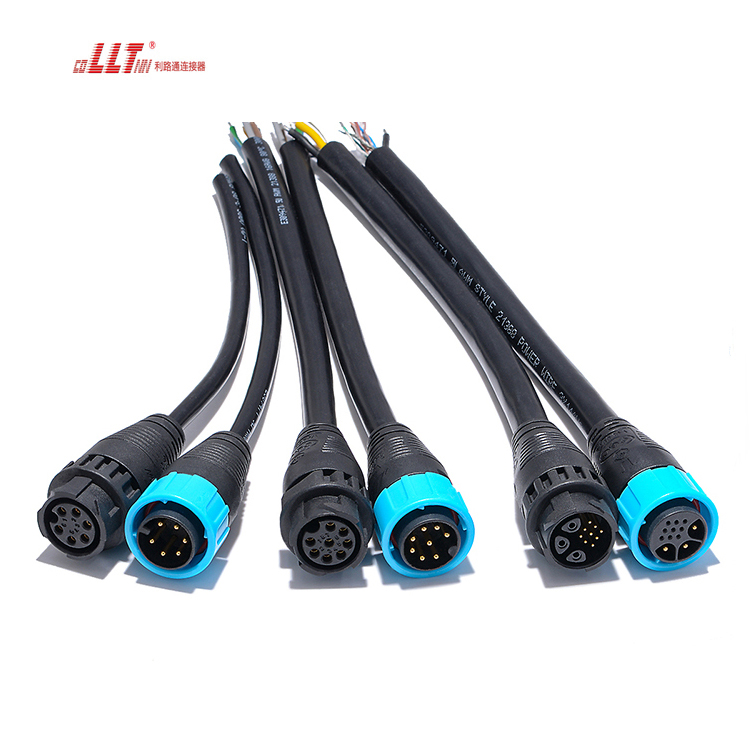

Pins range:2 to 10 and12/14/18 pin.
Cable Range:3.5-15mm
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:35A
Voltage rating:600V
Waterproof Rating:IP67
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2 to 10 and12/14/18 pin.
Cable Range:3.5-15mm
