3.4 inch Round LCD Display TFT LCD 800(RGB)*800 with MIPI Interface | Parts, Components & Electrical Supplies

Microtech Technology Co Ltd

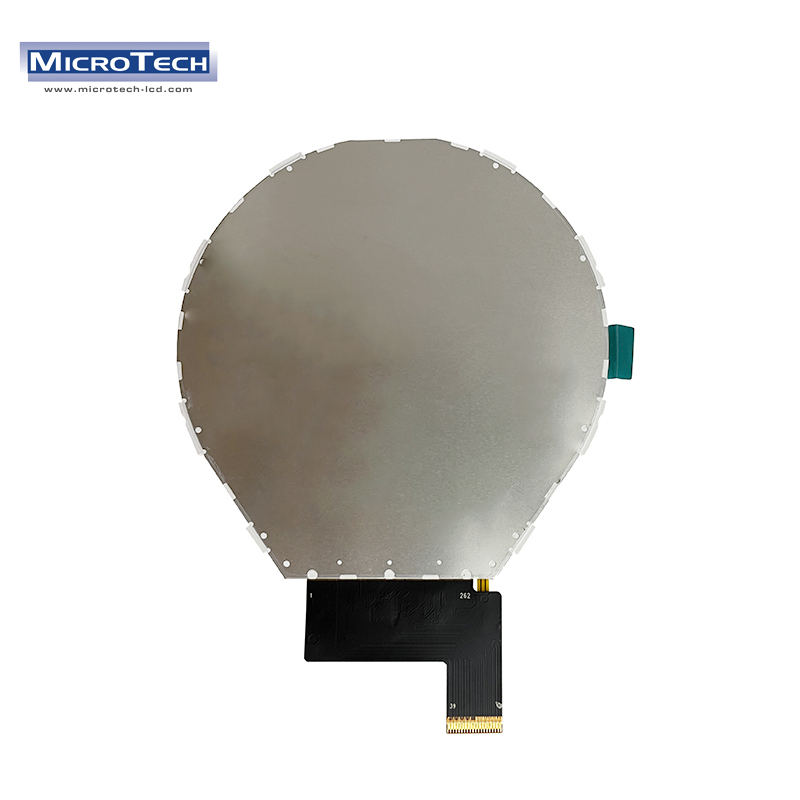

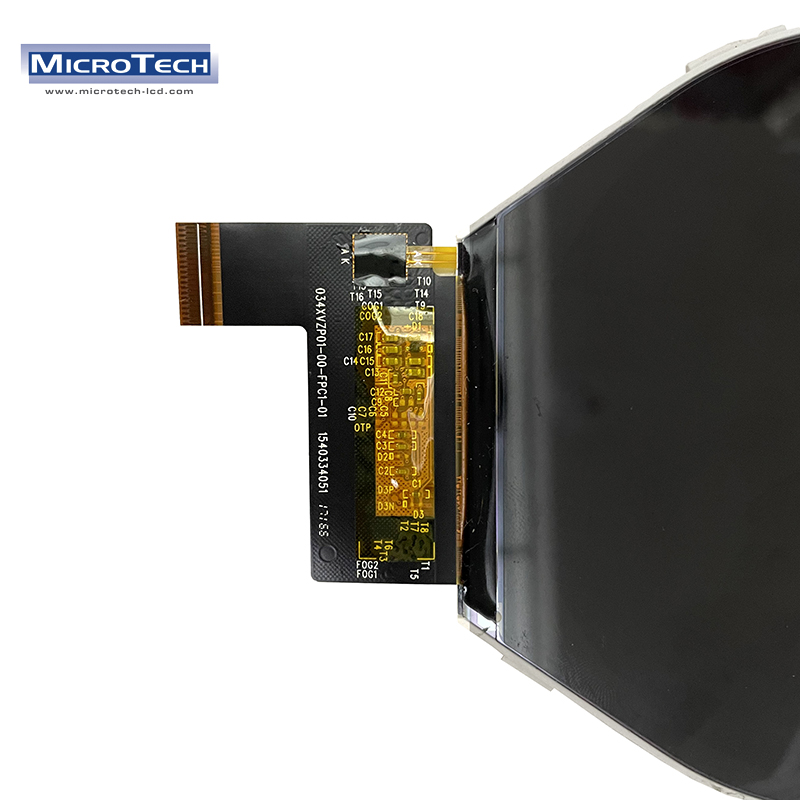

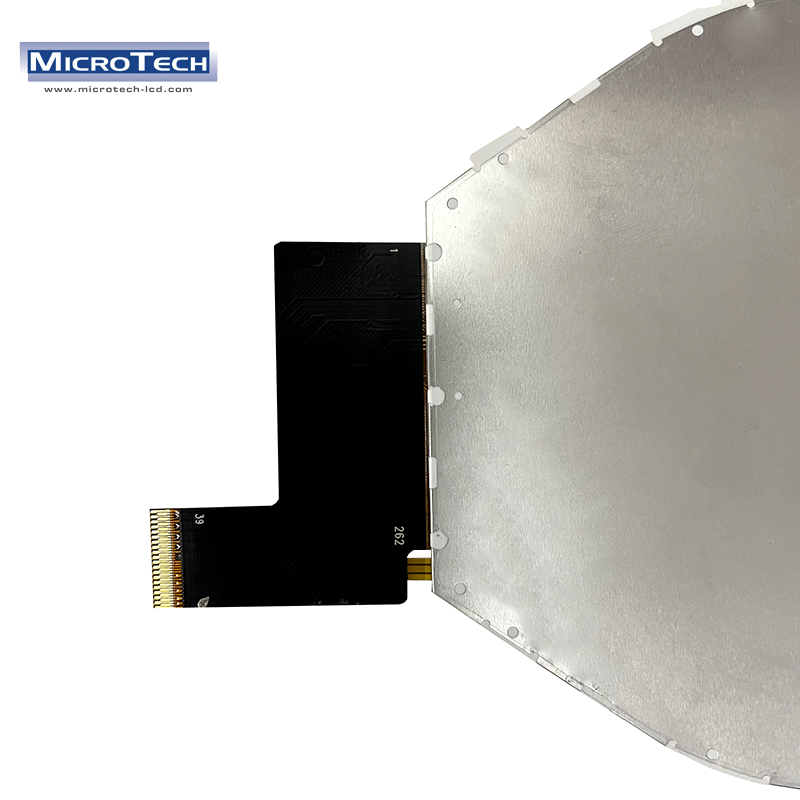

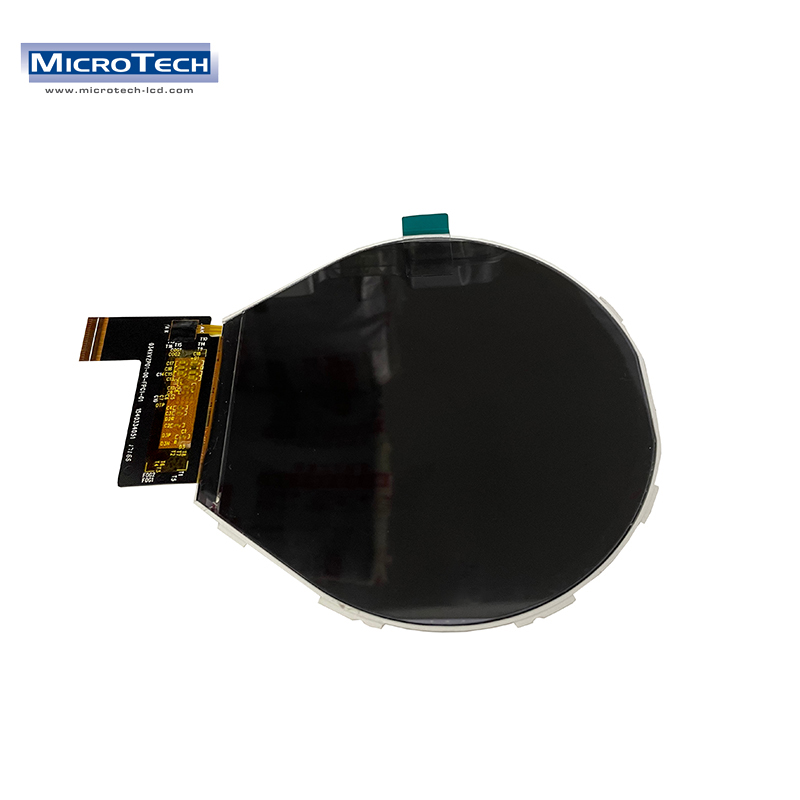

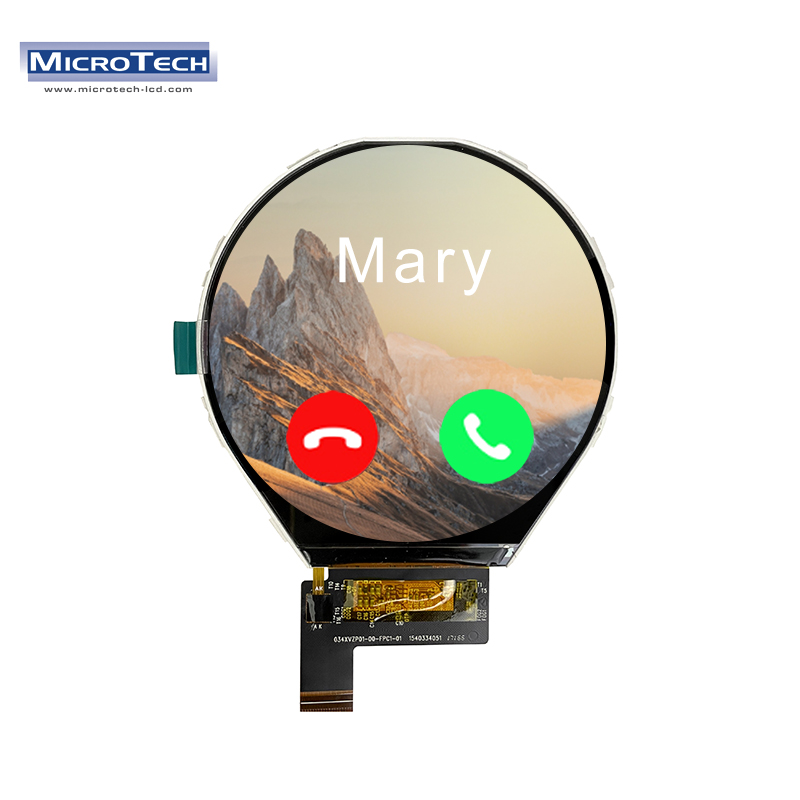

3.4 inch Round LCD Display TFT LCD 800(RGB)*800 with MIPI Interface

US $10.00 - US $30.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech-lcd

Model No.:

MTF034WV02A-V1

Customised:

Yes

Size:

3.4inch

Description

Contact Supplier

3.4 inch Round LCD Display TFT LCD 800(RGB)*800 with MIPI Interface

Feature		Spec
Display Spec.	Size	3.4 inch
	Resolution	800(RGB) * 800
	Technology Type	a-Si
	Pixel Configuration	R.G.B. Vertical Stripe
	Pixel pitch(um)	109.5*109.5
	Display Mode	SFT
	Surface Treatment	HC
	Viewing Direction	FREE
Mechanical Characteristics	Module (W* H * D) (mm) with CTP	99.096.63.98
	Active Area(mm)	87.6*87.6
	With /Without TSP	With CTP
	Matching Connection Type	FPC
	LED Numbers	8 LEDs
	CTP Surface hardness	>7H
	Weight (g)	TBD
Electrical Characteristics	Interface	MIPI3lane
	Color Depth	16.7M
	LCD Driver IC	ILI9881C
	CTP Driver IC	HX8526-E30
	CTP Interface	HC
