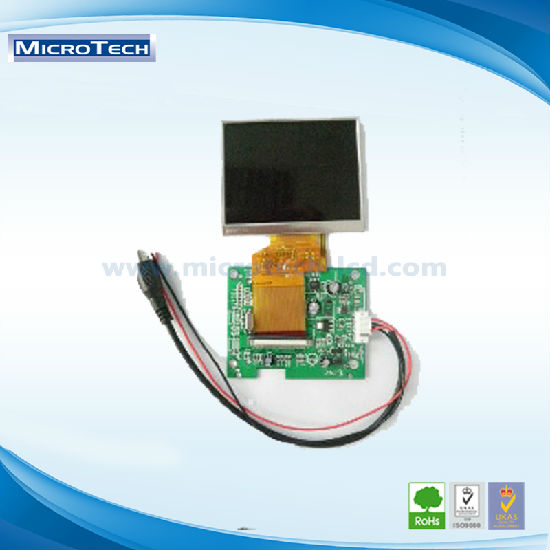

3.5" TFT LCD with High Brightness & Convert Board
Share this page
Model No.:
3.5" TFT Controller Boards with AV Input
Brand:
MICROTECH
Size:
192.8 x 116.9 x 6.4
Type:
TFT - Thin Film Transistor
Description
Contact Supplier
Description
  • Item: TFT LCD with high brightness & convert board
  • Model name: KWH043ST12-F04 V.2+board
  • Display mode: Normally White,Transmissive
  • Resolution: 480 x 3 RGB x 272
  • Technology type: a-Si TFT active matrix
  • Pixel pitch (mm): 0.1987(H) x 0.198(V)
  • Viewing direction: 6 O'clock
  • Outline dimension: 105.50(W)x67.2(H)x4.2(D) mm
  • Active area(mm): 95.04(W)x53.856(H) mm
  • Interface : RGB 24bits
  • Flat cable connector type: with 40 Pins
  • Color configurtion: R.G.B-stripe
  • Brightness: 400cd/m2
  • Operating temperature: -20~70°C
  • Storage temperature: -30~+80°C
  • Touch panel: with
  • Application: GPS, Camera, other electronic products, etc
