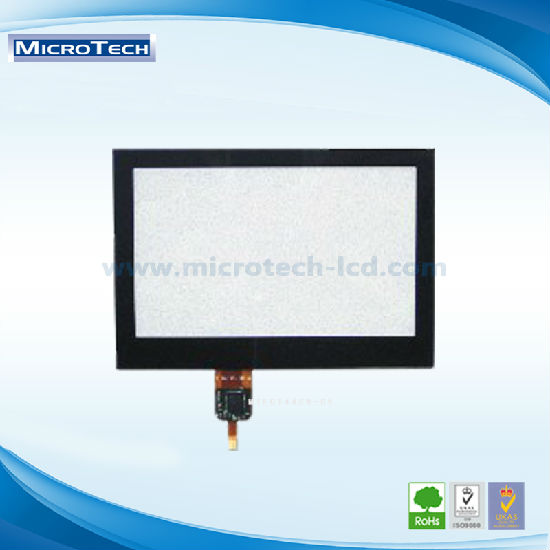

3.5 inch Capacitive Touch Screen
Model No.:
3.5 Inch Standard CTP
Brand:
MICROTECH
Size:
126.5 x 100
Port:
Shenzhen
Description
Contact Supplier
Description
- Item3.5 inch Capacitive Touch Screen
- Outline Dimension55.8x112.35x1.3mm
- Active area 49.56x74.04mm
- TypeGlass or Acrylic + ITO Film (Max 4 Layers)
- Thickness glass window0.7mm,1.1mm,3.0mm
- acrylic window1.0mm
- ITO Film75μm,100μm,125μm,180μm
- Low power state current draw0.8 mA typical
- TSPconnect IC COF or COB
- Transparency≥85% depends on the quantity of layers
- Haze ≤2.5% depends on the quantity of layers
- Operating Response< 10ms
- Transparency Temperature-20°C ~+40°C
- Humidity 20%~90%(Non-Condensing
- Surface Hardness ≥3H
- Driver ICMSG2133
- Multi-Touch5-Points
