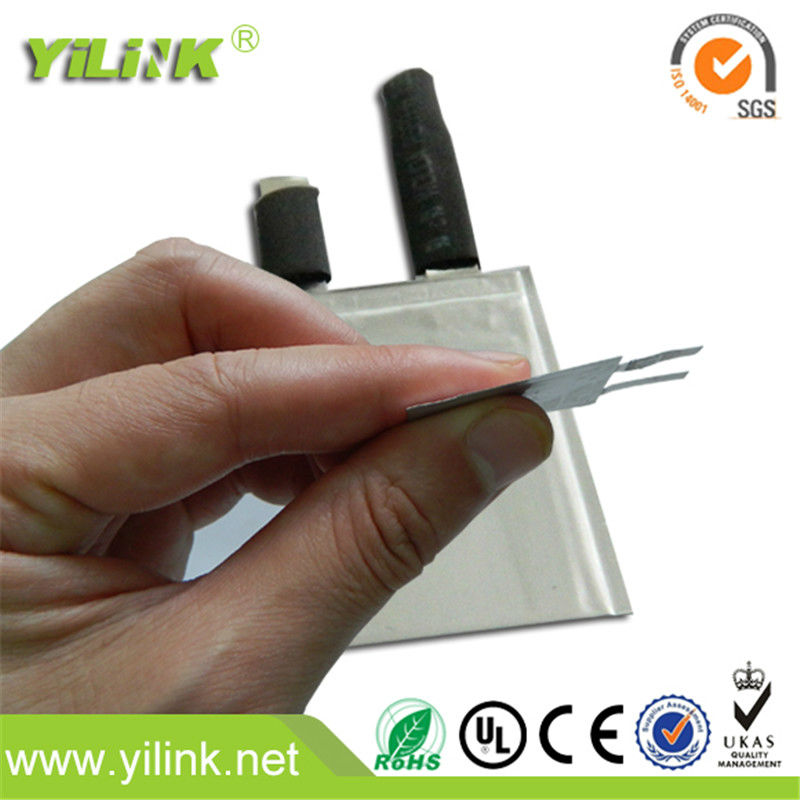

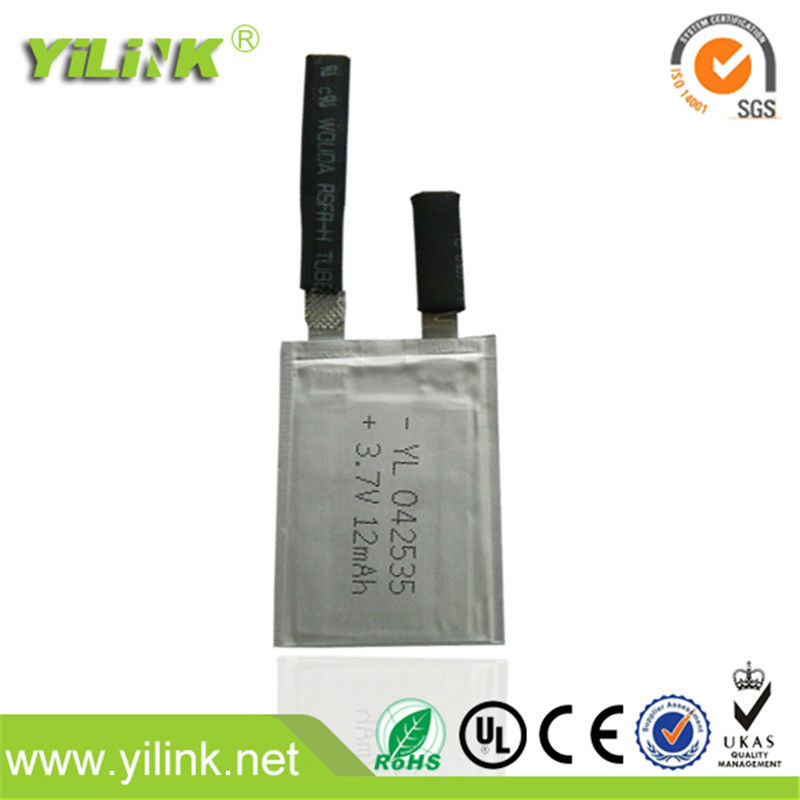

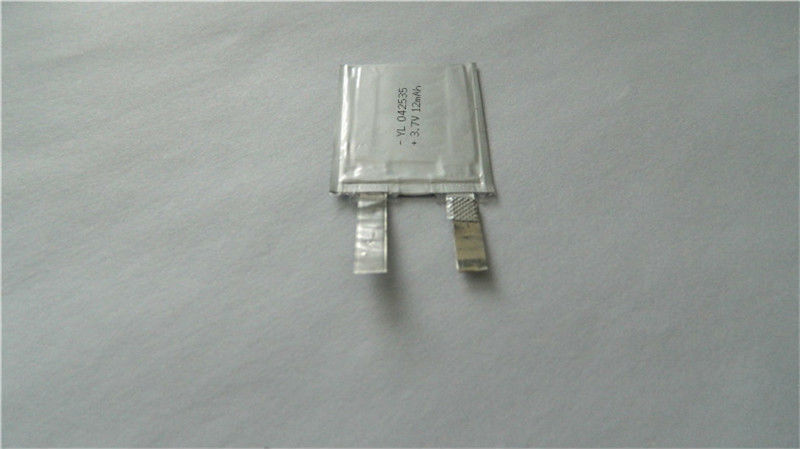

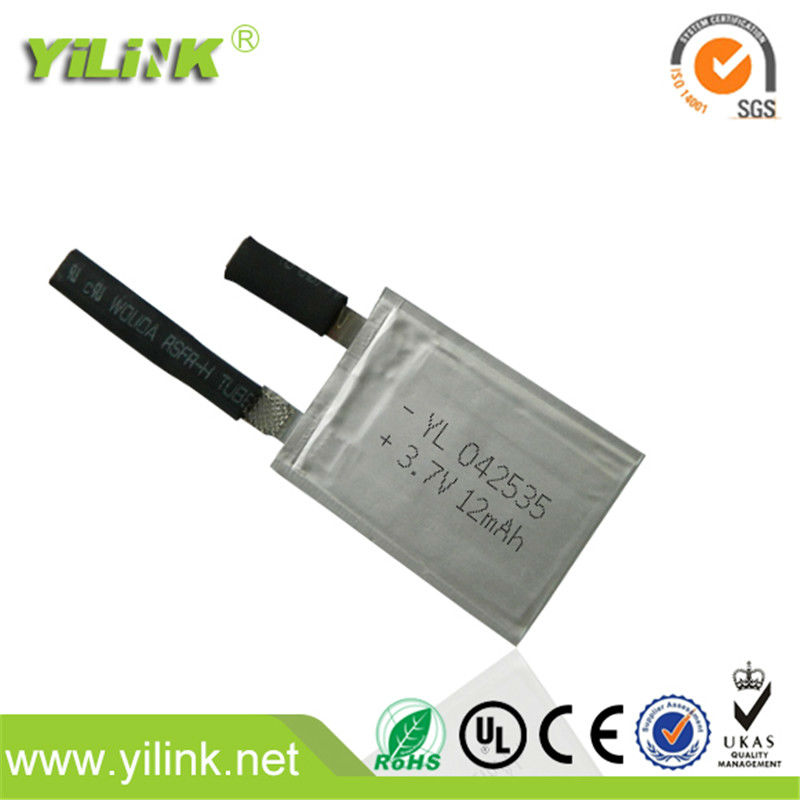

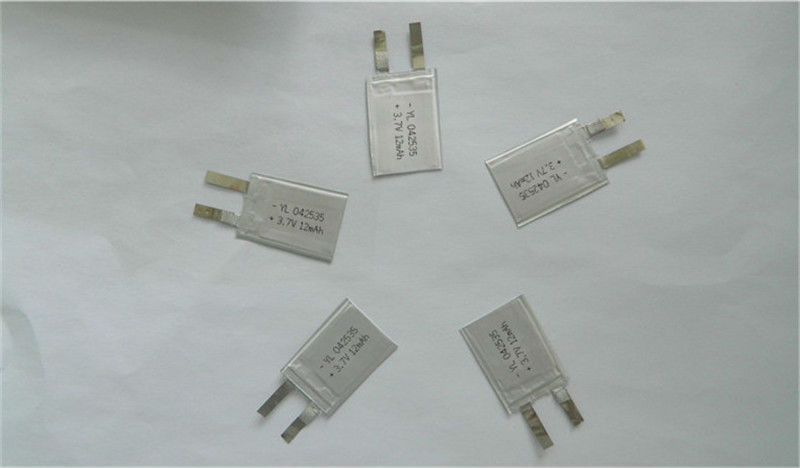

3.7v Thin Rechargeable Lithium Polymer Battery for All Kind of Card
Model No.:
YL042535
Brand:
Yilink
Size:
4*25*35mm
Port:
Shenzhen, Hong Kong
Type of Payment:
L/C,T/T,MoneyGram,Paypal,Western Union
Minimum Order Quantity:
5000
Nominal Capacity:
12mah
Package:
Yes
Customised:
Yes
Type:
Li-ion
Description
Contact Supplier
Description
1.Typical Capacity :12mah
2.Nominal Voltage:3.7V
3.End Voltage:2.75V
4.Charging Current (Std.):0.2C
5.Charging Current (Max.):0.5C
6.Charging Voltage:4.2±0.03V
7.Charging Time (Std.):about 5 hours
8.Discharging Current (Std.):0.2CA
9.Discharging Current (Max.):0.5CA
10.Operating temperature:0~45℃
11.The cell size:4*25*35mm
12.The anode material:LiCoO2
13.Size:Custom
14.Quality:Grade A cells
15.certificate & test report:CE/ROHS/KC/FCC/UN38.3/MSDS
16.Storage temperature:-10℃~45℃
2.Nominal Voltage:3.7V
3.End Voltage:2.75V
4.Charging Current (Std.):0.2C
5.Charging Current (Max.):0.5C
6.Charging Voltage:4.2±0.03V
7.Charging Time (Std.):about 5 hours
8.Discharging Current (Std.):0.2CA
9.Discharging Current (Max.):0.5CA
10.Operating temperature:0~45℃
11.The cell size:4*25*35mm
12.The anode material:LiCoO2
13.Size:Custom
14.Quality:Grade A cells
15.certificate & test report:CE/ROHS/KC/FCC/UN38.3/MSDS
16.Storage temperature:-10℃~45℃
