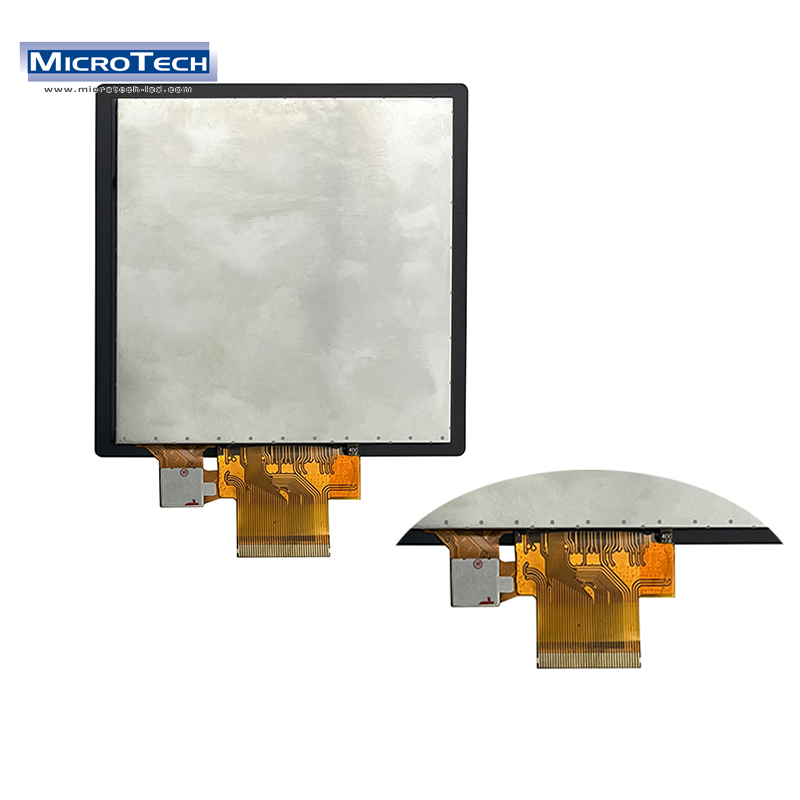

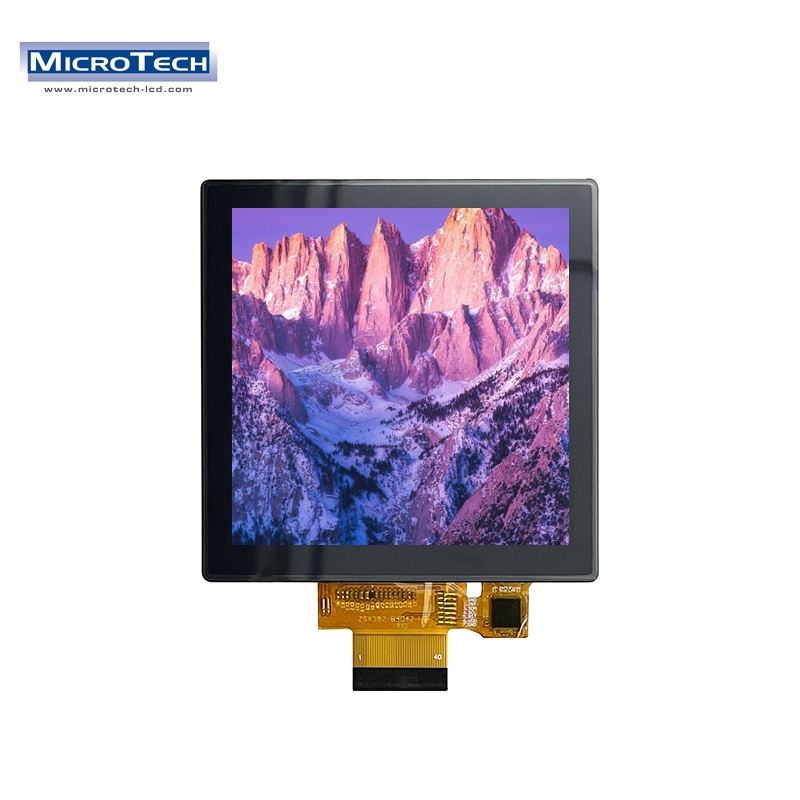

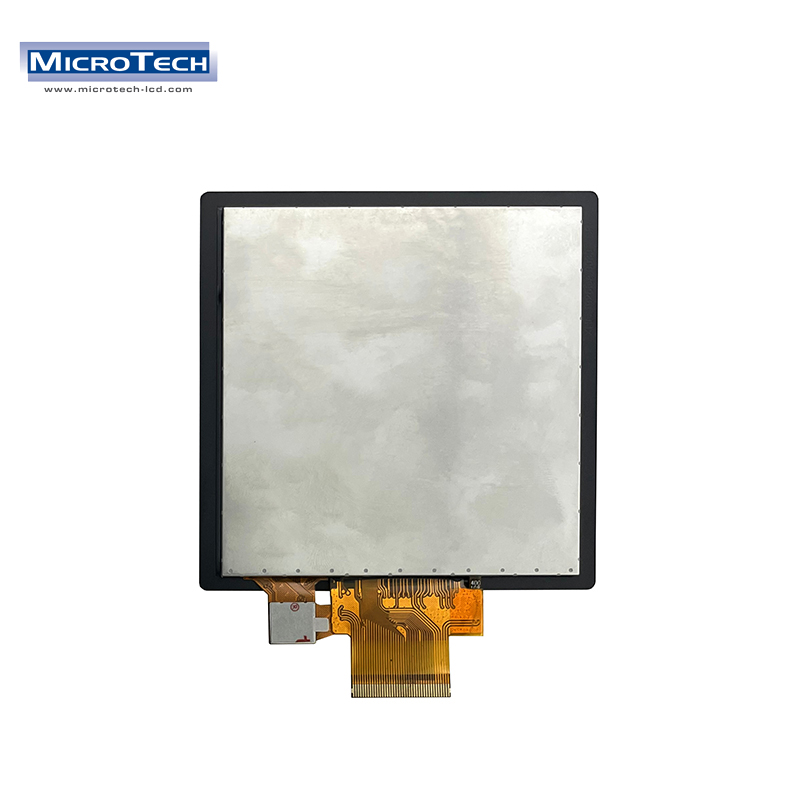

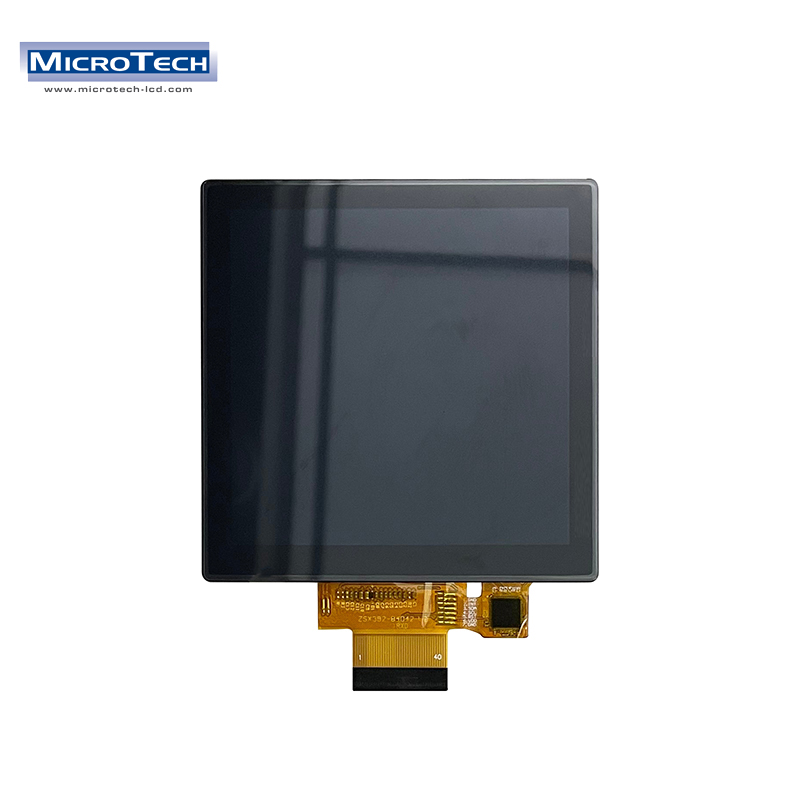

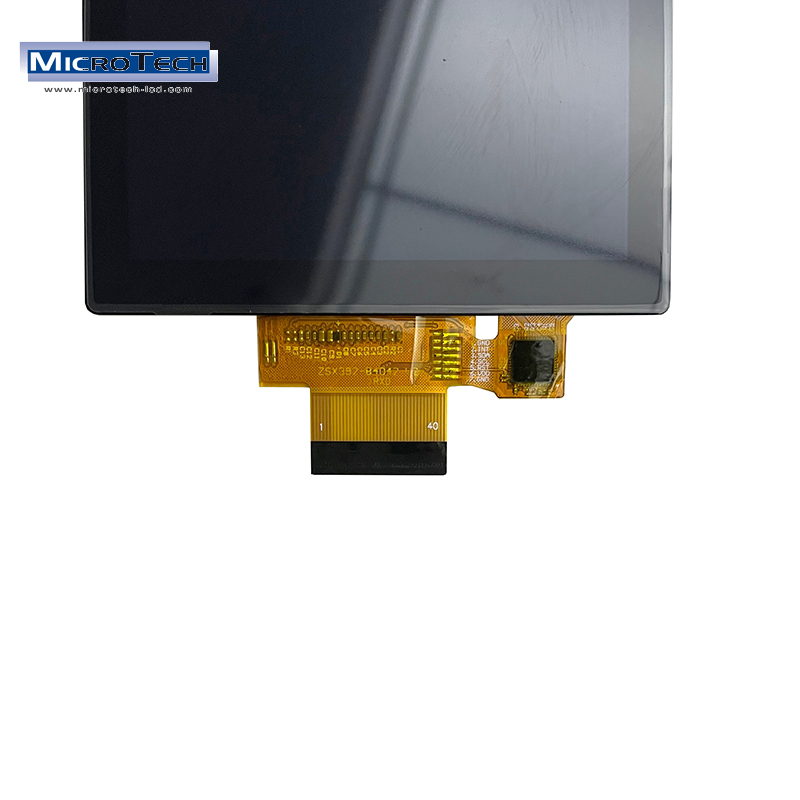

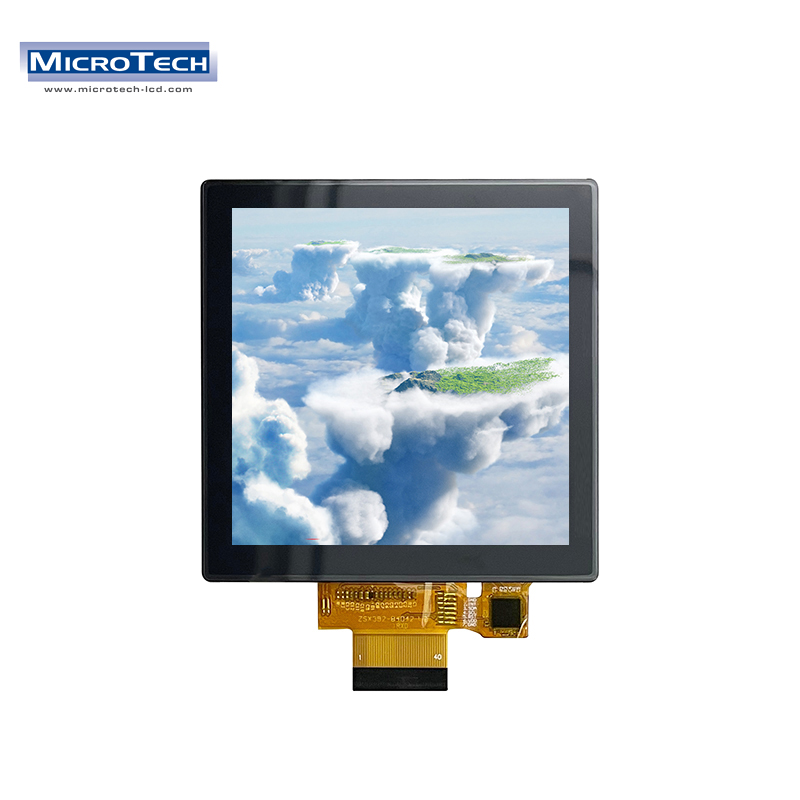

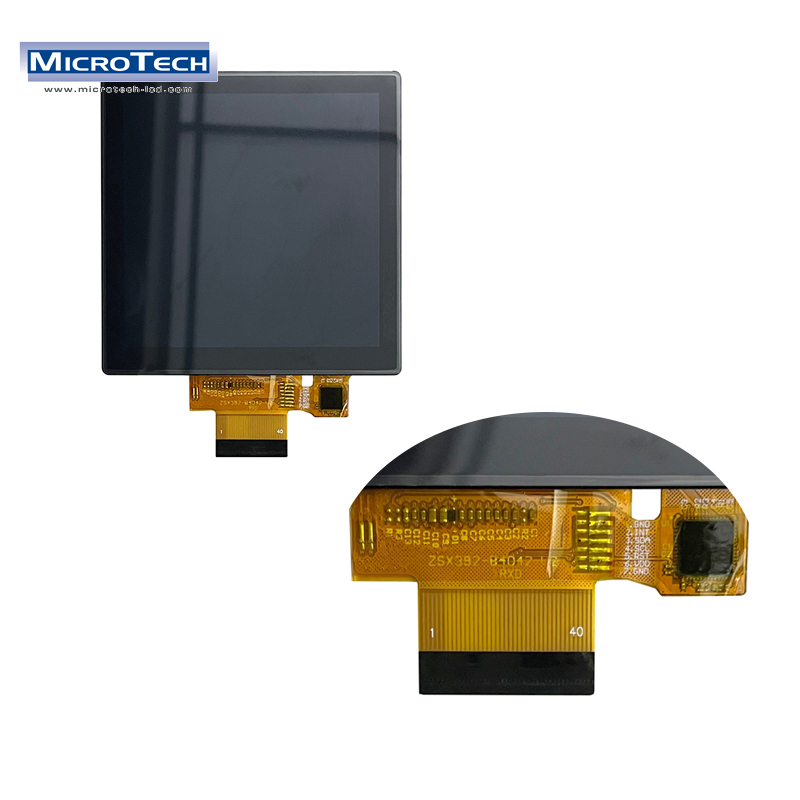

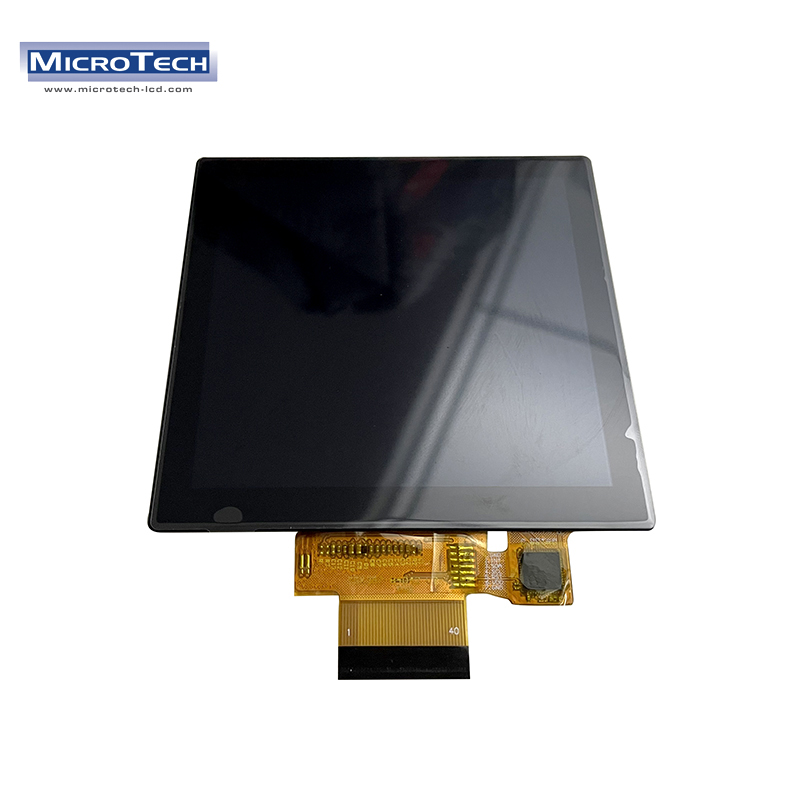

3.92 inch LCD Touch Screen 4 inch Fully Bonded Assembly 320*320 SPI/RGB /MCU Interface with CTP

US $10.00 - US $15.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTZ039QH02A-V1

Customised:

Yes

Size:

3.92inch

Description

Contact Supplier

3.92 inch LCD Touch Screen 4 inch Fully Bonded Assembly 320*320 SPI/RGB /MCU Interface with CTP

MTZ039QH02A-V1 is a color active matrix TFT LCD Q-panel using amorphous silicon TFT„s (Thin Film Transistors) as an active switching devices. This Q-panel has a 3.92 inch diagonally measured active area with Z2 resolutions (320 horizontal by 320 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this Q-panel can display 16.7Mcolors.

Parameter	Value	Unit
Size	3.92 inch
Module outline (W x HxD)	76.727X74.86X3.33mm (Including the thickness of TP)
Active area (WxH)	71.136X69.824mm
Display Resolution	320X320	pixels
Pixel Arrangement	RGB Vertical stripe	—
Display colors	16.7M	COLORS
Display Mode	Normally Black
Interface Type	MCU/SPI	—
Power Supply Voltage	2.8/3.2	V
Back-light	White LED*10	pcs
Driver IC	ILI9488
