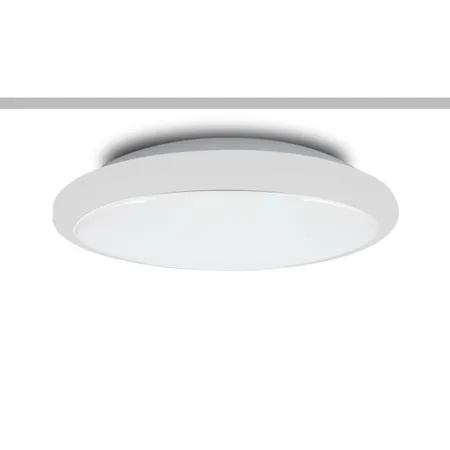

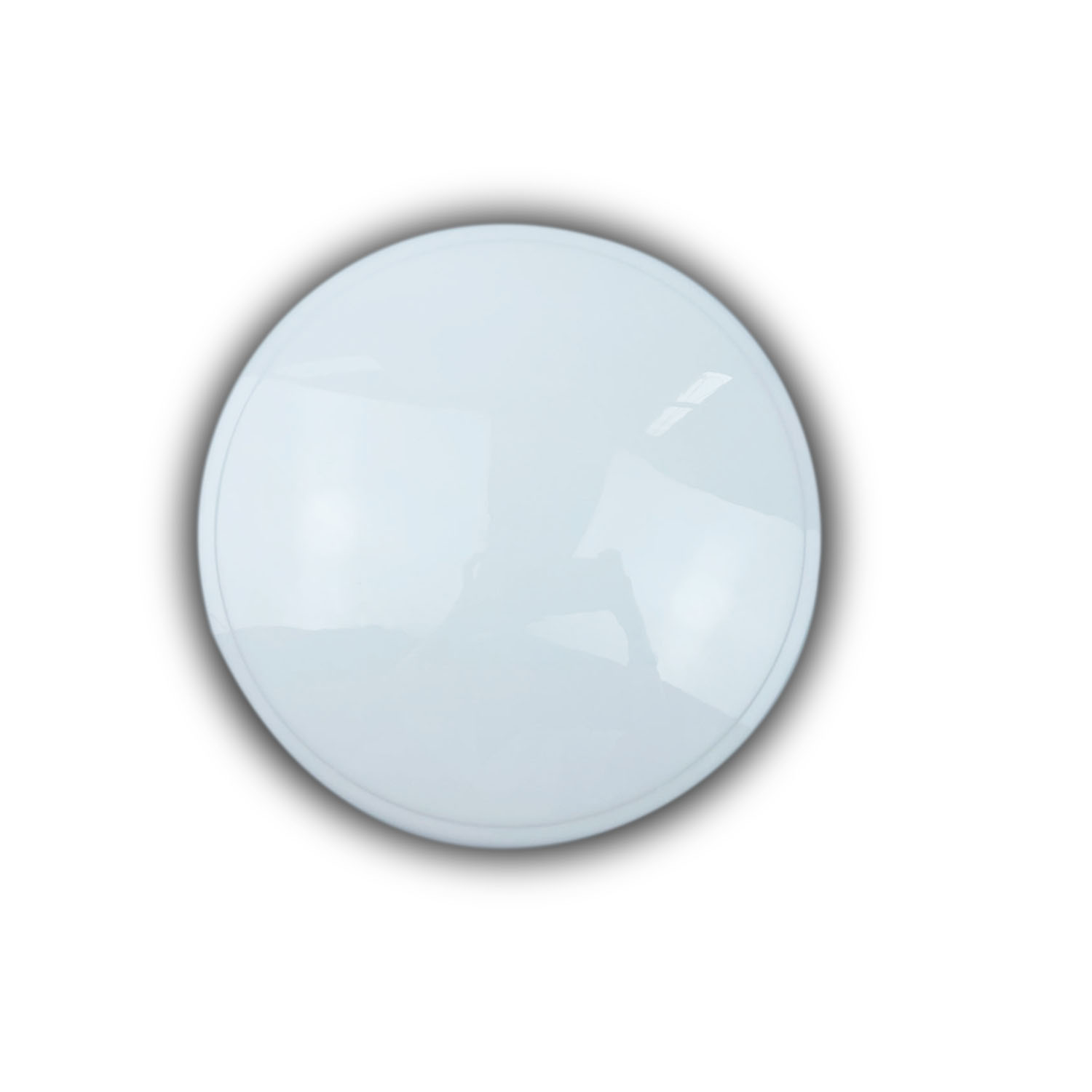

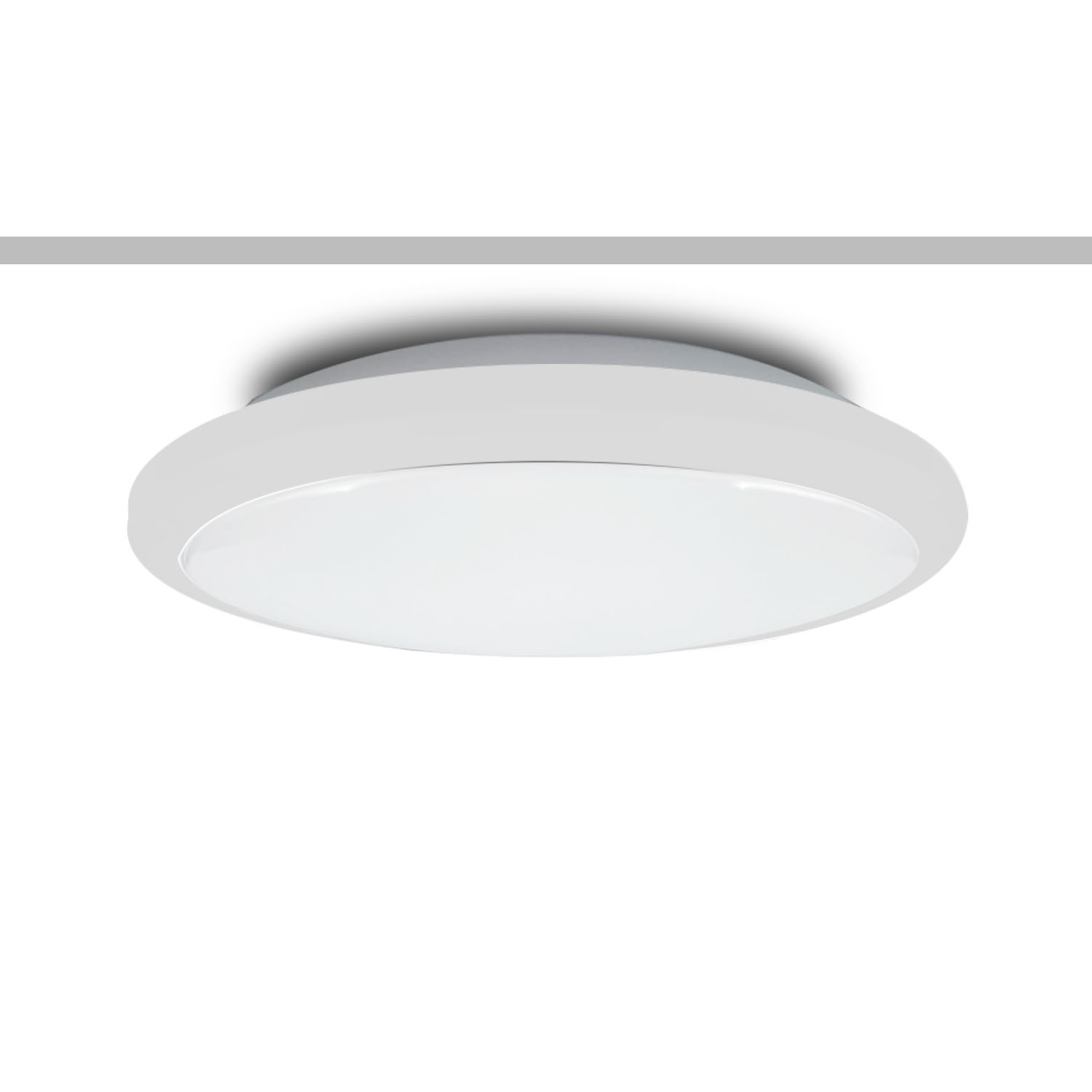

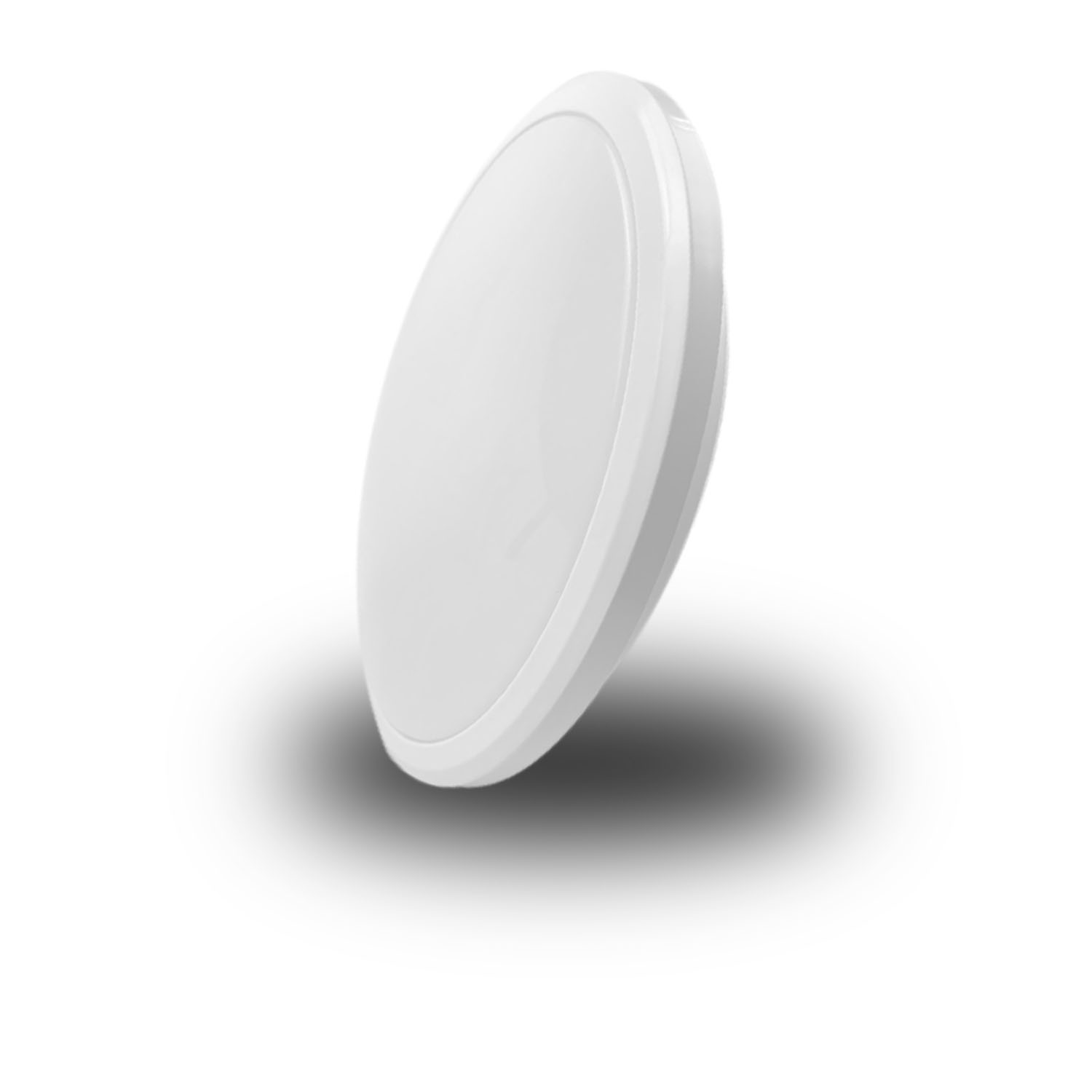

3 CCT LED Ceiling Light

Production Lead Time:

20-35 day(s)

Shipping Method:

Air Freight, Sea Freight, Express

Model No.:

CL02

Brand:

SIMONS

Customised:

Yes

Power:

20W, 24W, 25W, 30W, 40W, 45W, 50W

Lumens Efficiency:

80-120lm/w

PF:

>0.9

CRI:

RA 80, 90

CCT:

3-CCT, Single CCT (3000K-6000K)

IP Rating:

IP54

Working Temperature:

-20~50℃

Material:

Aluminum

LED Chip:

SMD 2835

Light Body Colour:

White

Installation:

Recessed

Working Frequency:

50/60HZ

Lifetime:

30000Hrs

Application:

Office, Shop, Family etc

Certification:

SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80

Origin:

Xiamen, China

Description

Contact Supplier

Features

1. Select colour temperature with DIP switch 3000K/ 4000K/ 6000K

2. Optional to dimmable and non-dimmable

3. Built-in micro-wave sensor available

4. Dimmer type: Triac, 0-10V, DALI / DSI, Smart Wifi/ Tuya smart

5. IP54 waterproof design and can be assembled on the outdoor porch

6. 3 difference size as options

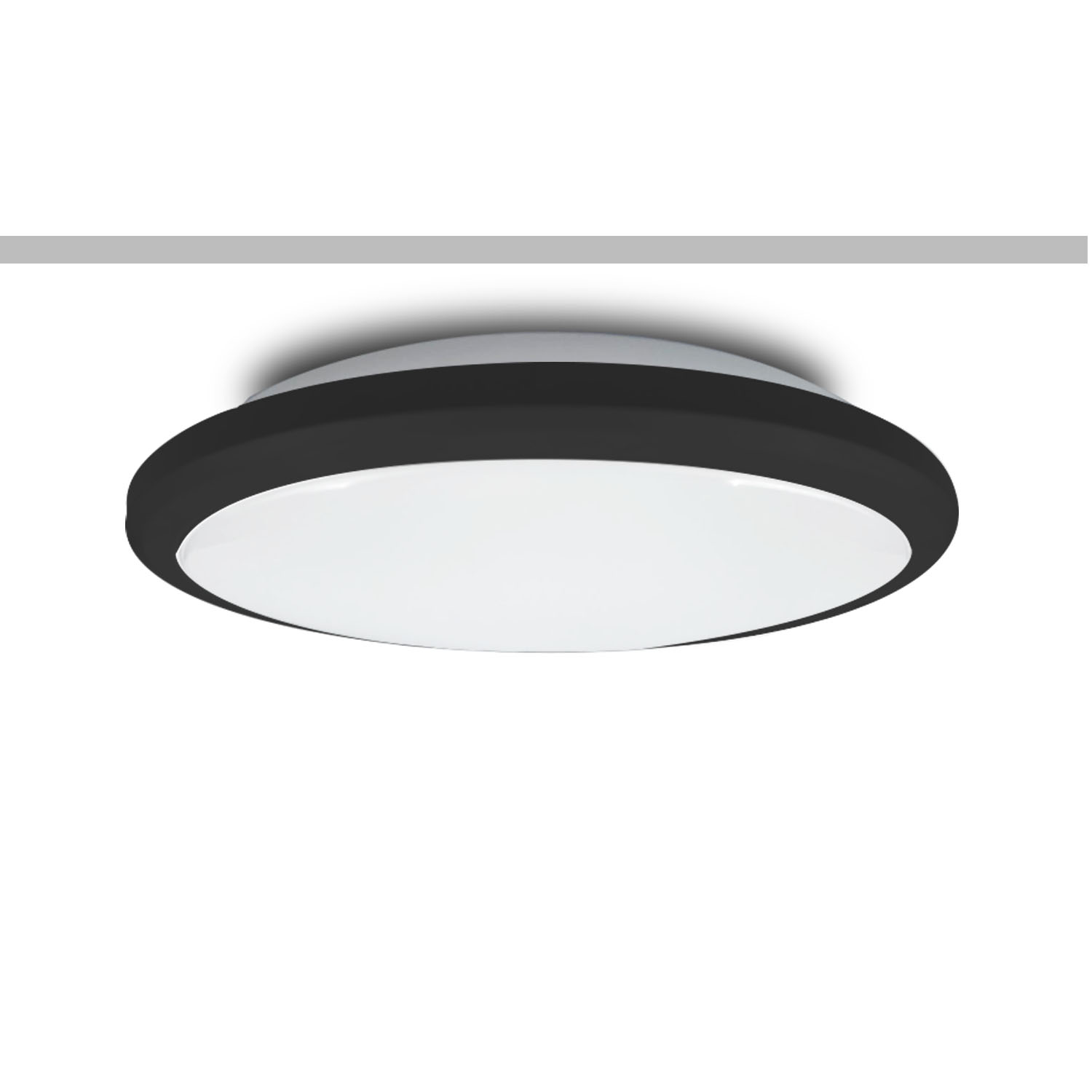

7. Optional to white, black, silver, golden body finishing

8. High efficiency SMD LED chips, CRI>80

9. SAA, C-Tick, CE, LM79,TM21,LCP, ISTMT can be provided

Models

Model	Power	Diameter	Luminous Efficiency	Luminous	Dimmable	CCT
SM-CL02-01-20	20W	285mm	80-100lm/w	1600-2000lm	Optional	3-CCT, Single CCT
SM-CL02-01-24	24W	285mm	80-100lm/w	1920-2400lm	Optional	3-CCT, Single CCT
SM-CL02-02-25	25W	365mm	80-100lm/w	2000-2500lm	Optional	3-CCT, Single CCT
SM-DL02-02-30	30W	365mm	80-100lm/w	2400-3000lm	Optional	3-CCT, Single CCT
SM-DL02-02-35	35W	365mm	80-100lm/w	2800-3500lm	Optional	3-CCT, Single CCT
SM-DL02-03-40	40W	500mm	80-100lm/w	3200-4000lm	Optional	3-CCT, Single CCT
SM-DL02-03-45	45W	500mm	80-100lm/w	3600-4500lm	Optional	3-CCT, Single CCT
SM-DL02-03-50	50W	500mm	80-100lm/w	4000-5000lm	Optional	3-CCT, Single CCT
