3 CCT LED Downlight
Share this page
Production Lead Time:
20-35 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Model No.:
DL03-F
Brand:
SIMONS
Input Votage:
220-240V
Power:
8W, 9W, 10W
PF:
>0.9
CRI:
RA 80, 90
IP Rating:
IP44
CCT:
Single Color (3000K-5000K), 3 CCT
LED Chip:
SMD 2835
Light Body Colour:
White, Black
Installation:
Recessed
Fascia:
Flat
Working Frequency:
50/60HZ
Lifetime:
30000Hrs
Application:
Office, Shop, Family etc
Certification:
SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80
Origin:
Xiamen, China
Description
Contact Supplier
Description

Short Description

  • High thermal conductivity plastic housing, excellent heat dissipation performance, IC-4 rated light. Elegant appearance of the light and can replace former die-casting aluminum downlight. SAA, C-tick, LM79, LM80, TM21 are all ready for you.


Features

1. IC-4 rated, V-0 flame rating on the housing.

2. Tri-colour on the light to help you to reduce the stock quantities.

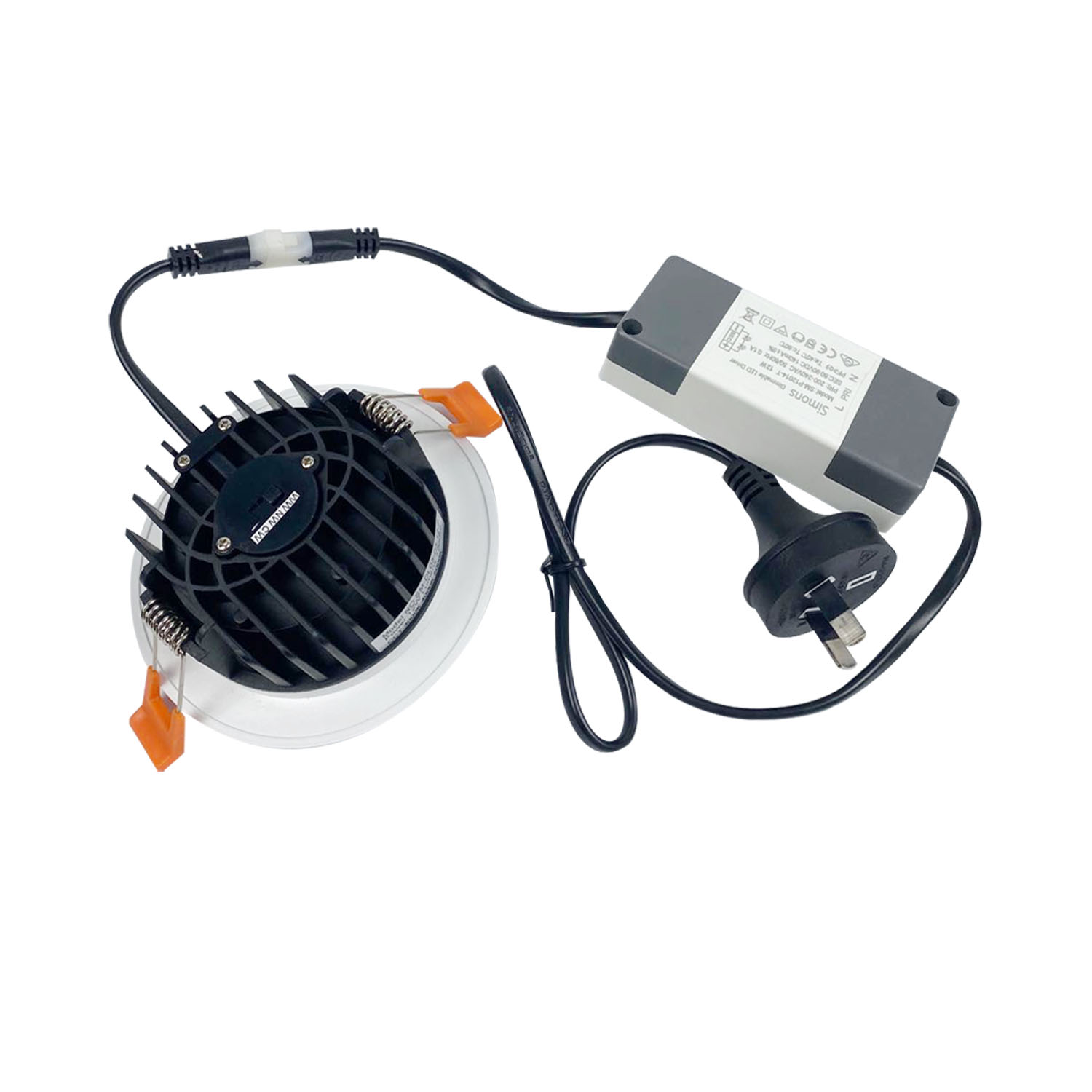

3. 220-240V built-in driver, integrated design.

4. Excellent dimming performance, can suitable for most of brand dimmers except trailing-edge dimmer

5. Warranty: 3 years

6. L70 to 30000hrs.

7. High light transmittance, can up to 100lm/w

8. Aluminum coated plastic material, have high heat dissipation, IC-4 rated.

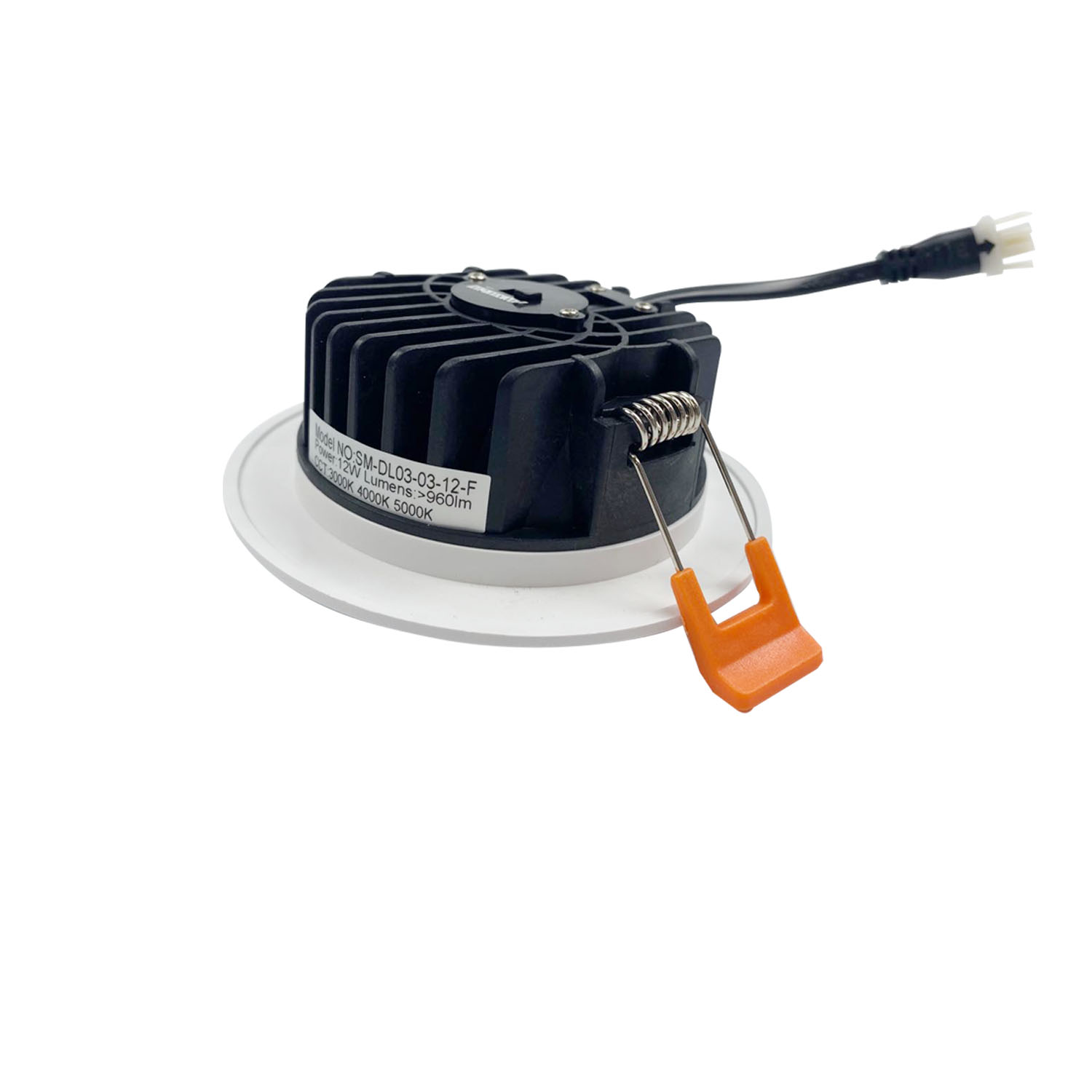

9. 3 CCT switcher on the back of the light, then CCT can be customized based on your requirement.

10. Slim and elegant appearance, can better fit for your celling.

11. A metal fascia can be assembled on the light, black, silver, satin chrome, nickel are all optional here.


Models

Model

Power

Cut-out

Diameter

Height

SM-DL03-03-8-F

8W

90mm

108mm

38mm

SM-DL03-03-9-F

9W

90mm

108mm

38mm

SM-DL03-03-10-F

10W

90mm

108mm

38mm
