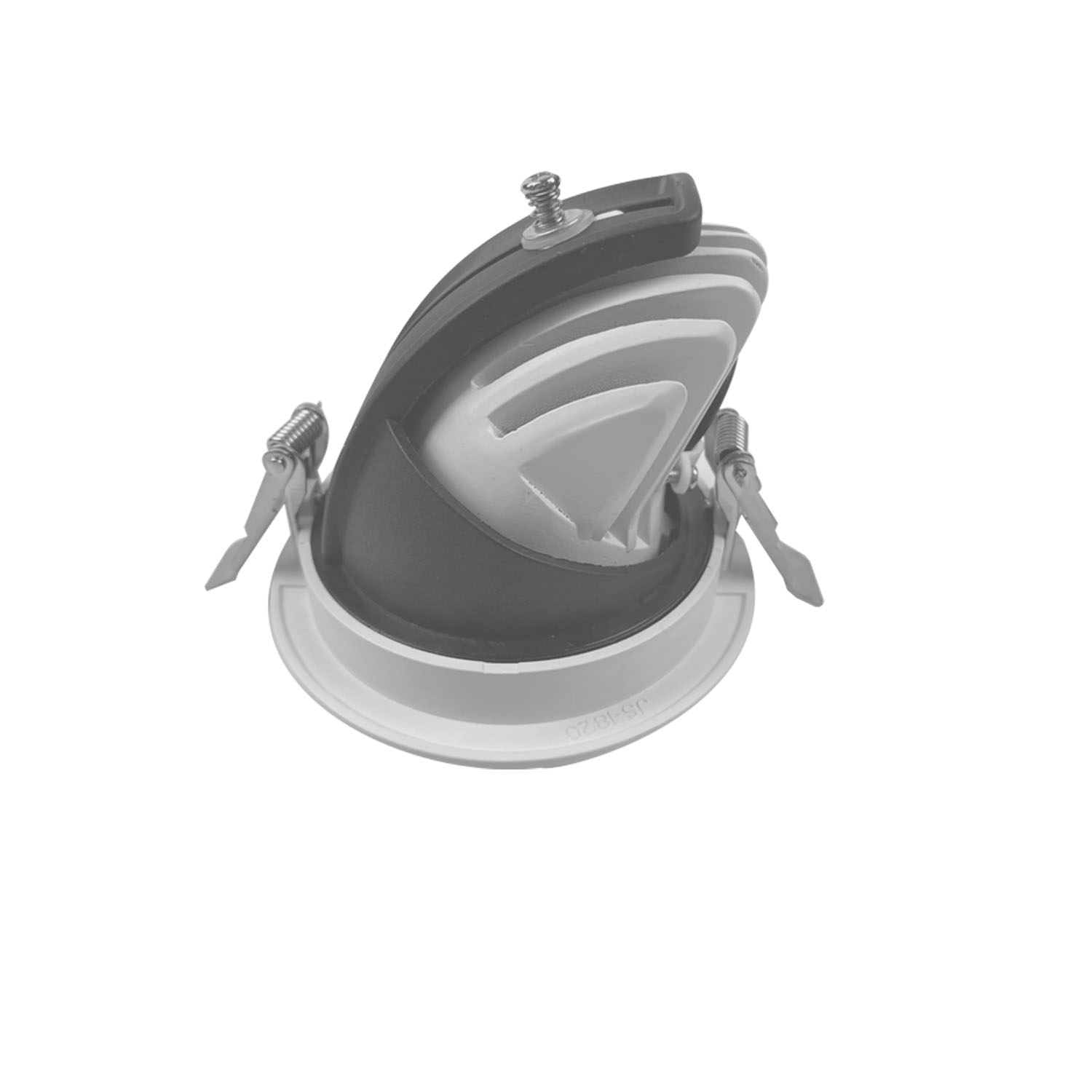

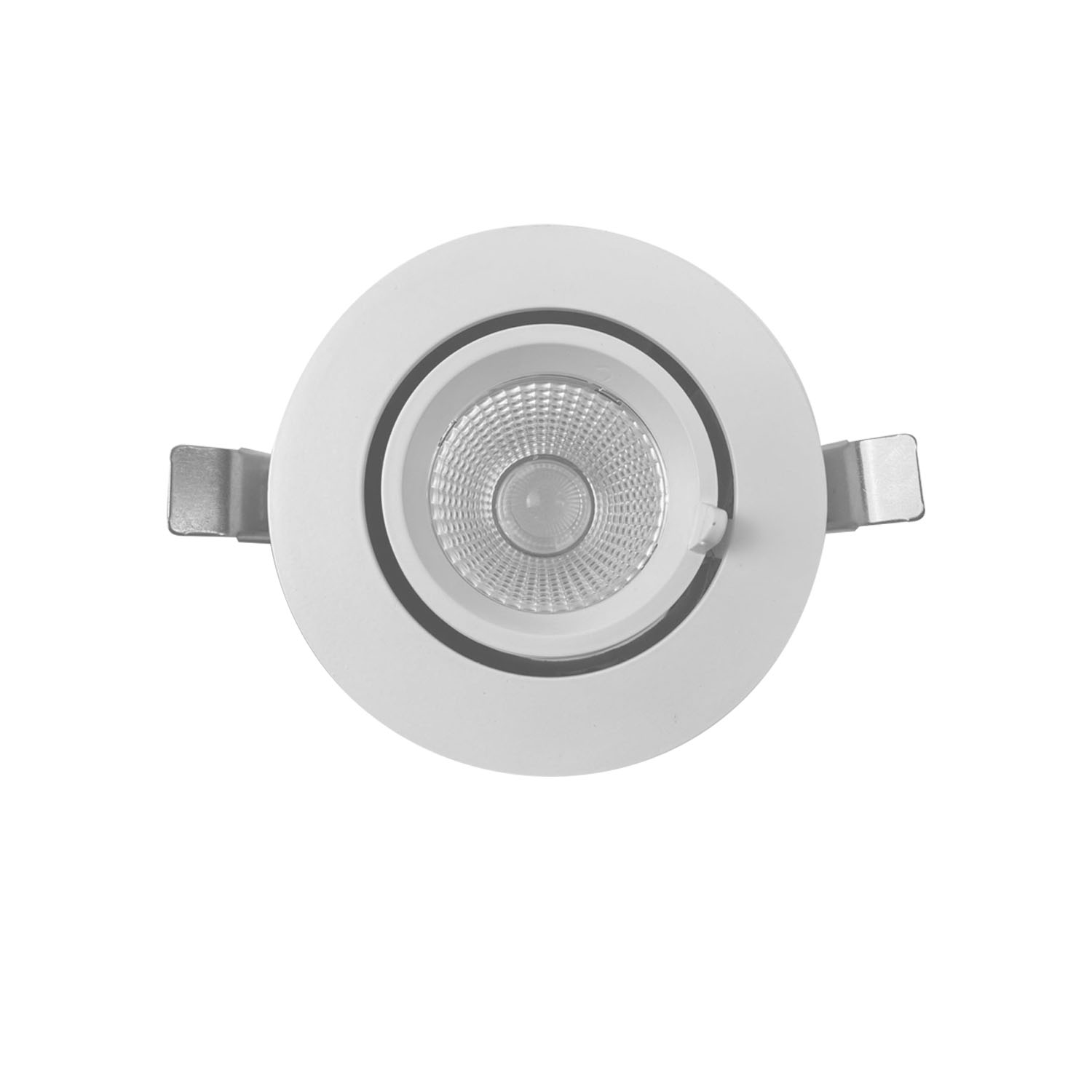

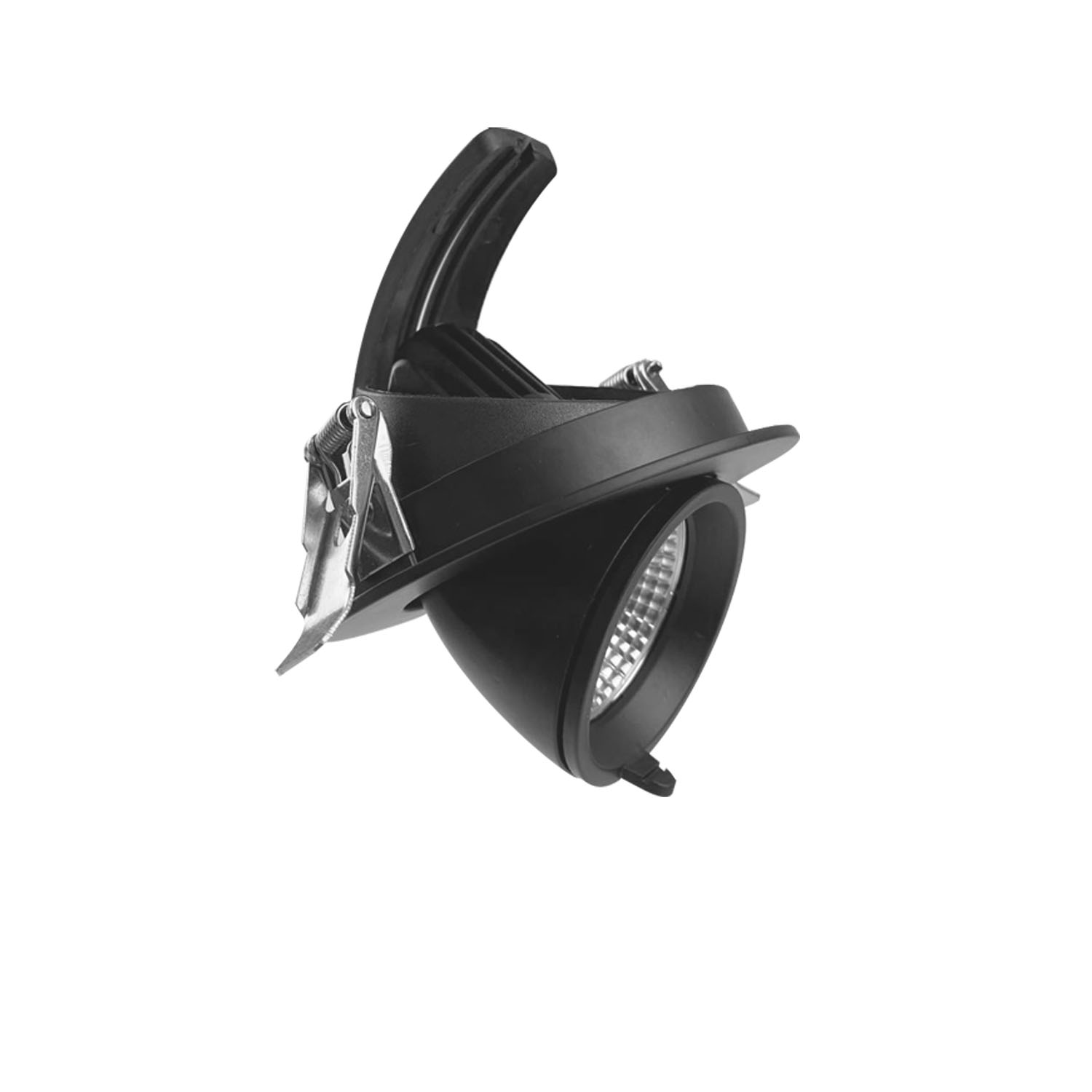

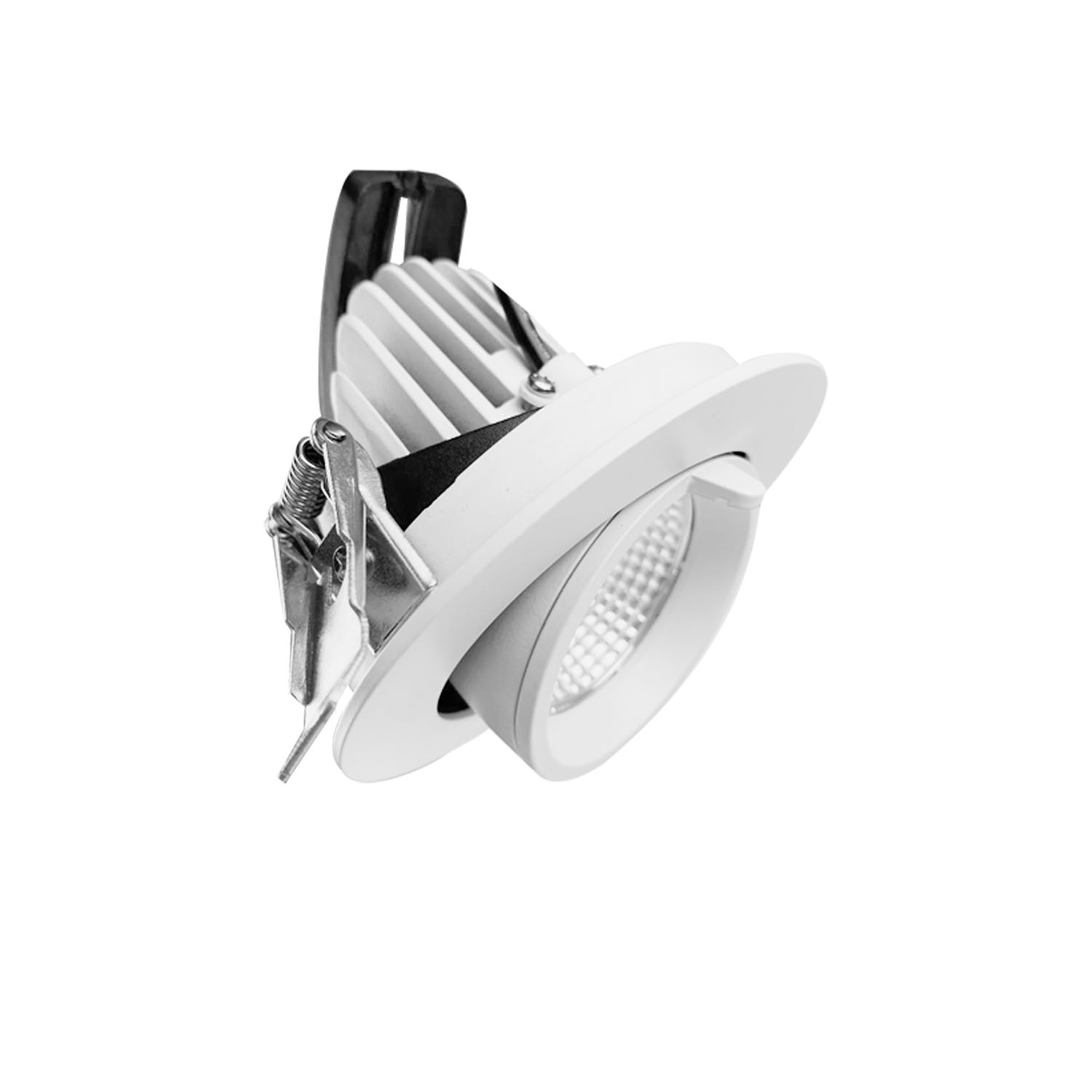

3 CCT LED Downlight
Production Lead Time:
20-35 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Model No.:
DL05
Brand:
SIMONS
Customised:
Yes
Input Voltage:
220-240V
Power:
10W, 12W, 15W, 18W, 20W, 25W, 28W, 30W, 35W, 40W
PF:
>0.9
CRI:
Ra 80, 90, 95
Beam Angle:
15º, 24º, 38º
Lumens Efficiency:
80-90lm/w
Material:
Die-casting Aluminum
Cover:
Lens
IP Rating:
IP20
CCT:
Single Color (3000K-5000K), 3 CCT
LED Chip:
COB
Working Temperature:
-20~50℃
Light Body Colour:
White, Black
Installation:
Recessed
Working Frequency:
50/60HZ
Lifetime:
30000Hrs
Application:
hotel, receiption, shop, office, mall, restaurant, bar etc
Certification:
SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80
Origin :
Xiamen, China
Description
Contact Supplier
Description
Features
1. Durable die-cast aluminium body profile
2. Excellent matt white powder coat finish
3. The bracket mechanism ensures optimum tilting function 60º (-15º ~ +45º) and rotating 340º
4. High output COB LED chip, beam angle 38 degree standard, optional 15 degree, 24 degree
5. High performance optical lens with a changeable multi-reflector system

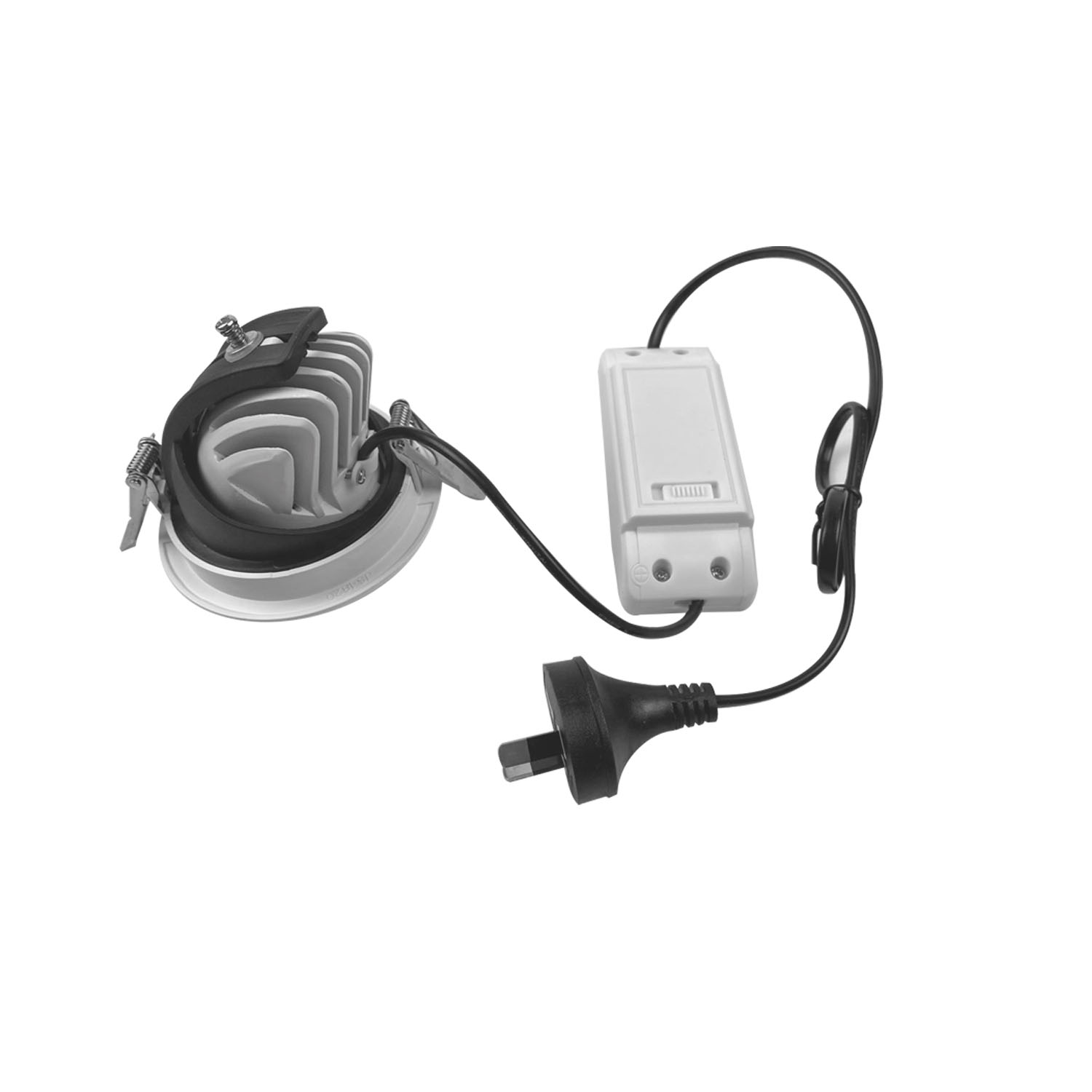

6. Constant current trailing edge dimmable and non-dimmable driver configurations fitted with flex and plug.
7. Dimmer Type: Trailing edge, 0-10V, DALI / DSI, Smart Wifi/ Tuya app
8. 3-CCT function is optional, CCT smooth adjustable switch on the driver.
9. IP20 protection degree for indoor use
Models
Model | Power | Cut-out | Diameter | Height |
SM-DL05-03-10 | 10W | 90mm | 102mm | 80mm |
SM-DL05-03-12 | 12W | 90mm | 102mm | 80mm |
SM-DL05-03-15 | 15W | 90mm | 102mm | 80mm |
SM-DL05-04-18 | 18W | 110mm | 125mm | 108mm |
SM-DL05-04-20 | 20W | 110mm | 125mm | 108mm |
SM-DL05-05-25 | 25W | 125mm | 140mm | 115mm |
SM-DL05-05-28 | 28W | 125mm | 140mm | 115mm |
SM-DL05-05-30 | 30W | 125mm | 140mm | 115mm |
SM-DL05-06-35 | 35W | 145mm | 160mm | 135mm |
SM-DL05-06-40 | 40W | 145mm | 160mm | 135mm |
SM-DL05-07-55 | 55W | 175mm | 190mm | 135mm |
SM-DL05-07-60 | 60W | 175mm | 190mm | 135mm |
