3 Phase Common Mode Choke

Production Lead Time:

3 day(s)

Model No.:

LF-TR421800-001R

Brand:

XP POWER

Port:

Shanghai

Type of Payment:

T/T, L/C

Minimum Order Quantity:

1,000 piece(s)

Package:

Yes

Customised:

Yes

Description

Contact Supplier

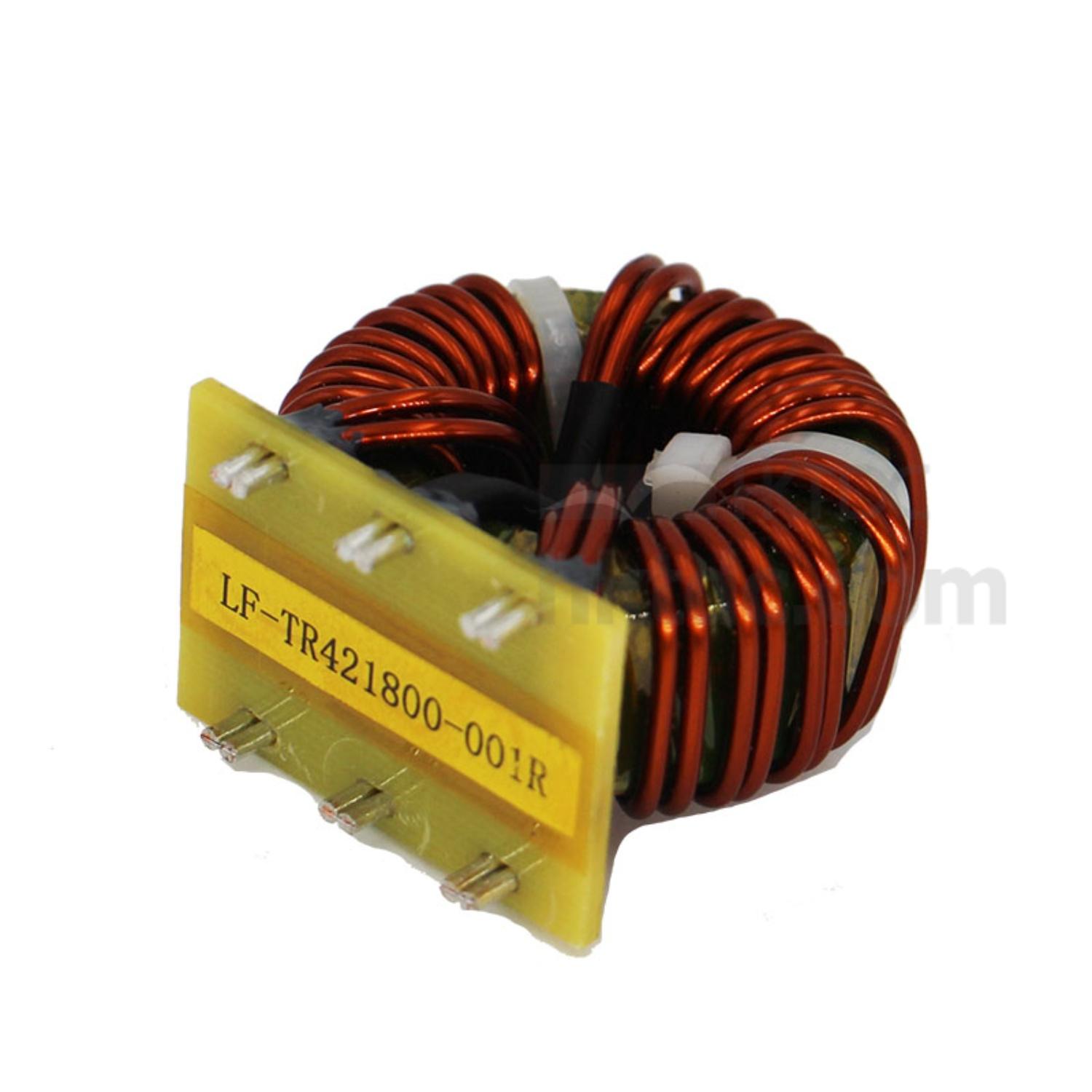

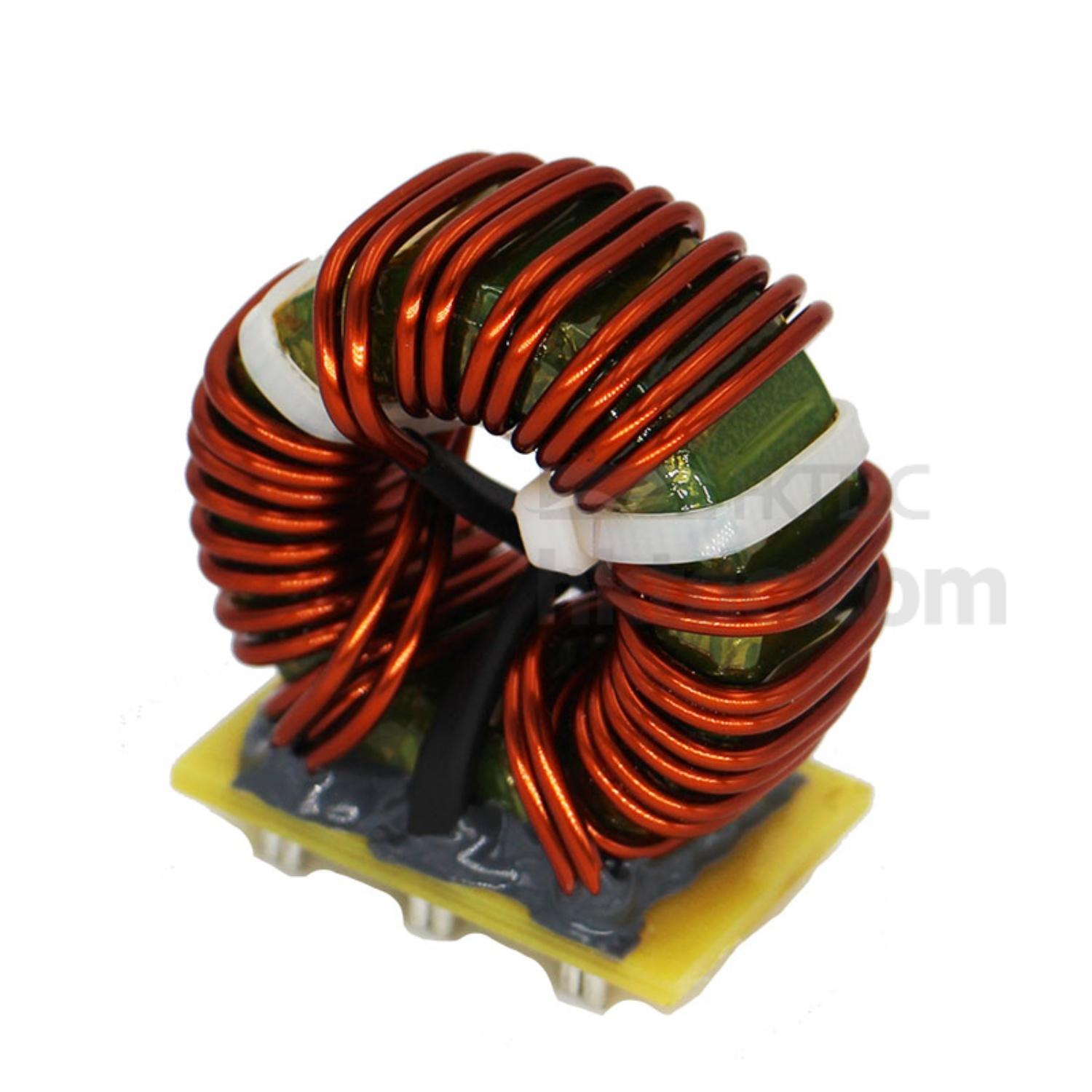

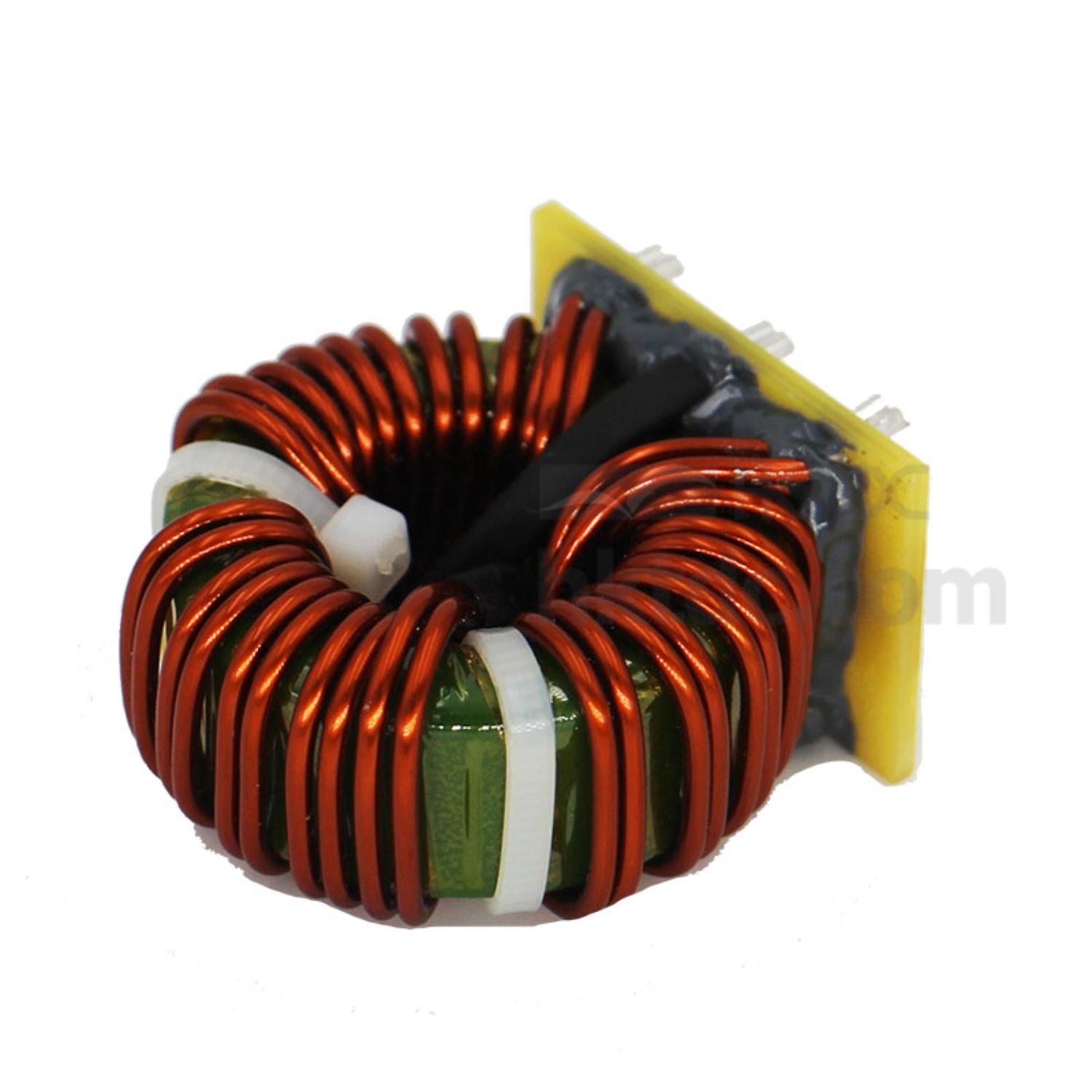

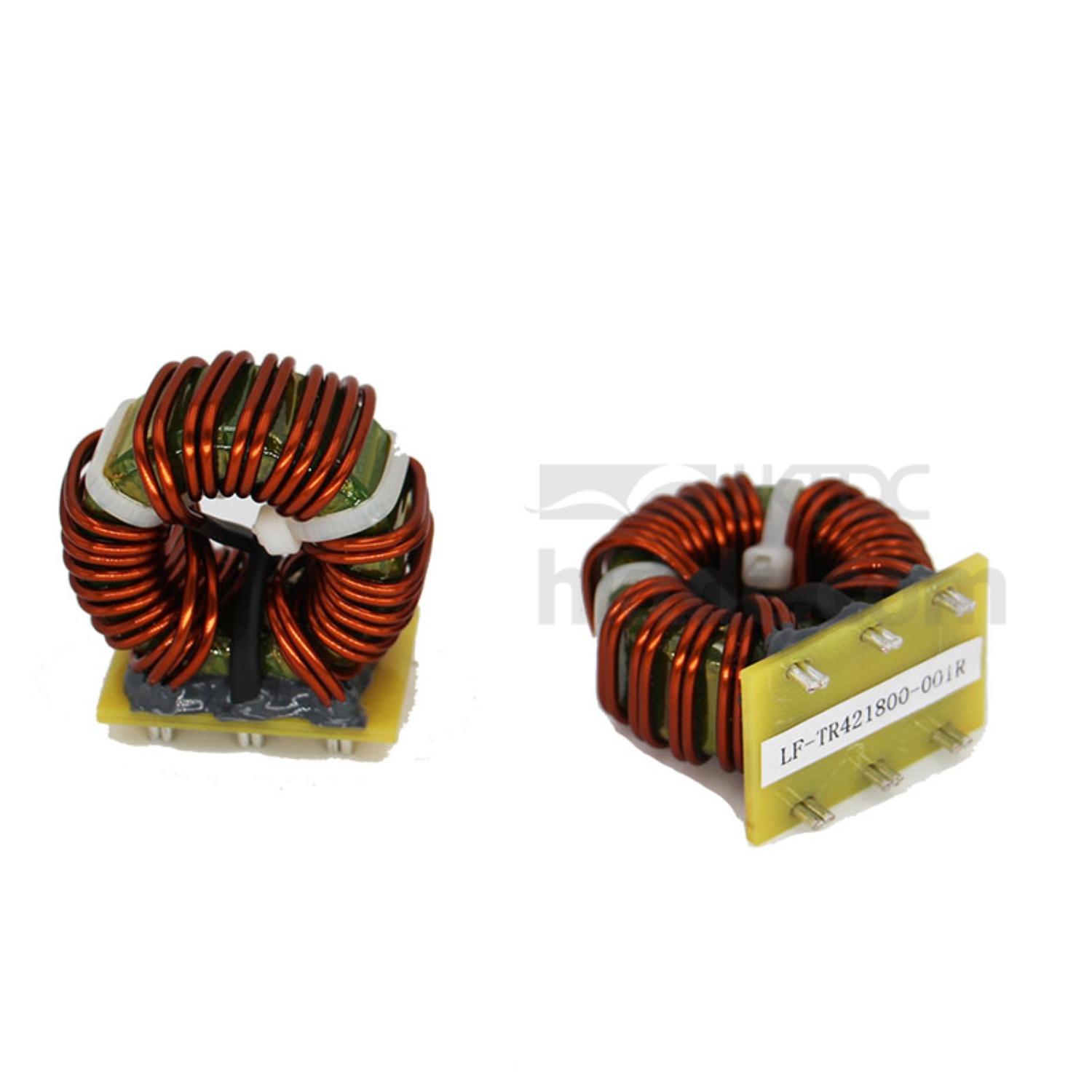

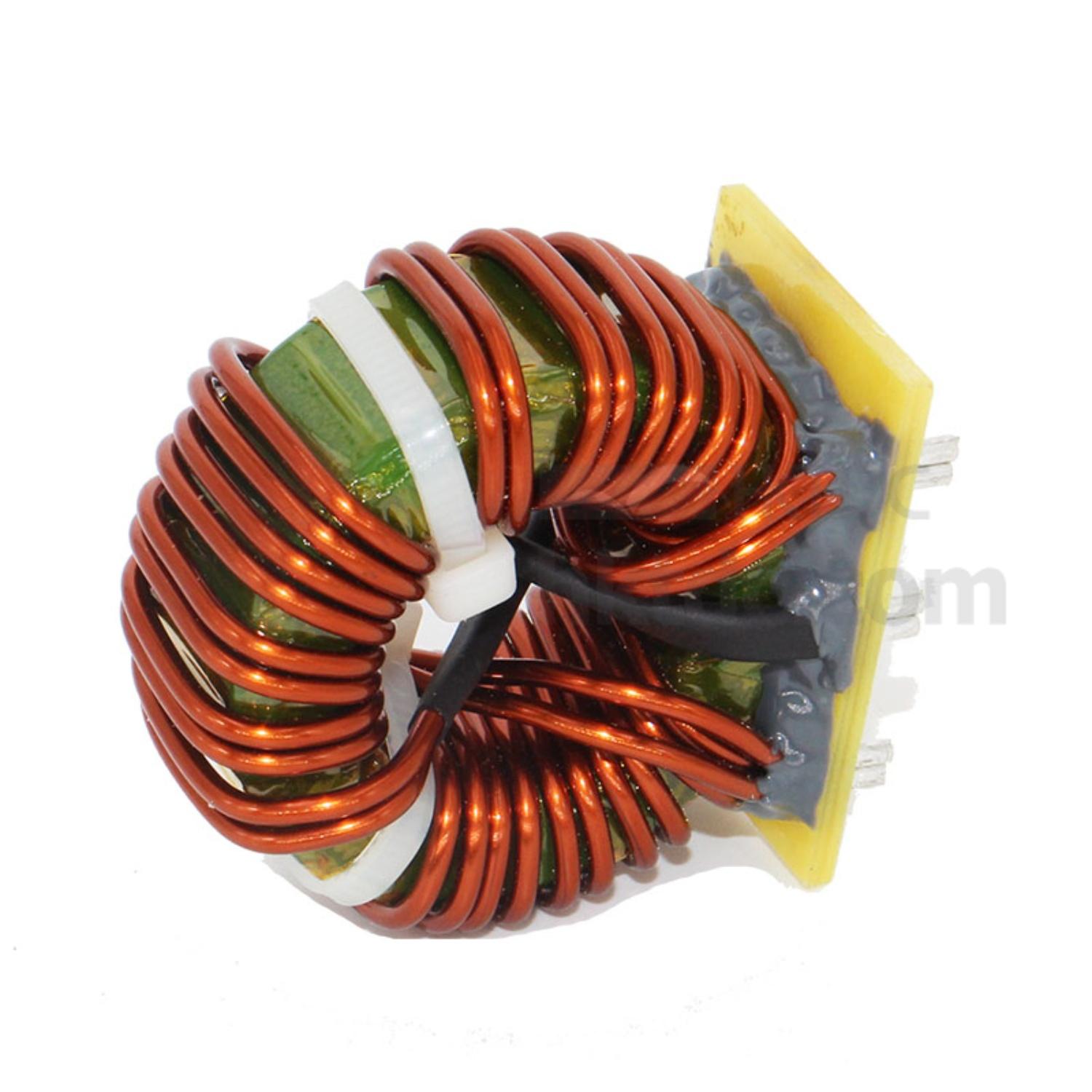

3 Phase Common Mode Choke with Mn-Zn Ferrite Core

Separated windings for minimum interwinding capacitance
Single layer windings for highest common mode impedance over the widest frequency range
Suitable for 50Hz to 500 KHz
Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
All materials used are UL94-VO recognized
Operating temperature: ﹣55℃ to +105℃
Available in either vertical or horizontal mount
Available in vertical header mount for ease in PCB assembly
Easy FR-4 board mounting Good vibration resistance
Low Frequency AC Reactor, Solar Power System, Power Conditioning System, Wind Power System, Automatic Drive Machine, Induction Heater, Welding Machine, Paper Industries, RFI Suppression Choke, DC/DC converters, IP and OP devices.
