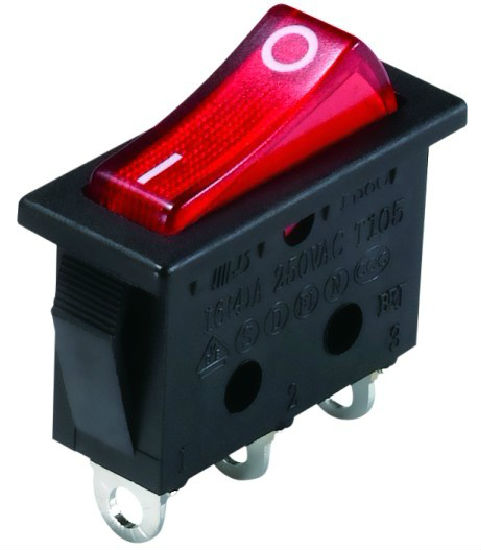

3 Pin Illuminated Switch
Model No.:
PS8C-6-B1R3-2S-00
Brand:
BEJ
Colour:
Red Light, Black Housing
Package:
Yes
Operating Temperature:
-20 - - 105
Max. Current:
16A
Mechanical Life:
100000 cycles
Max. Working Pressure:
700gf
Description
Contact Supplier
Description
3 Pin Illuminated Switch with UL, VDE safety approval
- 25 years manufacturing experience
- Comply with ROHS/HF directive
- Design as requirement
- SPECIFICATION
- Rating 16A 250VAC 20A 125VAC
- Initial Contact Resistance 50mΩ max.
- Insulation resistance 100MΩ
- Withstand voltage 1500VAC for terminal to terminal 1 minute 3000VAC for terminal to body 1 minute
- Mechanical life 100000 cycles
- Electrical life 10000 cycles
- Working temperature 105
- Working force 700±300gf
- Main material Body : PA66 Actuator : PA66 or PC
- Terminals and movable contact : Brass
- Certificates UL, VDE, ENEC, CQC, cUL
