3 in 1 Soldering Station
Share this page
Production Lead Time:
3 day(s)
Model No.:
LW8503D
Brand:
LW/longwei
Port:
Yantian
Type of Payment:
T/T, Western Union
Minimum Order Quantity:
1 piece(s)
Customised:
Yes
Description
Contact Supplier
Description

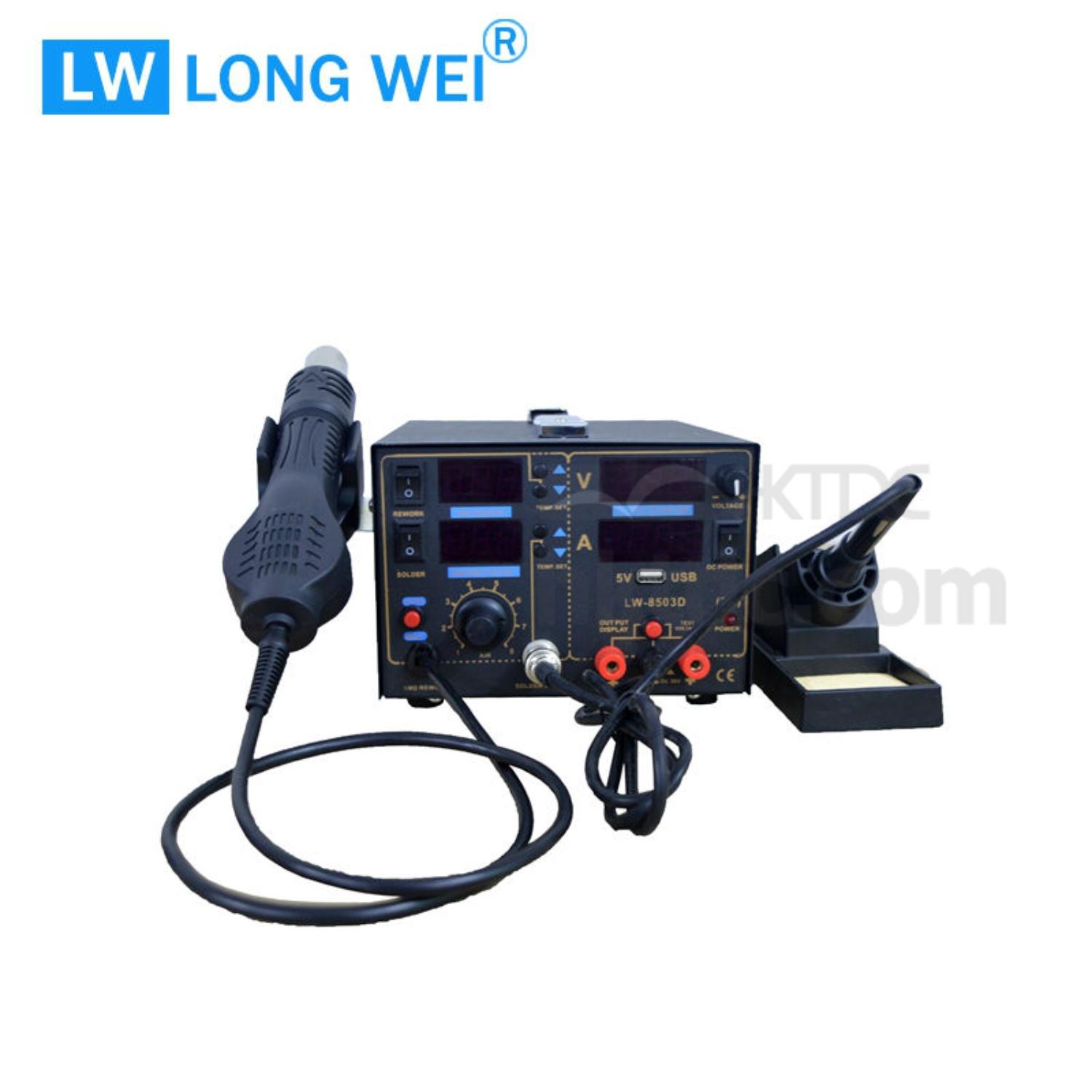

3 in 1 soldering station hot air gun and dc power supply
Specification
  • Machine max power:≤800W
  • Working temperature:0~40℃/32~104℉
  • Storage temperature:-20~80℃/-4~176℉
  • Storage humidity:35%~45%
  • Weight&Size:3.95kg   L235*W186*H124mm ±5mm
  • Hot air
  • Power:650W
  • Air type:Brushless fan is a gentle wind
  • Air flow:≤120L/min
  • Temperature range:100℃~480℃/212℉~896℉
  • Temperature stability:±1℃(static)
  • Display:digital
  • Soldering station
  • Power:60W
  • Temperature range:200℃~480℃/392℉~896℉
  • Temperature stability:±2℃(static)
  • Tip over the ground voltage:﹤2mV
  • Tip over the ground pressure resistance:﹤20hm
  • Power supply
  • Power:30W
  • Output voltage:DC0V~15V±10%
  • Load stability:﹤0.01±2mv
  • Temperature coefficient:﹤300ppm/℃
  • Ripple noise:﹤1mvrms(valid value)
  • Output current:DC 1mA-2A±10%
Other function
  • USB output: DC 5V1A
  • Voltmeter:0-50VDC
  • Manual or automatic function:Yes
  • Dormancy:Yes
