| Features

Latest digital imaging technology provides accurate data and high-definition images beyond traditional desktop ultrasound machines.

3 in 1 probe can realize the transition from shallow scan to deep scan without switching.

Built-in independent Wi-Fi module, which can realize delay-free image transmission without the external network, reduce data transmission delay and improve image clarity.

The ultra-wide frequency coverage of 2.5/3.5/5/7.5/10Mhz and scanning depth of 20-305mm are suitable for whole body examination.

Ultrasound scanner software supports German, French, Italian, Portuguese, Spanish, and other languages, which also has built-in measurement packages for heart rate, rate, area, etc. The puncture function supports in-plane and out-plane and multi-angle flipping of images.

4200mAh.3.7V super-large lithium battery, standby time ≥12h, supports wired and wireless charging, carry out ultrasound scanning anytime and anywhere, improve treatment efficiency.

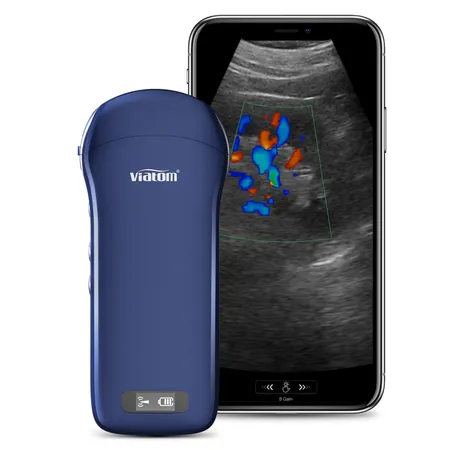

Wireless 3 in 1 Ultrasound Scanner

Triple Headed: Convex, Linear and Cardiac Probe

C10 wireless 3 in 1 portable ultrasound system is designed to simplify the use of the instrument without sacrificing functionality. 3 in 1 probe include convex probes, straight probes and cardiac probes. Doctors only need to adjust the ultrasound software to complete the probe replacement.

Convex probe: The center frequency is 3.5/5Mhz, and the scanning depth is 90-305mm. Suitable for abdominal and pelvic organ scanning, FAST scanning, pleural effusion scanning and lung ultrasound scanning.

Linear probe: The center frequency is 7.5/10Mhz, and the scanning depth is 20-80mm.Suitable for the examination of superficial organs such as breast, thyroid, lymph nodes, etc. and blood vessels such as a carotid artery, upper extremity artery, lower extremity artery and other small organs, musculoskeletal examination.

Heart probe: The center frequency is 2.5/5Mhz, and the scanning depth is 90-160mm. Suitable for cardiac ultrasonography of the heart and thoracic arteries and ultrasonography of intracranial blood vessels.

Pioneering in Wireless Technology

Based on the wifi+5G remote ultrasound diagnosis system, ultrasound doctors can remotely diagnose patients with complex diseases.

Medical staff can manage and share ultrasound scan results with patients through ultrasound software anytime, anywhere. The image supports real-time saving and arbitrary enlargement. The video resolution can reach up to 1000 frames, and supports manual and automatic playback. Doctors can save cases and print reports with one click.

It takes ultrasound scanning in medical institutions to a new level, helping medical staff to make quick and confident assessments anywhere, and also promotes better application of ultrasound medicine in primary hospitals, allowing more patients to receive economical and efficient examination and diagnosis.

Ideal solution to support Intraoperative monitoring, bedside monitoring and traditional diagnostics.
